Eaton Moeller SL7 Stacklight Parts

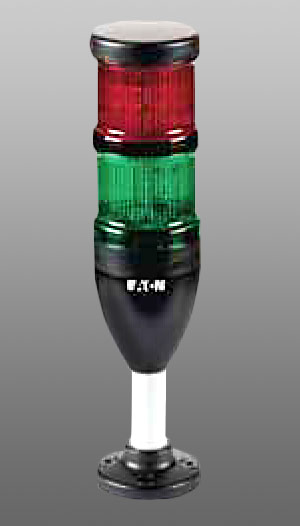

SL7-100-L-R_

SL7-100-L-R_

Complete Devices
Continuous Light, LED, UL Type 4/4X/13, IP66 (Base Module with Foot and 100 mm Tube)

Rated
Operational Voltage
(U e V) 		Number
of Modules 		Color Function Standard Pack Part Number
24 Vac/Vdc 2 Red/Green Continuous Light Symbol 1 SL7-100-L-RG-24LED
3 Red/Amber/
Green 		SL7-100-L-RAG-24LED

SL7-L_

SL7-L

Continuous Light Module with LED - UL Type 4/4X/13, IP66

Rated
Operational Voltage
(U e V) 		Color Function Standard
Pack 		Part
Number
24 Vac/Vdc Blue Continuous Light Symbol 1 SL7-L24-B
Green SL7-L24-G
Red SL7-L24-R
White SL7-L24-W
Yellow SL7-L24-Y
Amber SL7-L24-A
110/120 Vac Blue Continuous Light Symbol 1 SL7-L120-B
Green SL7-L120-G
Red SL7-L120-R
White SL7-L120-W
Yellow SL7-L120-Y
Amber SL7-L120-A
230/240 Vac Blue Continuous Light Symbol 1 SL7-L230-B
Green SL7-L230-G
Red SL7-L230-R
White SL7-L230-W
Yellow SL7-L230-Y
Amber SL7-L230-A

SL7-BL_

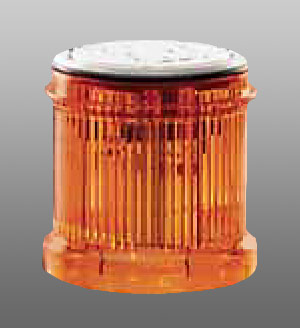

SL7-BL

Flashing Light Module with LED - UL Type 4/4X/13, IP66, 2 Hz

Rated
Operational Voltage
(U e V) 		Color Function Standard
Pack 		Part
Number
24 Vac/Vdc Blue Flashing Light Symbol 1 SL7-BL24-B
Green SL7-BL24-G
Red SL7-BL24-R
White SL7-BL24-W
Yellow SL7-BL24-Y
Amber SL7-BL24-A
110/120 Vac Blue Flashing Light Symbol 1 SL7-BL120-B
Green SL7-BL120-G
Red SL7-BL120-R
White SL7-BL120-W
Yellow SL7-BL120-Y
Amber SL7-BL120-A
230/240 Vac Blue Flashing Light Symbol 1 SL7-BL230-B
Green SL7-BL230-G
Red SL7-BL230-R
White SL7-BL230-W
Yellow SL7-BL230-Y
Amber SL7-BL230-A

SL7-FL_

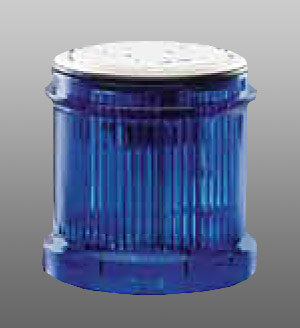

SL7-FL

Strobe Light Module with LED - UL Type 4/4X/13, IP66, 1.4 Hz

Rated
Operational Voltage
(U e V) 		Color Function Standard
Pack 		Part
Number
24 Vac/Vdc Blue Strobe Light Symbol 1 SL7-FL24-B
Green SL7-FL24-G
Red SL7-FL24-R
White SL7-FL24-W
Yellow SL7-FL24-Y
Amber SL7-FL24-A
110/120 Vac Blue Strobe Light Symbol 1 SL7-FL120-B
Green SL7-FL120-G
Red SL7-FL120-R
White SL7-FL120-W
Yellow SL7-FL120-Y
Amber SL7-FL120-A
230/240 Vac Blue Strobe Light Symbol 1 SL7-FL230-B
Green SL7-FL230-G
Red SL7-FL230-R
White SL7-FL230-W
Yellow SL7-FL230-Y
Amber SL7-FL230-A

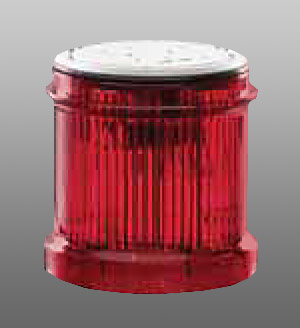

SL7-L24-_

SL7-L24

Continuous Light Module with High-Output LED
UL Type 4/4X/13, IP66

Rated
Operational Voltage
(U e V) 		Color Function Standard
Pack 		Part
Number
24 Vac/Vdc Blue High Output Continuous Light Symbol 1 SL7-L24-B-HP
Green SL7-L24-G-HP
Red SL7-L24-R-HP
White SL7-L24-W-HP
Yellow SL7-L24-Y-HP
Amber SL7-L24-A-HP

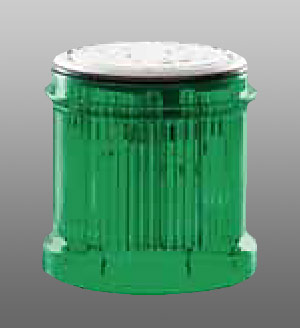

SL7-FL24-_-HP

SL7-FL24-_

Strobe Light Module with High-Output LED
UL Type 4/4X/13, IP66

Rated
Operational Voltage
(U e V) 		Color Function Standard
Pack 		Part
Number
24 Vac/Vdc Blue High Output Strobe Light Symbol 1 SL7-FL24-B-HP
Green SL7-FL24-G-HP
Red SL7-FL24-R-HP
White SL7-FL24-W-HP
Yellow SL7-FL24-Y-HP
Amber SL7-FL24-A-HP

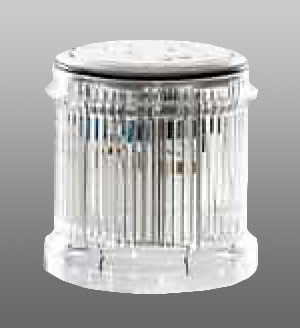

SL7-FL24-_-HPM

SL7-FL24-_

Multi-Strobe Light Module with High-Output LED
UL Type 4/4X/13, IP66

Rated
Operational Voltage
(U e V) 		Color Function Standard
Pack 		Part
Number
24 Vac/Vdc Blue High Output Multi-Strobe Light Symbol 1 SL7-FL24-B-HPM
Green SL7-FL24-G-HPM
Red SL7-FL24-R-HPM
White SL7-FL24-W-HPM
Yellow SL7-FL24-Y-HPM
Amber SL7-FL24-A-HPM

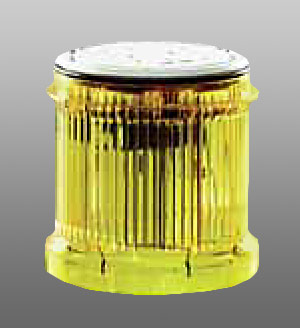

SL7-L-_

SL7-L-_

Continuous Light Module for Incandescent Bulb
UL Type 4/4X/13, IP66

Rated
Operational Voltage
(U e V) 		Color Function Standard
Pack 		Part
Number
24 Vac/Vdc Blue Continuous Light, Incandescent Symbol 1 SL7-L-B
Green SL7-L-G
Red SL7-L-R
White SL7-L-W
Yellow SL7-L-Y
Amber SL7-L-A

SL7-AP_

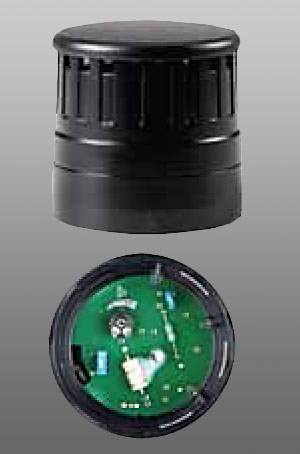

SL7-AP_

Continuous Tone or Pulsed Tone Acoustic Module
UL Type 4/4X/13, IP66 (1)

Rated
Operational Voltage
(U e V) 		Rated
Operational Current
(I e mA) 		Color Function Sound Type Standard Pack Part Number
24 Vac/Vdc Maximum 92 Blk Sound Symbol Sound Type Symbol 1 SL7-AP24
110/120 Vac Maximum 41 Blk SL7-AP120
230/240 Vac Maximum 43 Blk SL7-AP230

NOTE: (1) Place only at the highest position on a pole.

SL7-AP_-E

SL7-AP_

Continuous Tone or Pulsed Tone, External Actuation
UL Type 4/4X/13, IP66 (1)

Rated
Operational Voltage
(U e V) 		Rated
Operational Current
(I e mA) 		Color Function Sound Type Standard Pack Part Number
24 Vac/Vdc Maximum 92 Blk Sound Symbol Sound Type Symbol 1 SL7-AP24-E
110/120 Vac Maximum 41 Blk SL7-AP120-E
230/240 Vac Maximum 43 Blk SL7-AP230-E

NOTE: (1) Place only at the highest position on a pole.

SL7-AP_-M

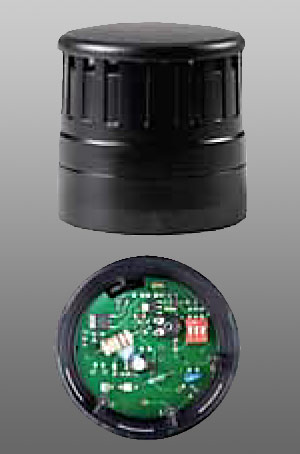

SL7-AP_-M

Multi-Tone; Eight Tones Acoustic Module
UL Type 4/4X/13, IP66 (1)

Rated
Operational Voltage
(U e V) 		Rated
Operational Current
(I e mA) 		Color Function Sound Type Standard Pack Part Number
24 Vac/Vdc Maximum 92 Blk Sound Symbol Sound Type Symbol 1 SL7-AP24-M
110/120 Vac Maximum 41 Blk SL7-AP120-M
230/240 Vac Maximum 43 Blk SL7-AP230-M

NOTE: (1) Place only at the highest position on a pole.

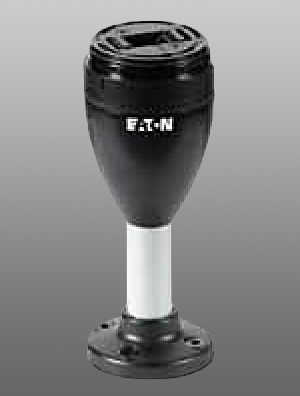

SL7-CB-_

SL7-CB-_

Base Module For Horizontal Mounting
Includes Cover, Maximum 5 Modules

Description Tube Length Color Standard Pack For use with … Part Number
Base with aluminum tube
and plastic foot
Spring-loaded terminals 		100 mm Black aluminum
color tube 		1 SL7-L-…
SL7-BL-…
SL7-FL-…
SL7-AP-… 		SL7-CB-100
250 mm SL7-CB-250
400 mm SL7-CB-400

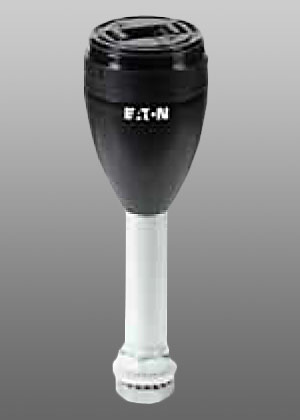

SL7-CB-T-_

SL7-CB-T-_

Base Module For Horizontal Mounting
Includes Cover, Maximum 5 Modules

Description Tube Length Color Standard Pack For use with … Part Number
Base with aluminum tube
and M20 threaded base
Spring-loaded terminals 		100 mm Black aluminum
color tube 		1 SL7-L-…
SL7-BL-…
SL7-FL-…
SL7-AP-… 		SL7-CB-T-100
250 mm SL7-CB-T-250
400 mm SL7-CB-T-400

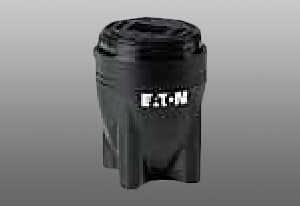

SL7-CB-IMH

SL7-CB-IMH

Base Module For Horizontal Mounting
Includes Cover, Maximum 5 Modules

Description Tube Length Color Standard Pack For use with … Part Number
Base with internal
(on the inside)
fixing holes Spring-loaded
terminals 		— Black 1 SL7-L-…
SL7-BL-…
SL7-FL-…
SL7-AP-… 		SL7-CB-IMH

SL7-CB-IMS

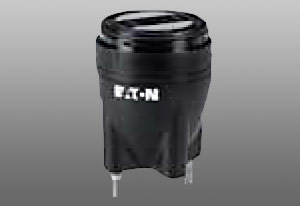

SL7-CB-IMS

Base Module For Horizontal Mounting
Includes Cover, Maximum 5 Modules

Description Tube Length Color Standard Pack For use with … Part Number
Base with built-in
(pre-assembled)
fixing screws
Spring-loaded terminals 		— Black 1 SL7-L-…
SL7-BL-…
SL7-FL-…
SL7-AP-… 		SL7-CB-IMS

SL7-CB-EMH

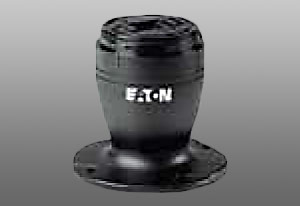

SL7-CB-EMH

Base Module For Horizontal Mounting
Includes Cover, Maximum 5 Modules

Description Tube Length Color Standard Pack For use with … Part Number
Base with external
fixing holes
Spring-loaded terminals 		— Black 1 SL7-L-…
SL7-BL-…
SL7-FL-…
SL7-AP-… 		SL7-CB-EMH

SL7-FMS_

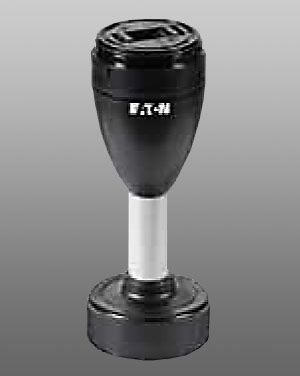

SL7-FMS_

Base Module For Horizontal Mounting
Includes Cover, Maximum 5 Modules

Description Tube Length Color Standard Pack For use with … Part Number
Base with external
fixing holes
Spring-loaded terminals 		100 mm Black aluminum
color tube 		1 SL7-L-…
SL7-BL-…
SL7-FL-…
SL7-AP-… 		SL7-FMS-100
250 mm SL7-FMS-250
400 mm SL7-FMS-400

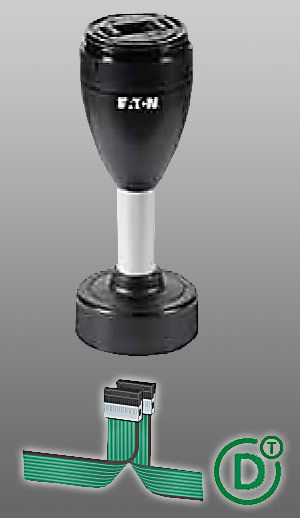

SL7-SWD

SL7-SWD

Base Module For Horizontal Mounting
Includes Cover, Maximum 5 Modules

Description Tube Length Color Standard Pack For use with … Part Number
Base with base adapter
for slipping onto place
(rapid mounting and wiring system)
Blade terminal SWD4-8MF2
Maximum 0.3A per module
External power supply
connectable (24 Vdc)
Configurable with
SWD-Assist
(planning and ordering help) 		100 mm — 1 SL7-L-…
SL7-BL-…
SL7-FL-…
SL7-AP-… 		SL7-SWD

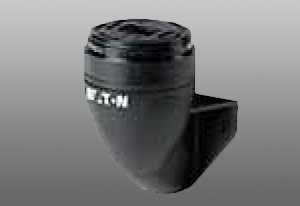

SL7-CB-FW

SL7-CB-FW

Base Module For Vertical Mounting
Includes Cover, Maximum 5 Modules

Description Tube Length Color Standard Pack For use with … Part Number
Vertical base
with bracket
Spring-loaded terminals 		100 mm — 1 SL7-L-…
SL7-BL-…
SL7-FL-…
SL7-AP-… 		SL7-CB-FW

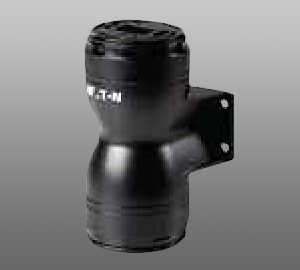

SL7-CB-D

SL7-CB-D

Base Module For Mounting on Both Sides
Includes Cover, Maximum 2 x 5 Modules

Description Tube Length Color Standard Pack For use with … Part Number
Base with external
fixing holes
Spring-loaded terminals 		100 mm — 1 SL7-L-…
SL7-BL-…
SL7-FL-…
SL7-AP-… 		SL7-CB-D
