Eaton Moeller SL4 Stacklight Parts

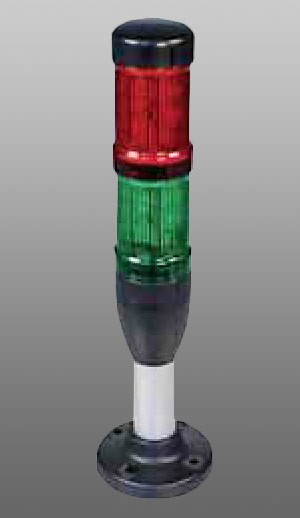

SL4-100-L-R_

Complete Devices
Continuous Light, LED, UL Type 4/4X/13, IP66

Rated Operational Voltage (U e V)	Number of Modules	Color	Function	Standard Pack	Part Number
24 Vac/Vdc	2	Red/Green		1	SL4-100-L-RG-24LED
	3	Red/Amber/ Green			SL4-100-L-RAG-24LED

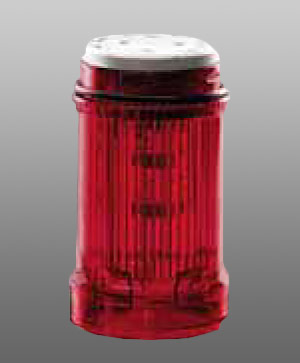

SL4-L_

Continuous Light Module with LED - UL Type 4/4X/13, IP66

Rated Operational Voltage (U e V)	Color	Function	Standard Pack	Part Number
24 Vac/Vdc	Blue		1	SL4-L24-B
	Green			SL4-L24-G
	Red			SL4-L24-R
	White			SL4-L24-W
	Yellow			SL4-L24-Y
	Amber			SL4-L24-A
110/120 Vac	Blue		1	SL4-L120-B
	Green			SL4-L120-G
	Red			SL4-L120-R
	White			SL4-L120-W
	Yellow			SL4-L120-Y
	Amber			SL4-L120-A
230/240 Vac	Blue		1	SL4-L230-B
	Green			SL4-L230-G
	Red			SL4-L230-R
	White			SL4-L230-W
	Yellow			SL4-L230-Y
	Amber			SL4-L230-A

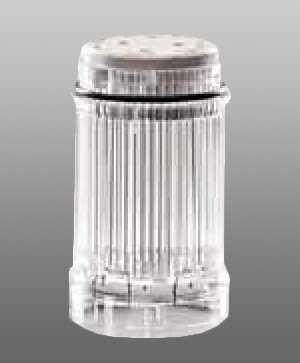

SL4-BL_

Flashing Light Module with LED - UL Type 4/4X/13, IP66, 2 Hz

Rated Operational Voltage (U e V)	Color	Function	Standard Pack	Part Number
24 Vac/Vdc	Blue		1	SL4-BL24-B
	Green			SL4-BL24-G
	Red			SL4-BL24-R
	White			SL4-BL24-W
	Yellow			SL4-BL24-Y
	Amber			SL4-BL24-A
110/120 Vac	Blue		1	SL4-BL120-B
	Green			SL4-BL120-G
	Red			SL4-BL120-R
	White			SL4-BL120-W
	Yellow			SL4-BL120-Y
	Amber			SL4-BL120-A
230/240 Vac	Blue		1	SL4-BL230-B
	Green			SL4-BL230-G
	Red			SL4-BL230-R
	White			SL4-BL230-W
	Yellow			SL4-BL230-Y
	Amber			SL4-BL230-A

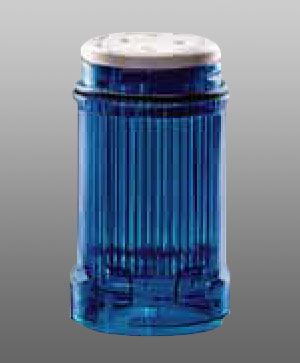

SL4-FL_

Strobe Light Module with LED - UL Type 4/4X/13, IP66, 1.4 Hz

Rated Operational Voltage (U e V)	Color	Function	Standard Pack	Part Number
24 Vac/Vdc	Blue		1	SL4-FL24-B
	Green			SL4-FL24-G
	Red			SL4-FL24-R
	White			SL4-FL24-W
	Yellow			SL4-FL24-Y
	Amber			SL4-FL24-A
110/120 Vac	Blue		1	SL4-FL120-B
	Green			SL4-FL120-G
	Red			SL4-FL120-R
	White			SL4-FL120-W
	Yellow			SL4-FL120-Y
	Amber			SL4-FL120-A
230/240 Vac	Blue		1	SL4-FL230-B
	Green			SL4-FL230-G
	Red			SL4-FL230-R
	White			SL4-FL230-W
	Yellow			SL4-FL230-Y
	Amber			SL4-FL230-A

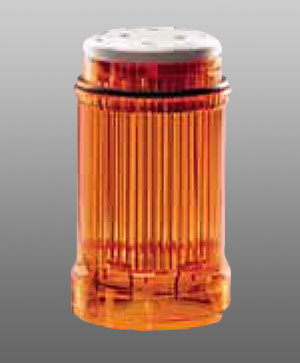

SL4-FL24-_-M

Multi-Strobe Light Module with LED
UL Type 4/4X/13, IP66

Rated Operational Voltage (U e V)	Color	Function	Standard Pack	Part Number
24 Vac/Vdc	Blue		1	SL4-FL24-B-M
	Green			SL4-FL24-G-M
	Red			SL4-FL24-R-M
	White			SL4-FL24-W-M
	Yellow			SL4-FL24-Y-M
	Amber			SL4-FL24-A-M

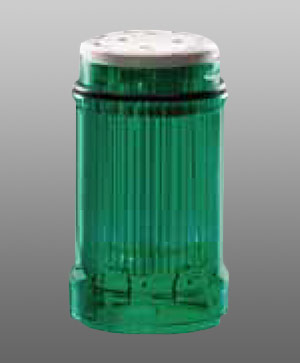

SL4-L-_

Light Module for Incandescent Bulb
Continuous Light, UL Type 4/4X/13, IP66

Rated Operational Voltage (U e V)	Color	Function	Standard Pack	Part Number
< 250 Vac/Vdc	Blue		1	SL4-L-B
	Green			SL4-L-G
	Red			SL4-L-R
	White			SL4-L-W
	Yellow			SL4-L-Y
	Amber			SL4-L-A

Without Light Elements, Incandescent Bulb, Maximum 4W

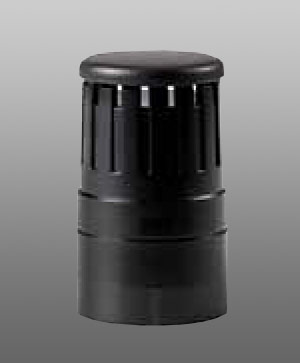

SL4-AP_

Continuous Tone or Pulsed Tone Acoustic Module
UL Type 4/4X/13, IP66 ₍₁₎

Rated Operational Voltage (U e V)	Rated Operational Current (I e mA)	Color	Function	Sound Type	Standard Pack	Part Number
24 Vac/Vdc	Maximum 92	Blk			1	SL4-AP24
110/120 Vac	Maximum 41	Blk				SL4-AP120
230/240 Vac	Maximum 43	Blk				SL4-AP230

Adjustable with internal DIP switches. Sound pressure 80 dB, adjustable with internal potentiometer. f = 4000 Hz.

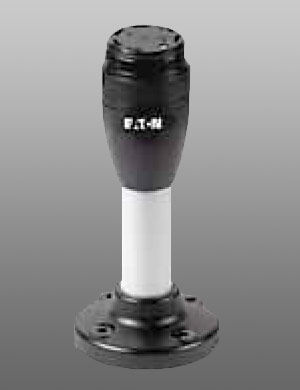

SL4-PIB-_

Base Module For Horizontal Mounting
Includes Cover, Maximum 5 Modules

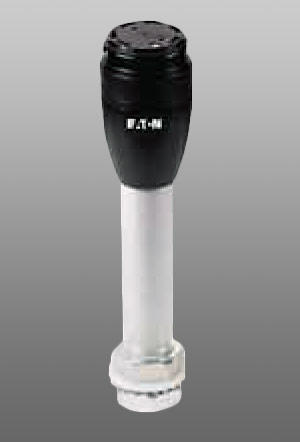

SL4-PIB-T-_

Base Module For Horizontal Mounting
Includes Cover, Maximum 5 Modules

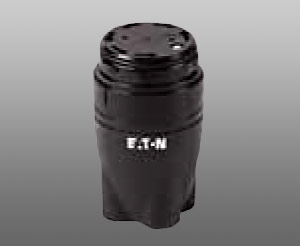

SL4-PIB-IMH

Base Module For Horizontal Mounting
Includes Cover, Maximum 5 Modules

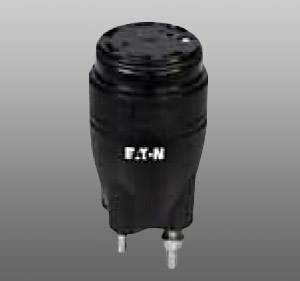

SL4-PIB-IMS

Base Module For Horizontal Mounting
Includes Cover, Maximum 5 Modules

SL4-PIB-EMH

Base Module For Horizontal Mounting
Includes Cover, Maximum 5 Modules

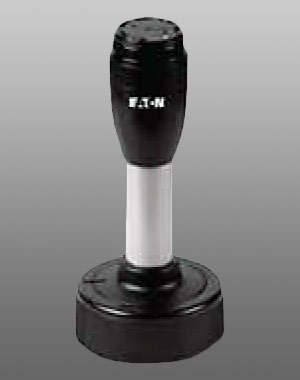

SL4-FMS_

Base Module For Horizontal Mounting
Includes Cover, Maximum 5 Modules

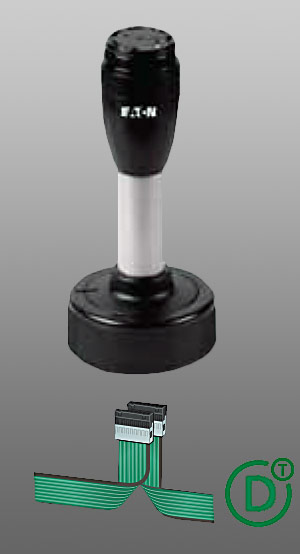

SL4-SWD

Base Module For Horizontal Mounting
Includes Cover, Maximum 5 Modules

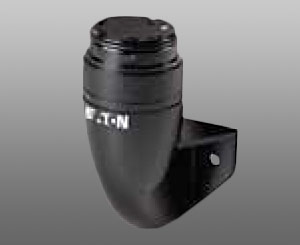

SL4-PIB-FW

Vertical Mounting Base Module
Includes Cover, Maximum 5 Modules

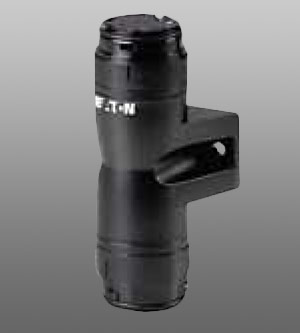

SL4-PIB-D

Base Module For Mounting on Both Sides
Includes Cover, Maximum 2 x 5 Modules
