EATON Molded Case Circuit Breakers Series-G, Frame Size - RG

Series-G, RG-Frame (800–2500 Amperes)

  • Complete Breaker (Includes Frame, Trip Unit, Standard Terminals and Mounting Hardware)
  • All R-Frame circuit breakers are suitable for reverse feed use

70 kA at 415 Vac and 65 kA at 480 Vac

Type RGH with Digitrip 310+ High Interrupting Capacity—U e Maximum 690 Vac, 70 kA I cu at 415 Vac

Circuit Breaker Frame Including Digitrip RMS 310 Electronic Trip Unit with Adjustable Rating Plugs—Catalog Number (2)
L – Adjustable Long Delay Pickup (By Adjustable Rating Plug)
S – Adjustable Short Delay Pickup with Fixed Short Delay Time (I 2 t Response) or Adjustable Short Delay Time (Flat Response)
I – Adjustable Instantaneous Pickup by Setting Short Delay Time to Instantaneous
G – Adjustable Ground Fault Pickup with Adjustable Ground Fault Delay (Flat Response)

Maximum
Continuous
Ampere
Rating
at 40°C 		Number
of Poles 		LS LSI LSG (3) LSIG (3) Neutral CT
for LSG & LSIG
Short Time Range 2–8 x I n 2–8 x I n 2–8 x I n 2–8 x I n
Short Time Delay — I–300 ms — I–300 ms
Ground Fault Pickup — — 200–1200A 200–1200A
Ground Fault Delay — — I–500 ms I–500 ms
1600 (1) 3 RGH316033E RGH316032E RGH316035E RGH316036E RGFCT160A
2000 3 RGH320033E RGH320032E RGH320035E RGH320036E RGFCT200A
2500 3 RGH325033E RGH325032E RGH325035E RGH325036E RGFCT250A

100 kA at Both 415 Vac and 480 Vac

Type RGH with Digitrip 310+ High Interrupting Capacity—U e Maximum 690 Vac, 70 kA I cu at 415 Vac

Circuit Breaker Frame Including Digitrip RMS 310 Electronic Trip Unit with Adjustable Rating Plugs—Catalog Number (2)
L – Adjustable Long Delay Pickup (By Adjustable Rating Plug)
S – Adjustable Short Delay Pickup with Fixed Short Delay Time (I 2 t Response) or Adjustable Short Delay Time (Flat Response)
I – Adjustable Instantaneous Pickup by Setting Short Delay Time to Instantaneous
G – Adjustable Ground Fault Pickup with Adjustable Ground Fault Delay (Flat Response)

Maximum
Continuous
Ampere
Rating
at 40°C 		Number
of Poles 		LS LSI LSG (3) LSIG (3)
Short Time Range 2–8 x I n 2–8 x I n 2–8 x I n 2–8 x I n
Short Time Delay — I–300 ms — I–300 ms
Ground Fault Pickup — — 200–1200A 200–1200A
Ground Fault Delay — — I–500 ms I–500 ms
1600 (1) 4 (4) RGH416033E RGH416032E — —
2000 4 (4) RGH420033E RGH420032E — —
2500 4 (4) RGH425033E RGH425032E — —

100 kA at Both 415 Vac and 480 Vac

Type RGC with Digitrip 310+ Very High Interrupting Capacity—U e Maximum 690 Vac, 100 kA I cu at 415 Vac

Circuit Breaker Frame Including Digitrip RMS 310 Electronic Trip Unit with Adjustable Rating Plugs—Catalog Number (2)
L – Adjustable Long Delay Pickup (By Adjustable Rating Plug)
S – Adjustable Short Delay Pickup with Fixed Short Delay Time (I 2 t Response) or Adjustable Short Delay Time (Flat Response)
I – Adjustable Instantaneous Pickup by Setting Short Delay Time to Instantaneous
G – Adjustable Ground Fault Pickup with Adjustable Ground Fault Delay (Flat Response)

+
Maximum
Continuous
Ampere
Rating
at 40°C 		Number
of Poles 		LS LSI LSG (3) LSIG (3) Neutral CT
for LSG & LSIG
Short Time Range 2–8 x I n 2–8 x I n 2–8 x I n 2–8 x I n
Short Time Delay — I–300 ms — I–300 ms
Ground Fault Pickup — — 200–1200A 200–1200A
Ground Fault Delay — — I–500 ms I–500 ms
1600 (1) 3 RGC316033E RGC316032E RGC316035E RGC316036E RGFCT160A
2000 3 RGC320033E RGC320032E RGC320035E RGC320036E RGFCT200A
2500 3 RGC325033E RGC325032E RGC325035E RGC325036E RGFCT250A

Type RGC with Digitrip 310+ Very High Interrupting Capacity—U e Maximum 690 Vac, 100 kA I cu at 415 Vac, continued

Circuit Breaker Frame Including Digitrip RMS 310 Electronic Trip Unit with Adjustable Rating Plugs—Catalog Number (2)
L – Adjustable Long Delay Pickup (By Adjustable Rating Plug)
S – Adjustable Short Delay Pickup with Fixed Short Delay Time (I 2 t Response) or Adjustable Short Delay Time (Flat Response)
I – Adjustable Instantaneous Pickup by Setting Short Delay Time to Instantaneous
G – Adjustable Ground Fault Pickup with Adjustable Ground Fault Delay (Flat Response)

Maximum
Continuous
Ampere
Rating
at 40°C 		Number
of Poles 		LS LSI LSG (3) LSIG (3)
Short Time Range 2–8 x I n 2–8 x I n 2–8 x I n 2–8 x I n
Short Time Delay — I–300 ms — I–300 ms
Ground Fault Pickup — — 200–1200A 200–1200A
Ground Fault Delay — — I–500 ms I–500 ms
1600 (1) 4 (4) RGC416033E RGC416032E — —
2000 4 (4) RGC420033E RGC420032E — —
2500 4 (4) RGC425033E RGC425032E — —

NOTES:
(1) For SCR application, use 2000 ampere frame.
(2) Order terminals separately. Mounting hardware not included.
(3) Ground fault equipped trip units available with remote indicating panel. Add “R” to catalog number, for example, “RGH316035RW.”
(4) Unprotected left pole neutral. Add “P” to catalog number for 100% protected left pole neutral, add “E” for 60% protected, for example, “RGH416033PW,” “RGH416033EW.”
RG MCCBs have English threading on line and load conductors. Use suffix “M” for metric threading.

Molded Case Switches (5)

Ampere Rating Number of Poles Part Number
1600 3 RGK3160KSE
2000 3 RGK3200KSE
1600 4 RGK4160KSE
2000 4 RGK4200KSE

NOTES:
(1) For SCR application, use 2000 ampere frame.
(2) Order terminals separately. Mounting hardware not included.
(3) Ground fault equipped trip units available with remote indicating panel. Add “R” to catalog number, for example, “RGH316035RW.”
(4) Unprotected left pole neutral. Add “P” to catalog number for 100% protected left pole neutral, add “E” for 60% protected, for example, “RGH416033PW,” “RGH416033EW.”
(5) Molded case switch will trip above 17,500 amperes.
RG MCCBs have English threading on line and load conductors. Use suffix “M” for metric threading.

Type RG with Digitrip 610 and 910

Circuit Breaker Frame Including Digitrip RMS 610 and 910 Electronic Trip Unit with Rating Plugs Order as Individual Component—Catalog Number (1)
L – Adjustable Long Delay Pickup (I r ) with Adjustable Long Delay Time
S – Adjustable Short Delay Pickup with Adjustable Short Delay Time (I 2 t or Flat Response)
I – Adjustable Instantaneous Pickup
G – Adjustable Ground Fault Pickup with Adjustable Ground Fault Time Delay (I 2 t or Flat Response)

Maximum
Continuous
Ampere
Rating
at 40°C 		Num.
of Poles 		LI LS LSI LIG LSG LSIG Digitrip RMS
Interchangeable
Rating Plug
(Order as Individual
Component)

Fixed Rating Plug
Long Delay
Pickup 		0.5–1.0 x I n 0.5–I.0 n 0.5–1.0 x I n 0.5–1.0 x I n 0.5–1.0 x I n 0.5–1.0 x I n
Long Delay
Time 		2–24
Seconds 		2–24
Seconds 		2–24
Seconds 		2–24
Seconds 		2–24
Seconds 		2–24
Seconds
Short Time
Range 		2–6 x I r 2–6 x I r 2–6 x I r 2–6 x I r 2–6 x I r 2–6 x I r
Short Time Delay — 100–500 ms 100–500 ms — 100–500 ms 100–500 ms
Instantaneous 2–6 x M1
and M2 		— 2–6 x M1
and M2 		2–6 x M1
and M2 		— 2–6 x M1
and M2
Ground Fault Pickup — — — 0.25–1.0 x I n (2) 0.25–1.0 xI n (2) 0.25–1.0 x I n (2)
Ground Fault
Delay 		— — — 100–500 ms 100–500 ms 100–500 ms Ampere
Rating 		Part
Number
Type RGH with Digitrip 610 High Interrupting Capacity—U e Max. 690 Vac, 70 kA I cu at 415 Vac
1600 3 RGH316T61WP44 RGH316T63WP44 RGH316T62WP44 RGH316T64WP44 RGH316T65WP44 RGH316T66WP44 800 RP6R16A080
1000 RP6R16A100
1200 RP6R16A120
1250 RP6R16A125
Includes 1600A rating plug 1600 RP6R16A160
2000 3 RGH320T61WP49 RGH320T63WP49 RGH320T62WP49 RGH320T64WP49 RGH320T65WP49 RGH320T66WP49 1000 RP6R20A100
1200 RP6R20A120
1250 RP6R20A125
1600 RP6R20A160
Includes 2000A rating plug 2000 RP6R20A200
2500 3 RGH325T61WP53 RGH325T63WP53 RGH325T62WP53 RGH325T64WP53 RGH325T65WP53 RGH325T66WP53 1600 RP6R25A160
2000 RP6R25A200
2500 RP6R25A250
Type RGC with Digitrip 610 Very High Interrupting Capacity—Ue Max. 690 Vac, 100 kA Icu at 415 Vac
1600 3 RGC316T61WP44 RGC316T63WP44 RGC316T62WP44 RGC316T64WP44 RGC316T65WP44 RGC316T66WP44 800 RP6R16A080
1000 RP6R16A100
1200 RP6R16A120
1250 RP6R16A125
Includes 1600A rating plug 1600 RP6R16A160
2000 3 RGC320T61WP49 RGC320T63WP49 RGC320T62WP49 RGC320T64WP49 RGC320T65WP49 RGC320T66WP49 1000 RP6R20A100
1200 RP6R20A120
1250 RP6R20A125
1600 RP6R20A160
Includes 2000A rating plug 2000 RP6R20A200
2500 3 RGC325T61WP53 RGC325T63WP53 RGC325T62WP53 RGC325T64WP53 RGC325T65WP53 RGC325T66WP53 1600 RP6R25A160
2000 RP6R25A200
Includes 2500A rating plug 2500 RP6R25A250
Type RGH with Digitrip 910 High Interrupting Capacity—U e Max. 690 Vac, 70 kA I cu at 415 Vac
1600 3 RGC320T61WP49 RGC320T63WP49 RGC320T62WP49 RGC320T64WP49 RGC320T65WP49 RGC320T66WP49 800 RP6R16A080
1000 RP6R16A100
1200 RP6R16A120
1250 RP6R16A125
Includes 1600A rating plug 1600 RP6R16A160
2000 3 RGH320T91WP49 RGH320T93WP49 RGH320T92WP49 RGH320T94WP49 RGH320T95WP49 RGH320T96WP49 1000 RP6R20A100
1200 RP6R20A120
1250 RP6R20A125
1600 RP6R20A160
Includes 2000A rating plug 2000 RP6R20A200
2500 3 RGH325T91WP53 RGH325T93WP53 RGH325T92WP53 RGH325T94WP53 RGH325T95WP53 RGH325T96WP53 1600 RP6R25A160
2000 RP6R25A200
Includes 2500A rating plug 2500 RP6R25A250
Type RGC with Digitrip 910 Very High Interrupting Capacity—U e Max. 690 Vac, 100 kA I cu at 415 Vac
1600 3 RGC316T91WP44 RGC316T93WP44 RGC316T92WP44 RGC316T94WP44 RGC316T95WP44 RGC316T96WP44 800 RP6R16A080
1000 RP6R16A100
1200 RP6R16A120
1250 RP6R16A125
Includes 1600A rating plug 1600 RP6R16A160
2000 3 RGC320T91WP49 RGC320T93WP49 RGC320T92WP49 RGC320T94WP49 RGC320T95WP49 RGC320T96WP49 1000 RP6R20A100
1200 RP6R20A120
1250 RP6R20A125
1600 RP6R20A160
Includes 2000A rating plug 2000 RP6R20A200
2500 3 RGC325T91WP53 RGC325T93WP53 RGC325T92WP53 RGC325T94WP53 RGC325T95WP53 RGC25T96WP53 1600 RP6R25A160
2000 RP6R25A200
Includes 2500 A rating plug 2500 RP6R25A250

NOTES:
(1) Order terminals separately. Mounting hardware not included.
(2) Not to exceed 1200 ampere ground fault pickup.
RG MCCBs have metric threading on line and load conductors. Use RD MCCBs if imperial threading is required.

Accessories Selection Guide

Line and Load Terminals

R-Frame circuit breakers use Cu/Al terminals as standard and copper only terminals as an option. Specify if factory installation is required. Must have terminals for 100% rated and or freeze testing requirements.

Maximum
Breaker
Amperes 		Terminal
Body
Material 		Wire
Type 		Hardware AWG/kcmil
Wire Range/
Number of Conductors 		Metric Wire
Range mm 2 		Part
Number
Wire Terminals
1600 Aluminum Cu/Al Metric 500–1000 (4) 300–500 TA1600RDM (1)
1600 Copper Cu Metric 1–600 (4) 50–300 T1600RDM (1)
2000 Aluminum Cu/Al Metric 2–600 (6) 35–300 TA2000RDM (2)
Rear Connectors
2000 Copper — Metric — — B2016RDM (1)
2000 Copper — Metric — — B2016RDLM (1)
2500 Copper — Metric — — B2500RDM (1)

Handle Extension

Description Part Number
Single handle
extension 		HEX6

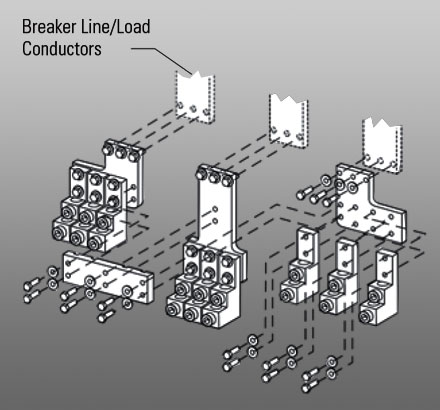

TA2000RD Wire Terminal

Note: Order one TA2000RDM kit per three poles. Catalog number includes bus connection, terminals and hardware for either line side or load side of three-pole breaker.

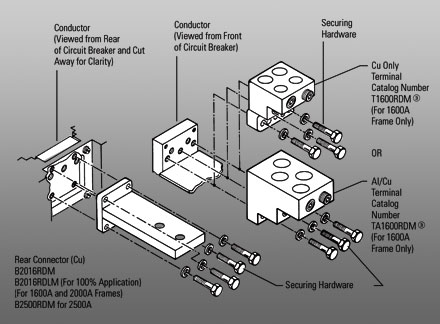

RG Rear Connector Exploded View

NOTES:
(1) Order one per pole—single terminals individually packed.
(2) Order one TA2000RD kit per three poles. Catalog number includes bus connection, terminals and hardware for either line side or load side of three-pole breaker.
(3) For use with 2500A Frame. Do not order separately unless for replacement purposes. Included in breaker carton when 2500A frame is ordered.
RG MCCBs have metric threading on line and load conductors. Use RD MCCBs if imperial threading is required.
