EATON Molded Case Circuit Breakers Series-G, Frame Size - LG

Notes:
(1) Replace suffix “G” with “W” for no line and load terminals.
(2) For two-pole applications, use two outer poles.
(3) Neutral protection is indicated by the fourth character: 4 = 0%, 7 = 100%, 8 = adjustable 0–60% and 9 = 0–100%. Neutral is on LH side.
(4) 320/630 amperes is not a UL or CSA listed rating. 600 amperes is the maximum UL and CSA rating for the LG.
(5) Adjustable thermal units are typically used in IEC markets and are not UL or CSA listed.

Notes:
(1) Molded case switches will trip above 6300 amperes.
(2) For two-pole applications, use two outer poles.
(3) 630 amperes is not a UL or CSA listed rating. 600 amperes is the maximum UL and CSA rating for the LG.
(4) Adjustable thermal, adjustable magnetic trip units are typically used in IEC markets and are not UL or CSA listed.
(5) Neutral protection is indicated by the third character: 4 = 0%, 7 = 100%, 8 = adjustable 0–60% and 9 = 0–100%.
(6) 100% rated frame.

Notes:
(1) Required for four-wire systems if neutral protection is desired.
(2) 630 amperes is not a UL or CSA listed rating. 600 amperes is the maximum UL and CSA listed rating for the LG.
(3) Neutral protection: 4= 0%, 6 = 60%, 7 = 100%. Electronic trip unit neutral protection is not adjustable.
(4) IL Number is 5721B13.

Long time pickup — selectable via dial setting.
630 ampere settings — 630, 600, 500, 400, 350, 315, 300, 250 (315, 630 are IEC ratings only).
600 ampere settings — 600, 500, 450, 400, 350, 315, 300, 250 (315 is IEC rating only).
400 ampere settings — 400, 350, 315, 300, 250, 225, 200, 160 (315 is IEC rating only).
250 ampere settings — 250, 225, 200, 175, 160, 150, 125, 100 (160 is IEC rating only).
Adjustable long time delay — 2–24 seconds at 6 x Ir.
Adjustable short time delay — Inst., 120, 300 ms.

Notes:
(1) Replace suffix “G” with “W” for no line and load terminals.
(2) Required for four-wire systems if neutral protection is desired.
(3) For two-pole applications, use two outer poles.
(4) 630 amperes is not a UL or CSA listed rating. 600 amperes is the maximum UL and CSA listed rating for the LG.
(5) Neutral protection: 4= 0%, 6 = 60%, 7 = 100%. Electronic trip unit neutral protection is not adjustable.

LG-Frame—630 Amperes (600 Amperes UL, CSA) IC Rating: 35 kAIC at 415 and 480 Vac ₍₁₎

LG-Frame—630 Amperes (600 Amperes UL, CSA) IC Rating: 50 kAIC at 415 and 480 Vac ₍₁₎

LG-Frame—630 Amperes (600 Amperes UL, CSA) IC Rating: 70 kAIC at 415, 65 kAIC at 480 Vac ₍₁₎

Notes:
(1) Required for four-wire systems if neutral protection is required.
(2) 630 amperes is not a UL or CSA listed rating. 600 amperes is the maximum UL and CSA listed rating for the LG.

Series G LG circuit breakers are available with the Arcflash Reduction Maintenance System™ integrated into the electronic trip units helping to improve safety by providing a simple and reliable method to reduce fault clearing time. The Arcflash Reduction Maintenance System unit utilizes a separate analog trip circuit that provides faster

interruption times than the standard (digital) “instantaneous” protection. Work locations downstream of a circuit breaker with an Arcflash Reduction Maintenance System unit can have a significantly lower incident energy level, reducing arc flash potential to the system.

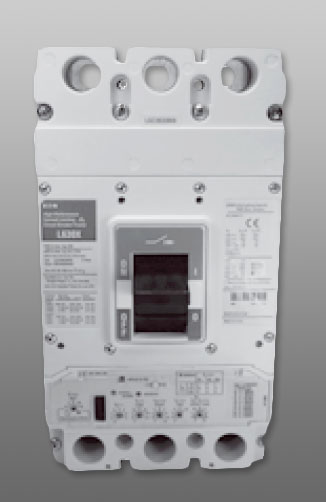

LG Electronic Breaker with Arcflash Reduction Maintenance System

LG Electronic Trip Units with Arcflash Reduction Maintenance System

Base Mounting Hardware

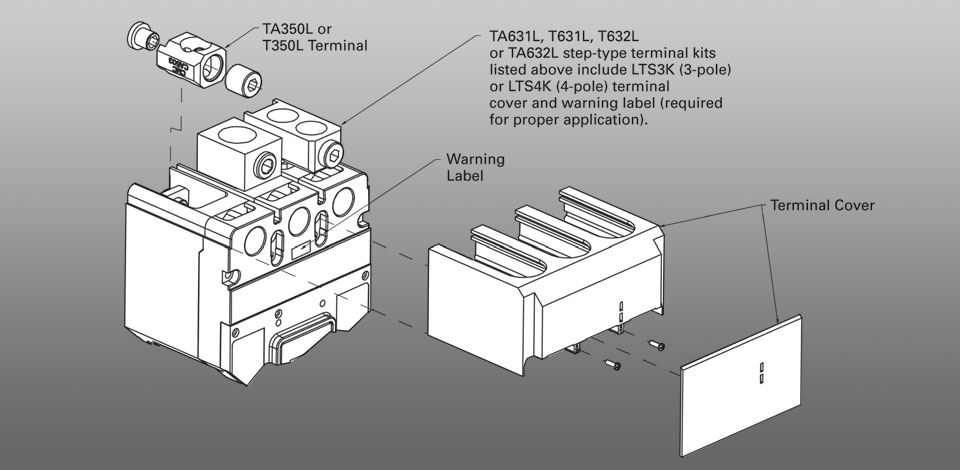

Terminal Covers

Control Wire Terminal Kit

Terminal Spreaders

Terminal Extensions

Handle Extension

Interphase Barrier

Rear Fed Terminals

Rear fed terminals allow the cable to connect to the breaker from the back instead of the top. Terminal shields or interphase barriers are included with each rear fed terminal kit (depending on frame size). When catalog number starts with a 3, it indicates a kit with three terminals in each kit. Catalog number beginning with a TA indicates one terminal.

Multiwire Connectors

Field-installed multiwire connectors for the load side (OFF) end terminals are used to distribute the load from the circuit breaker to multiple devices without the use of separate distribution terminal blocks.

Multiwire lug kits include terminal shield, mounting hardware, insulators and tin-plated aluminum connectors to replace three mechanical load lugs. UL listed as used on the load side (OFF) end.

LG-Frame Multiwire Connectors Ordering Information (Package of 3)
