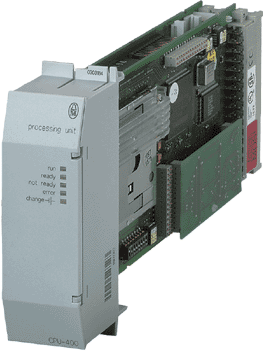

Moeller PS416-CPU CPU Cards

Application

• The PS416-CPU processes and saves PLC programs.
  The Sucosoft S40 programming software is used
  to program the PLC for complex automation solutions.

Features

• Space required: 2 slots
• 16-bit microcontroller with RISC architecture
• 36 MHz clock frequency
• Loadable, modular operating system
• Cycle time/instruction: approx. 0.5 s for standard bit,
  byte and word commands
• Real-time clock
• The operating system is stored in a separate memory range
  that is reserved for this purpose
• Two mutually independent batteries prevent data loss for
  at least six months. Batteries must be ordered separately
• Dynamic memory management
• Floating-point arithmetic
• Provides the user program memory

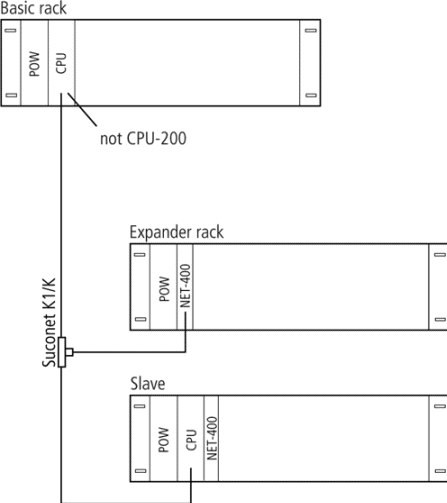

• Through the Suconet K interface, the PS416 can be
  - Expanded with local and remote inputs and outputs
  - Networked with intelligent slaves
  - Connected to operator and display units
• The programming interface of the PS416 can be configured for use as:
  - A point-to-point connection through RS 232C
  - An RS 485 multi-drop interface. Several PS416s can be networked
  and programmed centrally with a programming device.

• Networking/expansion through an SBI interface

Interfaces

• Connection through 9-pin SUB-D socket
• PRG interface:
  - As RS 232C interface
  - Length of programming cable max. 10 m
  - Number of stations max. 1
  - As RS 485 interface
  - Length of programming cable max. 600 m
  - Number of stations max. 30

• SBI interface
  - Suconet K mode
  - Length of the data cable max. 600 m/187.5 Kbit/s or 300 m/375 Kbit/s
  - Number of stations max. 30
  - Transparent mode
  - Length of data cable max. 1200 m
  - Number of stations max. 1
