Eaton / Moeller Series
38A, ZB32 mounting base, DIN-rail/screw mount, UL/CSA/IEC/CE

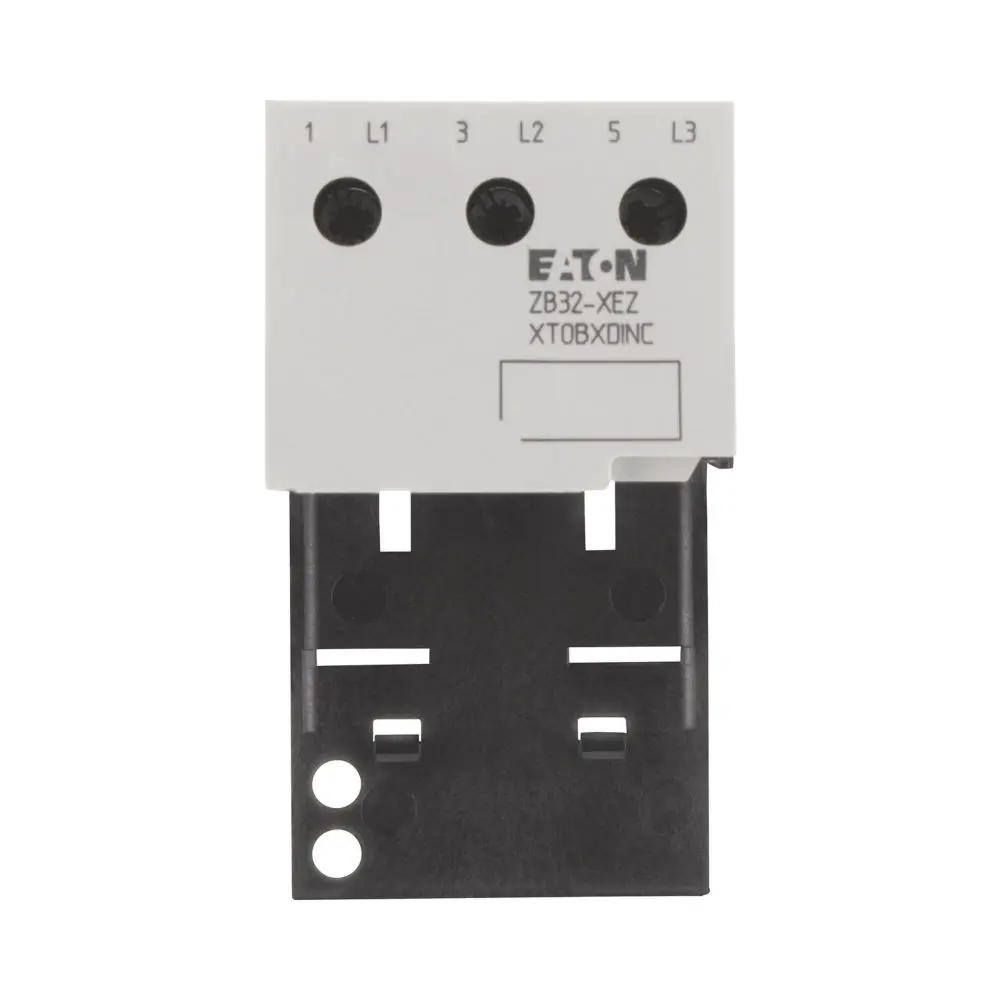

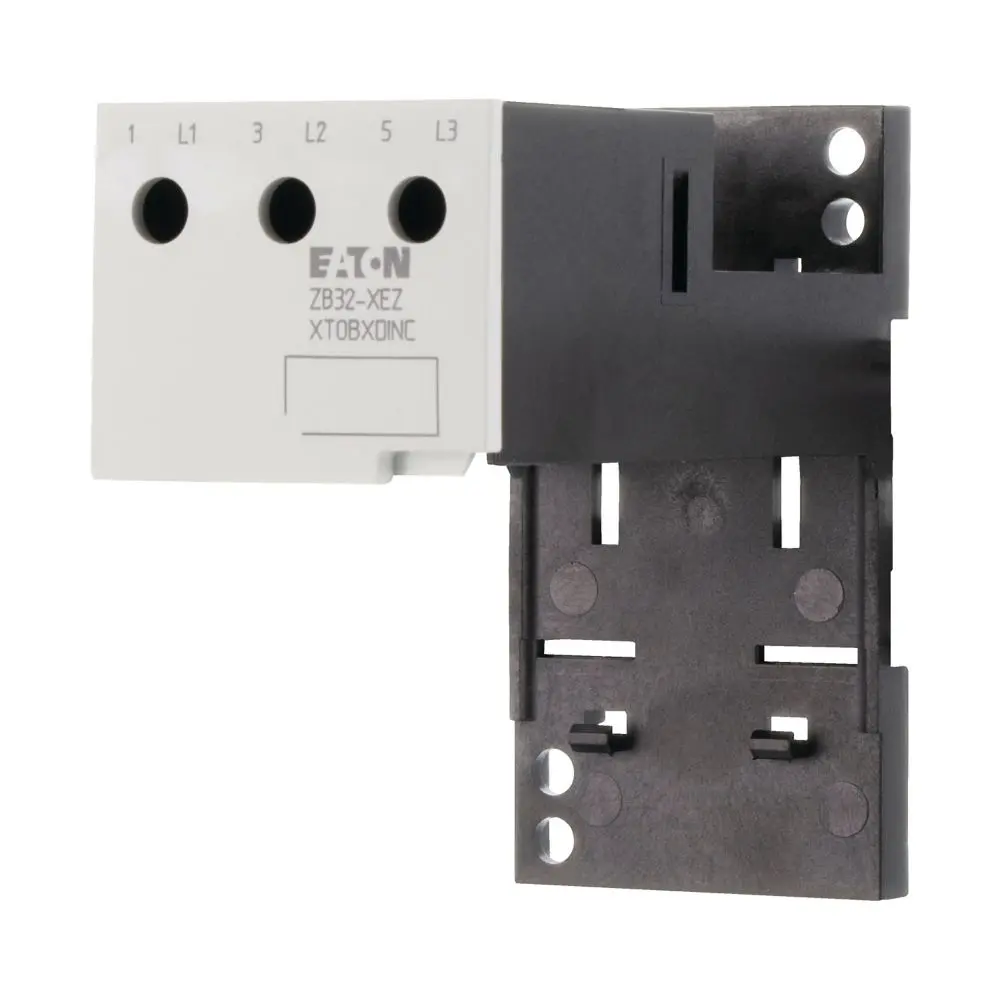

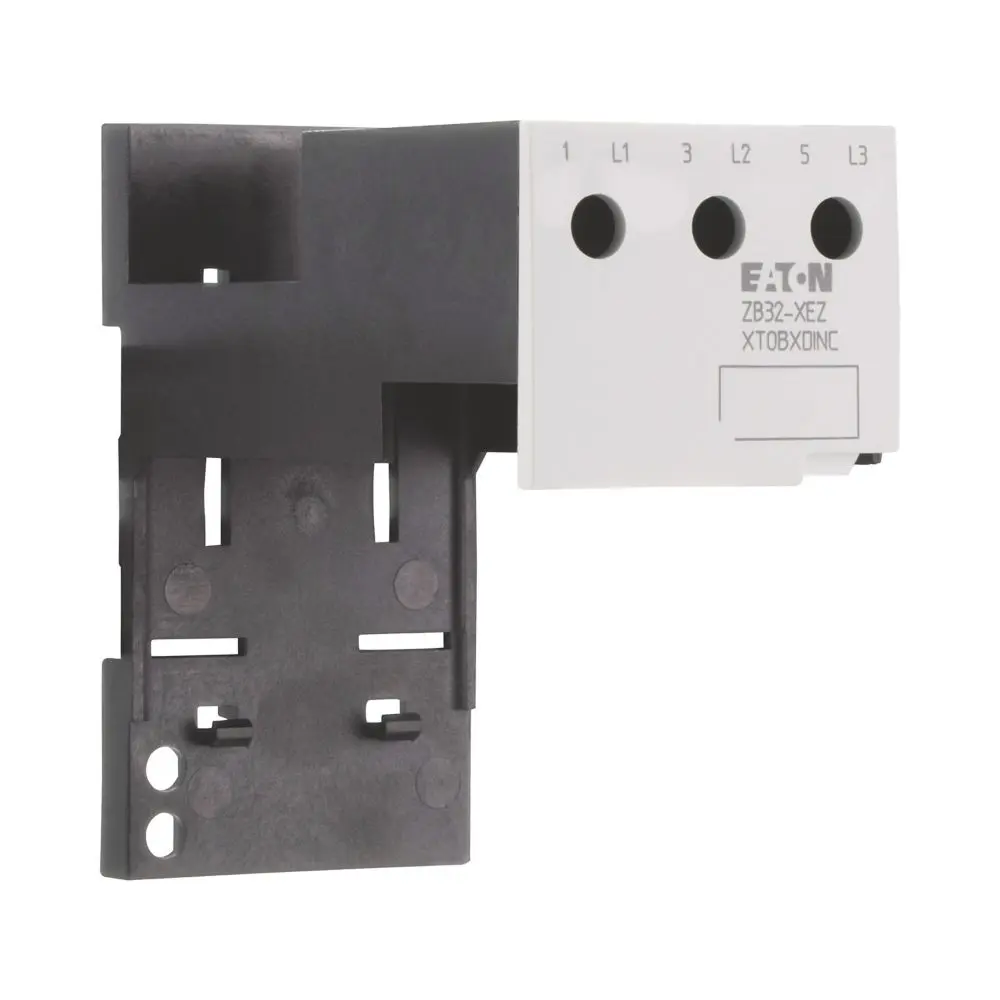

Eaton ZB32-XEZ is an individual mounting base for separate mounting of ZB32 overload relays. It snap-fits to IEC/EN 60715 top-hat DIN rail or can be screw mounted, and is approved to UL 508, CSA C22.2 No. 14, and IEC/EN 60947-4-1 with CE marking. Electrical ratings include Ui 690 V, Ue 690 V AC, Uimp 6 kV, safe isolation between main circuits 440 V AC, and a design-verification operational current of 38 A for heat dissipation. Terminals accept 1–16 mm² solid, 1–4 mm² with ferrule, AWG 18–8, with M4 screws tightened to 1.8 Nm; IP20 degree of protection.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton |
|---|---|
| Part Number | ZB32-XEZ |
| Catalog Number | 278473 |
| Alternate Catalog No. | XTOBXDINC |
| Product Range | Accessories |
| Product Type | Individual mounting base for ZB32 overload relay |
| Function | For separate mounting |
| For Use With | ZB32 |
| Mounting Notes | Snap-fit on IEC/EN 60715 top-hat rail or screw mount |
| Design-Verification Operational Current | 38 A (for specified heat dissipation) |
| Operating Ambient Temperature | −25 °C to +55 °C |
| Rated Insulation Voltage (Ui) | 690 V |
|---|---|
| Rated Operational Voltage (Ue) | 690 V AC |
| Rated Impulse Withstand (Uimp) | 6 kV |
| Safe Isolation (EN 61140) | Between main circuits: 440 V AC |
| Overvoltage Category / Pollution Degree | III / 3 |
| Terminal Capacities (Solid) | 1×(1–16 mm²), 2×(1–16 mm²) |
| Terminal Capacities (Flexible w/ Ferrule) | 1×(1–4 mm²), 2×(1–4 mm²) |
| Conductor Range (AWG) | 18–8 AWG (solid or stranded) |
| Terminal Screw | M4 |
| Tightening Torque | 1.8 Nm |
| Stripping Length | 10 mm |
| Tools | PZ2; Flat 1×6 mm |
| Degree of Protection | IP20 (IEC) |
| Max. Voltage Rating (NA) | 600 V AC |
| Certifications | UL, CSA, IEC, CE |
