Eaton / Moeller Series
0.16–0.24A relay, 1NO/1NC
Moeller ZB32-0.24-XEZ is a thermal overload relay with an adjustable range of 0.16 to 0.24A. It includes one normally open and one normally closed built-in auxiliary contact. Provides short circuit protection up to 600V AC using either a 25A circuit breaker or 1A fuses. Suitable for precision motor protection in low-current applications.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.

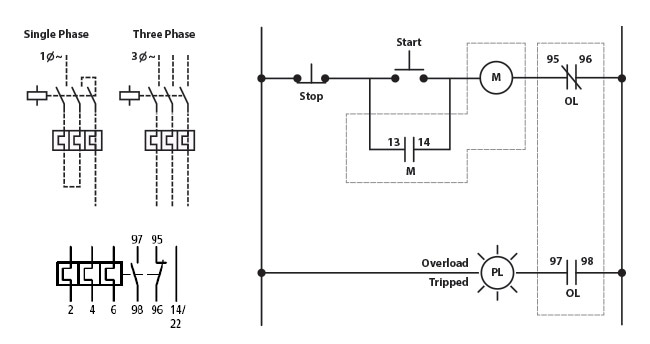

Overload has one normally closed contact that opens upon trip and one normally open contact that closes when tripped.
Class 10A overload, Trip response from 2 to 10 seconds, Ambient compensated, Bi-Metallic tripping mechanism, Phase failure sensitive to IEC/EN 60947, Manual/Automatic reset button, Built in NO and NC auxiliary contacts.
| Model | ZB32-0.24-XEZ |
|---|---|
| Device Type | Thermal Overload Relay |
| Adjustable Range | 0.16 – 0.24A |
| Auxiliary Contacts (NO/NC) | 1 / 1 |
| Short Circuit Protection (Fuses) | 1A @ 600V AC |
| Short Circuit Protection (Breaker) | 25A @ 600V AC |
