Eaton

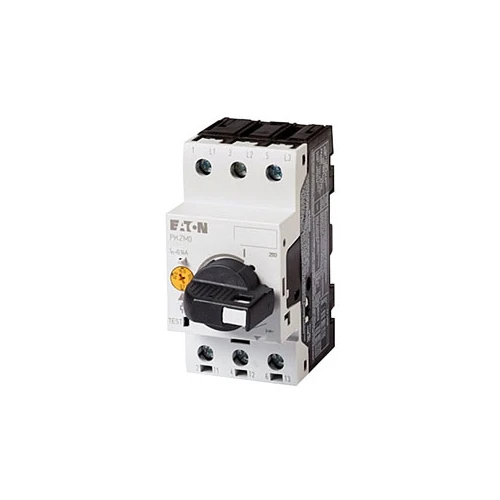

Motor protector 0.63A, 3P, adjustable trip 0.4-0.63A
The Eaton XTPRP63BC1 is a 3-phase thermal-magnetic manual motor protector that provides overload and short-circuit protection for motor branch circuits. It includes an adjustable thermal overload range of 0.4–0.63A and a fixed magnetic trip response of 8.8A, allowing proper protection in accordance with the motor nameplate full load current. UL listed and CSA certified as a Type E self-protected combination controller, the XTPRP63BC1 combines overload, short-circuit, disconnect, and controller functions into one unit, reducing the need for separate protective devices. It is also marked “Suitable for group installations” in compliance with NEC 430.53 and CEC Rule 28-206, making it an efficient and space-saving solution for industrial control panel applications.
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton |
|---|---|
| Model | XTPRP63BC1 |
| Product Type | Manual Motor Protector |
| Poles | 3 |
| Trip Type | Thermal-Magnetic |
| Adjustable Thermal Range | 0.4 – 0.63 A |
| Magnetic Trip Response | 8.8 A |
| UL/CSA 3-Phase HP Rating @ 230 V | 0.63 HP |
|---|---|
| UL/CSA 3-Phase HP Rating @ 460 V | 0.63 HP |
| Short-Circuit Current Rating @ 600 V AC | 50 kA |
| Certifications | UL Listed, CSA Certified, NEC 430, CEC Rule 28-206 |
| Application | Type E Self-Protected Combination Controller, Suitable for Group Installations |
