Eaton / Moeller Series
32A, 3P, trip block with overload release, setting range 8.0–32.0 A, electronic trip (delayed), IP20, IEC/EN 60947, UL/CSA

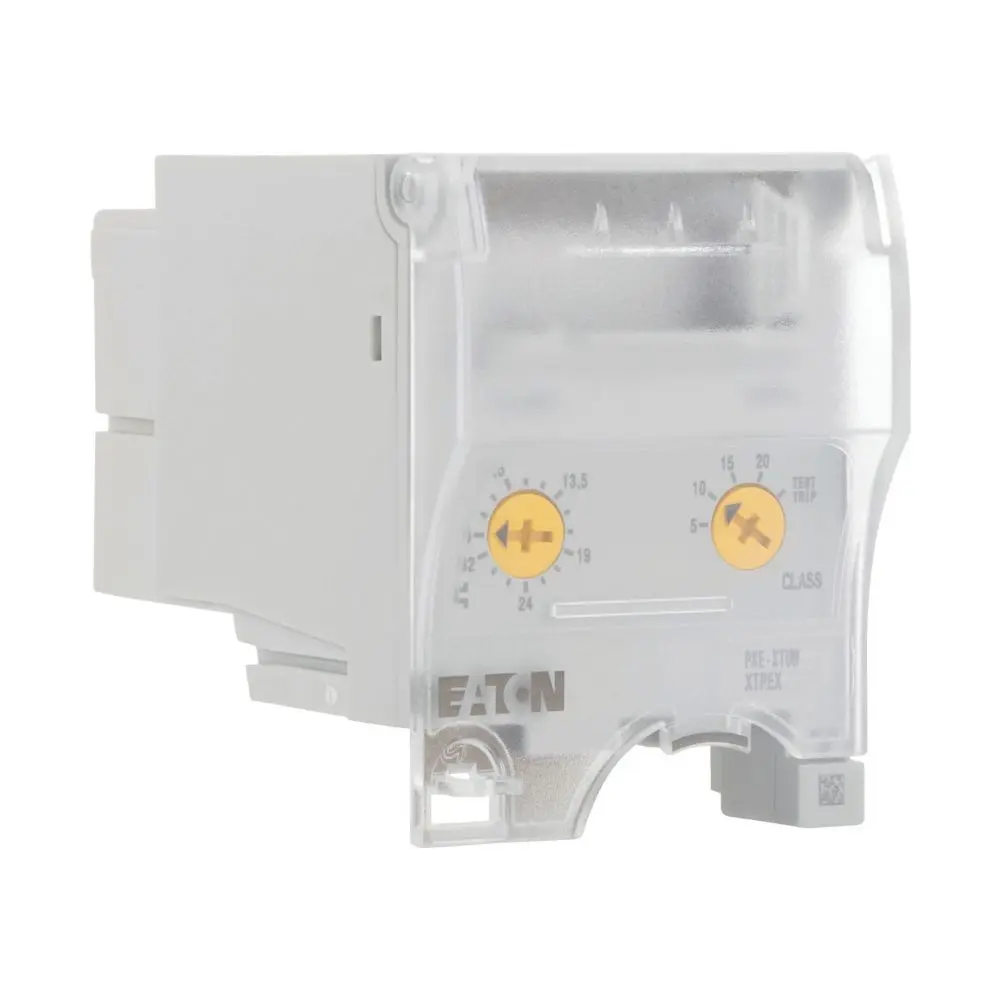

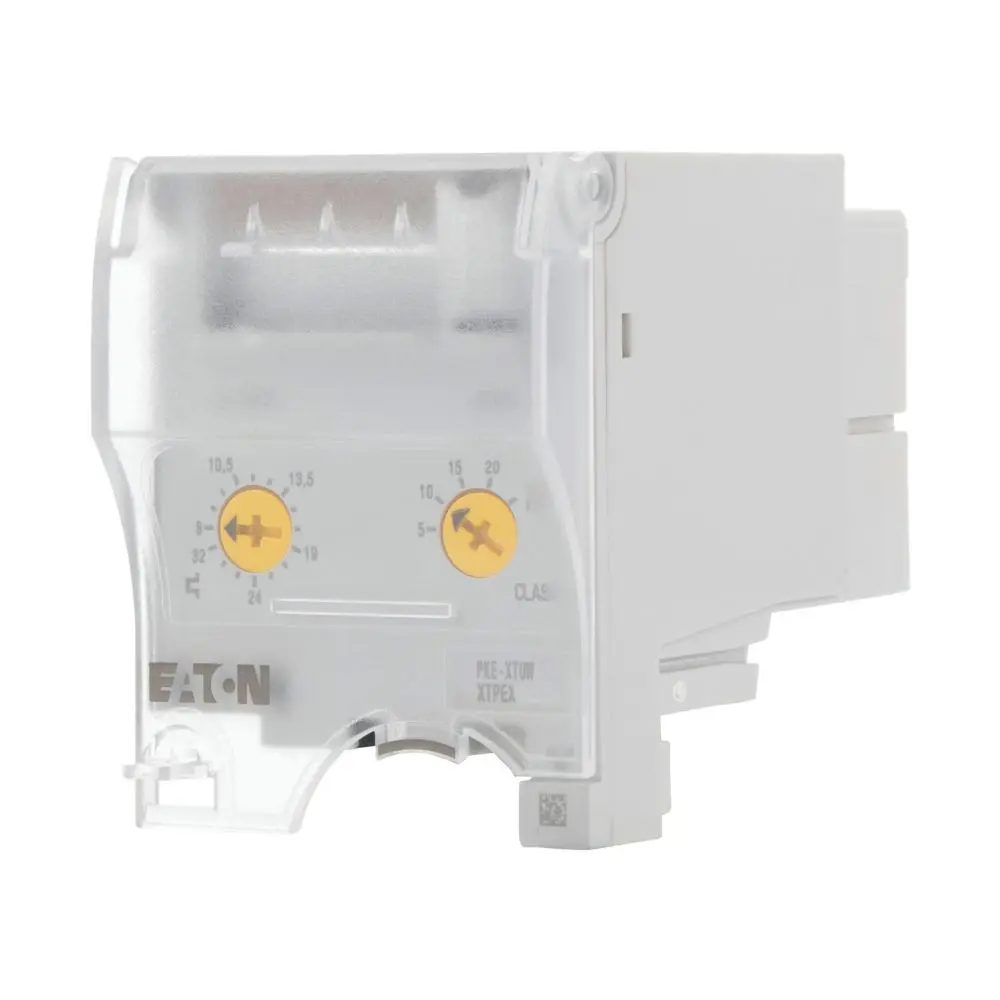

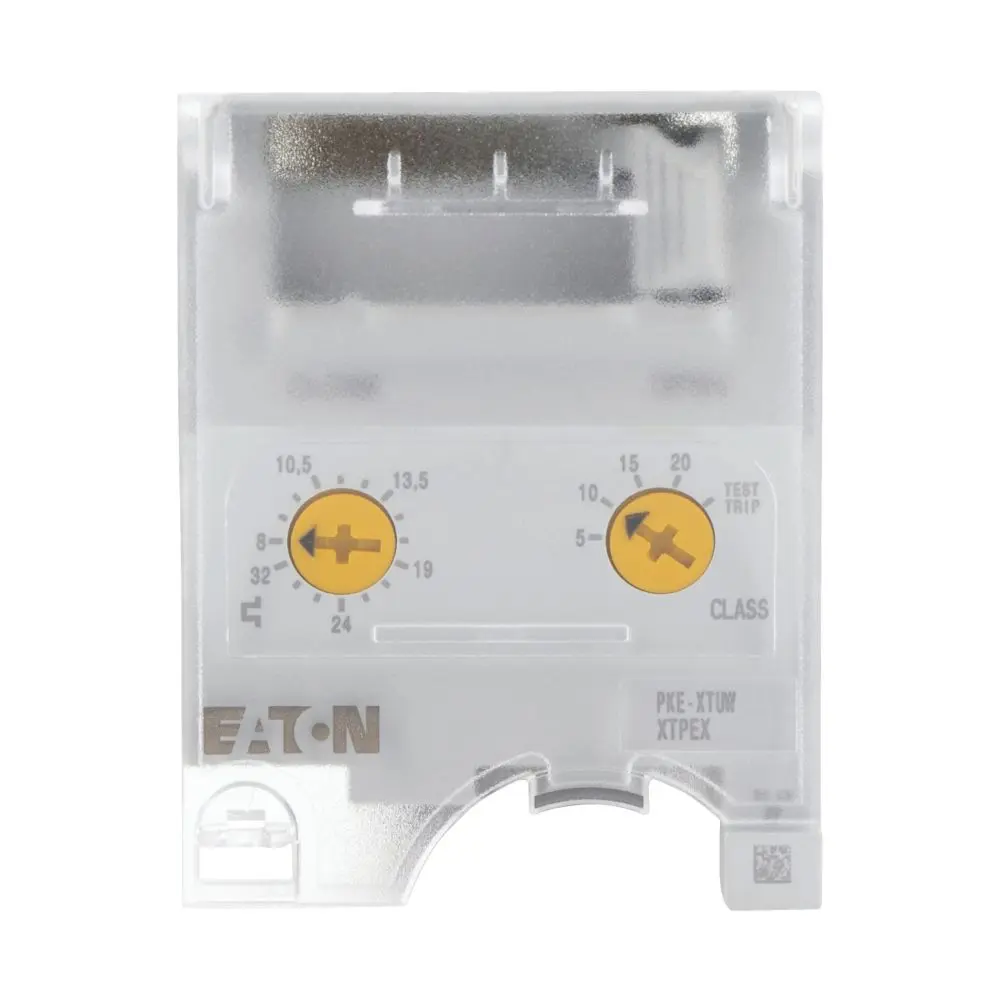

The Eaton XTPEXT032D is a motor-protective circuit breaker trip block with overload release, designed for use with PKE32 basic devices. It offers an adjustable setting range of 8.0–32.0 A and a rated current of 32 A, providing reliable motor protection against overload, short-circuit, and phase-failure conditions. With motor switching capacity up to 30 kW at 690 V AC and compliance with IEC/EN 60947, UL508, and CSA standards, it is well-suited for demanding industrial applications. The XTPEXT032D provides IP20 device protection with finger- and hand-safe terminals, and features a delayed fixed short-circuit release for robust fault protection.
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton |
|---|---|
| Model | XTPEXT032D |
| Old Moeller Part No. | PKE-XTUW-32 |
| Series | PKE |
| Product Type | Trip block with overload release |
| Poles | 3 |
| Rated Current | 32 A |
| Overload Release Setting Range | 8.0 – 32.0 A |
| Trip Type | Electronic (delayed short-circuit release) |
| For Use With | PKE32 basic device |
| SmartWire-DT Connection | No |
| Standards | IEC/EN 60947, VDE 0660, UL508, CSA C22.2 No.14 |
|---|---|
| Certifications | UL Listed, CSA Certified |
| Rated Operational Voltage (Ue) | 690 V AC |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Frequency | 40 – 60 Hz |
| Rated Uninterrupted Current (Iu = Ie) | 32 A |
| Motor Rating (AC-3) | 7.5 kW (230 V), 15 kW (400–440 V), 18.5 kW (500 V), 30 kW (690 V) |
| Motor Switching Capacity (AC-3, up to 690 V) | 32 A |
| Degree of Protection | Device IP20; Terminals IP00 |
| Touch Protection | Finger- and back-of-hand-proof (EN50274) |
| Climatic Proofing | Damp heat constant (IEC 60068-2-78), cyclic (IEC 60068-2-30) |
| Ambient Temperature | -20 °C to +55 °C (open), -20 °C to +40 °C (enclosed) |
| Storage Temperature | -40 °C to +80 °C |
| Altitude | Max. 2000 m |
| Mechanical Shock Resistance | 25 g (10 ms, IEC 60068-2-27) |
| Electrical Lifespan (AC-3, 400 V) | 0.05 × 10⁶ operations |
| Mechanical Lifespan | 0.05 × 10⁶ operations |
| Max. Operating Frequency | 60 ops/h |
| Short-Circuit Release | 15 × Ir, delayed approx. 60 ms |
| Short-Circuit Release Tolerance | ± 20% |
| Phase-Failure Sensitivity | Yes |
