Eaton / Moeller Series

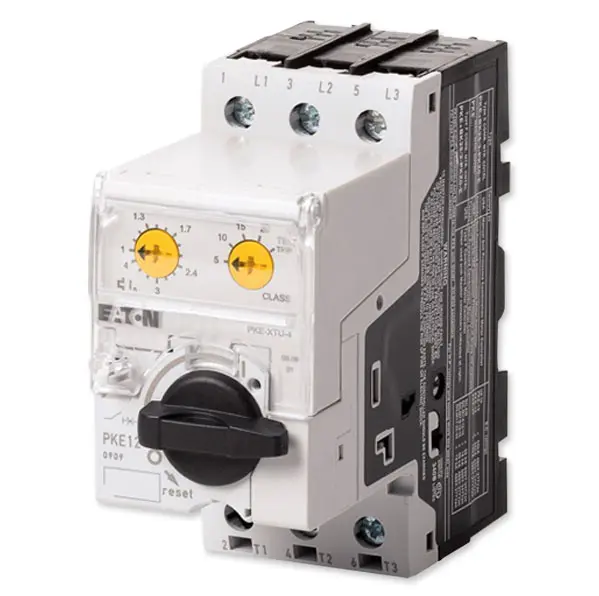

12A, 3P, motor-protective circuit breaker with lockable handle, electronic trip, IP20, IEC/EN 60947, UL/CSA
The Eaton XTPE012BCS is a 3-pole motor-protective circuit breaker with a lockable handle, providing protection for motors against overload, short-circuit, and single-phasing faults. It features an adjustable overload release setting range of 3.0–12.0 A with a rated operational voltage of up to 690 V AC and 32 A rated current capacity. Designed for industrial environments, it offers IP20 protection, finger- and hand-safe terminals, and compliance with IEC/EN 60947-4-1, UL508, and CSA standards. With high mechanical shock resistance, a maximum operating frequency of 60 operations per hour, and robust performance, the XTPE012BCS ensures dependable motor protection with global certifications.
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton |
|---|---|
| Model | XTPE012BCS |
| Old Moeller Part No. | PKE12/AK/XTU-12 |
| Series | PKE |
| Product Type | Motor-protective circuit breaker with lockable handle |
| Poles | 3 |
| Rated Current | 32 A or setting value of overcurrent release |
| Overload Release Setting Range | 3.0 – 12.0 A |
| Trip Type | Electronic with fixed short-circuit release |
| Coordination Types | Type 1 & Type 2 |
| Handle | Lockable |
| Standards | IEC/EN 60947-4-1, VDE 0660, UL508, CSA C22.2 No.14 |
|---|---|
| Certifications | UL Listed, CSA Certified |
| Rated Operational Voltage (Ue) | 690 V AC |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Frequency | 40 – 60 Hz |
| Rated Uninterrupted Current (Iu = Ie) | 32 A or setting value |
| Motor Switching Capacity (AC-3, up to 690 V) | 32 A |
| Degree of Protection | Device IP20; Terminals IP00 |
| Touch Protection | Finger- and back-of-hand-proof (EN50274) |
| Climatic Proofing | Damp heat constant (IEC 60068-2-78), cyclic (IEC 60068-2-30) |
| Ambient Temperature | -25 °C to +55 °C (open), -25 °C to +40 °C (enclosed) |
| Storage Temperature | -25 °C to +80 °C |
| Altitude | Max. 2000 m |
| Mechanical Shock Resistance | 25 g (10 ms, IEC 60068-2-27) |
| Electrical Lifespan (AC-3, 400 V) | 0.05 × 10⁶ operations |
| Mechanical Lifespan | 0.05 × 10⁶ operations |
| Max. Operating Frequency | 60 ops/h |
| Terminal Capacity (Solid/Flexible) | 1 × (1–6 mm²) |
| Terminal Capacity (AWG) | 18 – 10 AWG |
| Tightening Torque | Main: 1.7 Nm; Auxiliary: 1 Nm |
| Heat Dissipation (3-pole) | 6 W |
| Phase-Failure Sensitivity | Yes (IEC/EN 60947-4-1, VDE 0660-102) |
