Eaton / Moeller Series
95–125 A, 1NO–1NC, thermal overload relay, G-frame, short-circuit protection up to 600 VAC, UL/CSA

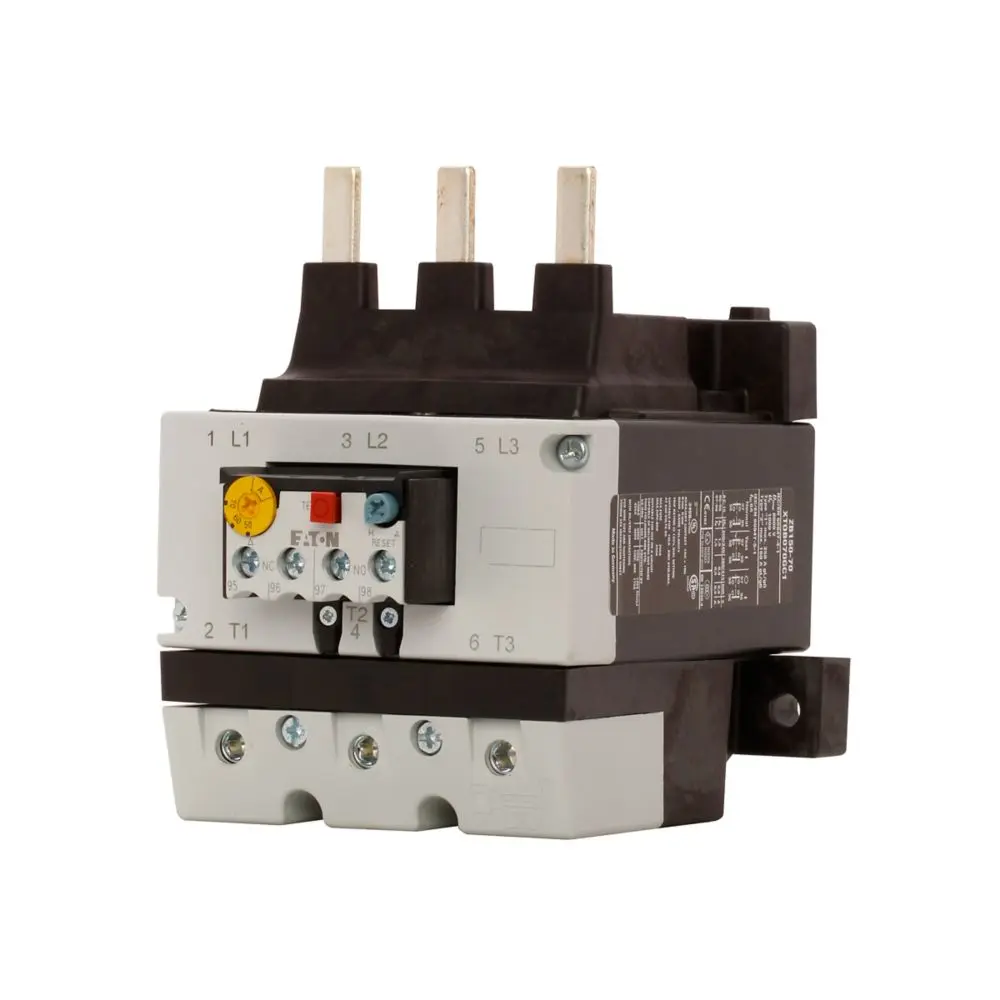

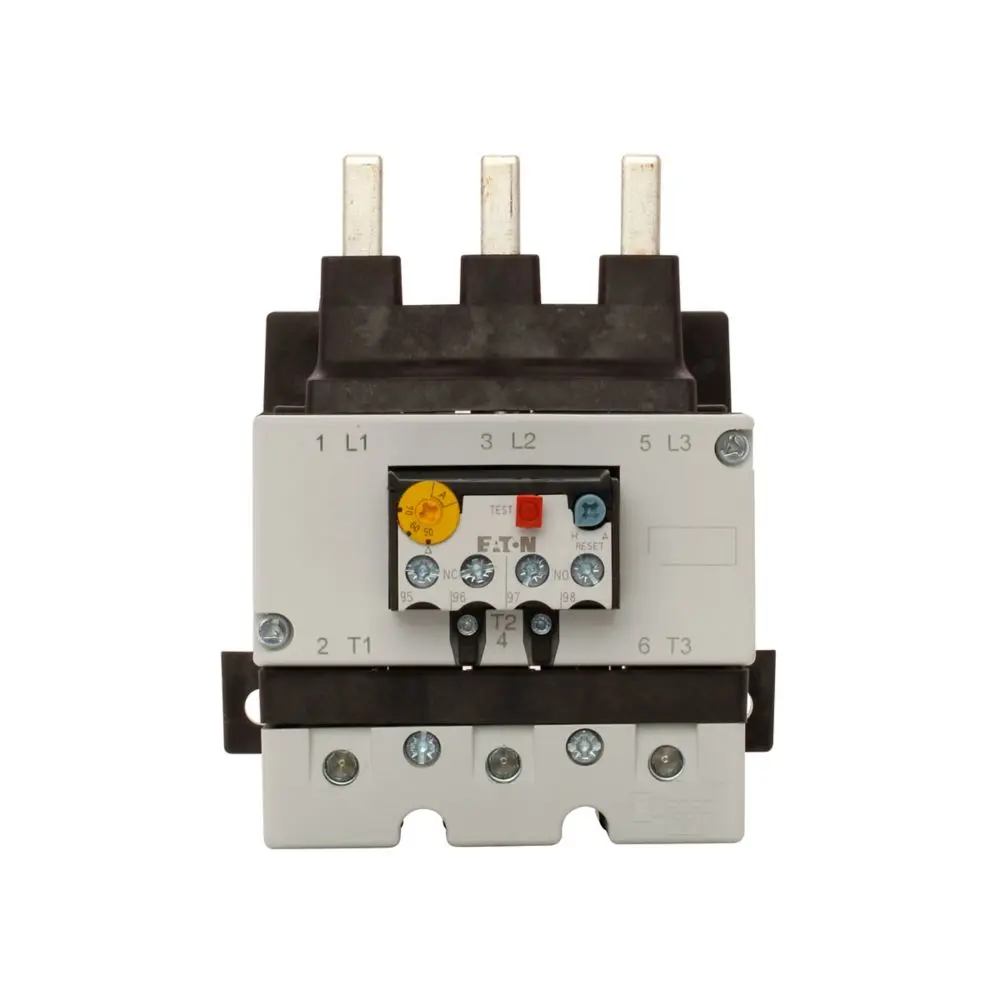

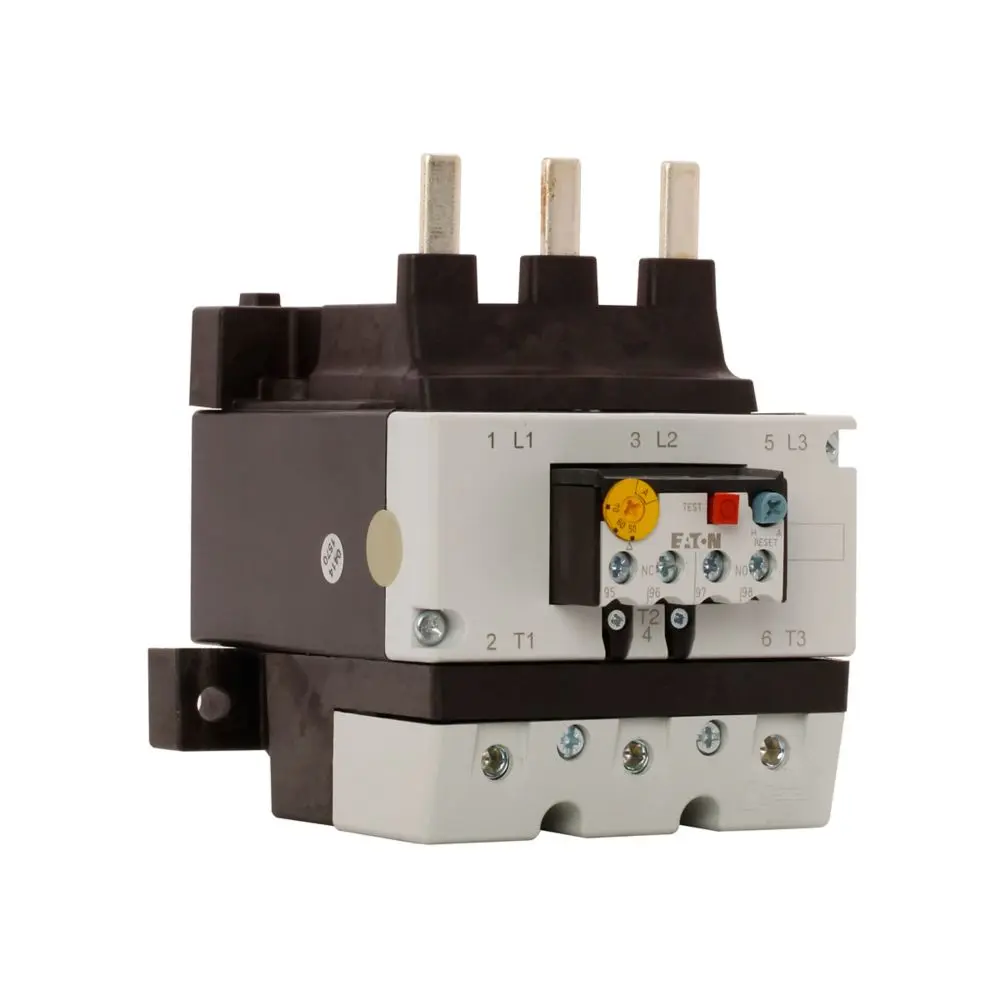

The Eaton XTOB125GC1 is a G-frame IEC thermal overload relay engineered for accurate and reliable motor protection within an adjustable current range of 95 – 125 A. It includes one normally open and one normally closed auxiliary contact, allowing versatile integration into control and monitoring circuits. Designed for dependable short-circuit protection up to 600 VAC, this relay supports 500 A Class J fuses and 500 A circuit breakers. With UL and CSA certifications, the XTOB125GC1 ensures compliance with international safety and performance standards, making it ideal for industrial motor control and protection applications.
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton |
|---|---|
| Catalog Number | XTOB125GC1 |
| Product Name | XT IEC Thermal Overload Relay |
| Product Type | Thermal Overload Relay |
| Frame | G-frame |
| Auxiliary Contacts | 1NO–1NC |
| Mounting | Direct |
| Adjustable Current Range | 95 – 125 A |
|---|---|
| Short Circuit Protection (Max Voltage) | 600 VAC |
| Fuse Rating | 500 A Class J |
| Circuit Breaker Rating | 500 A |
| Certifications | UL Listed; CSA Certified |
