Eaton / Moeller Series
4A, 3P, Type E DOL motor starter, 220/240 V AC control, North America compliant, IEC/EN 60947-4-1 / VDE 0660

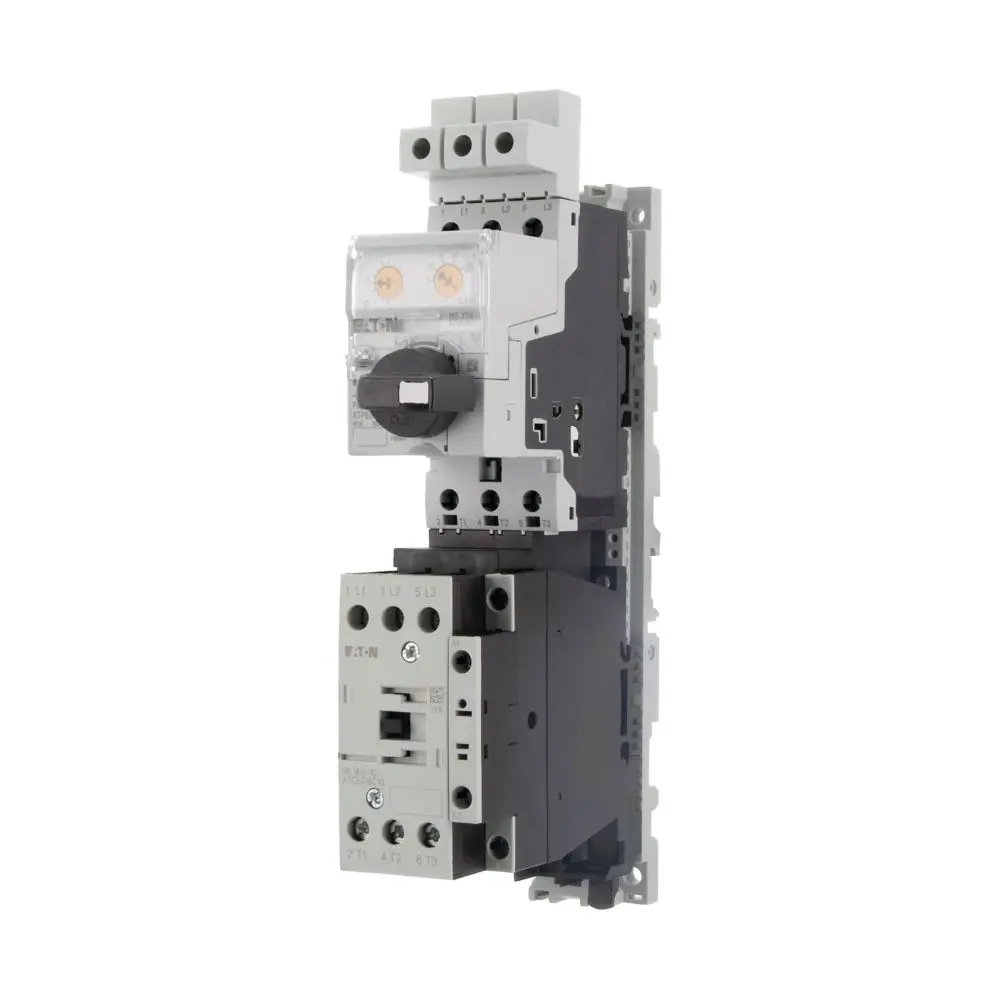

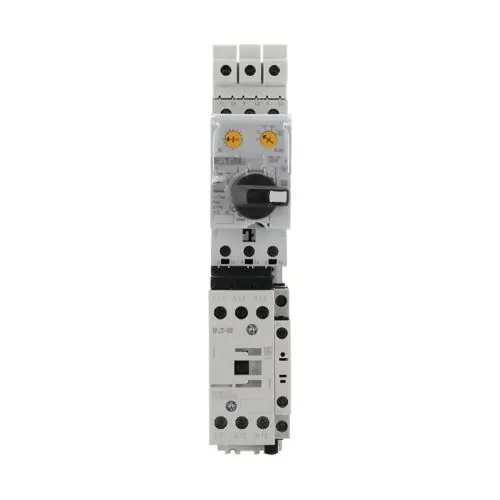

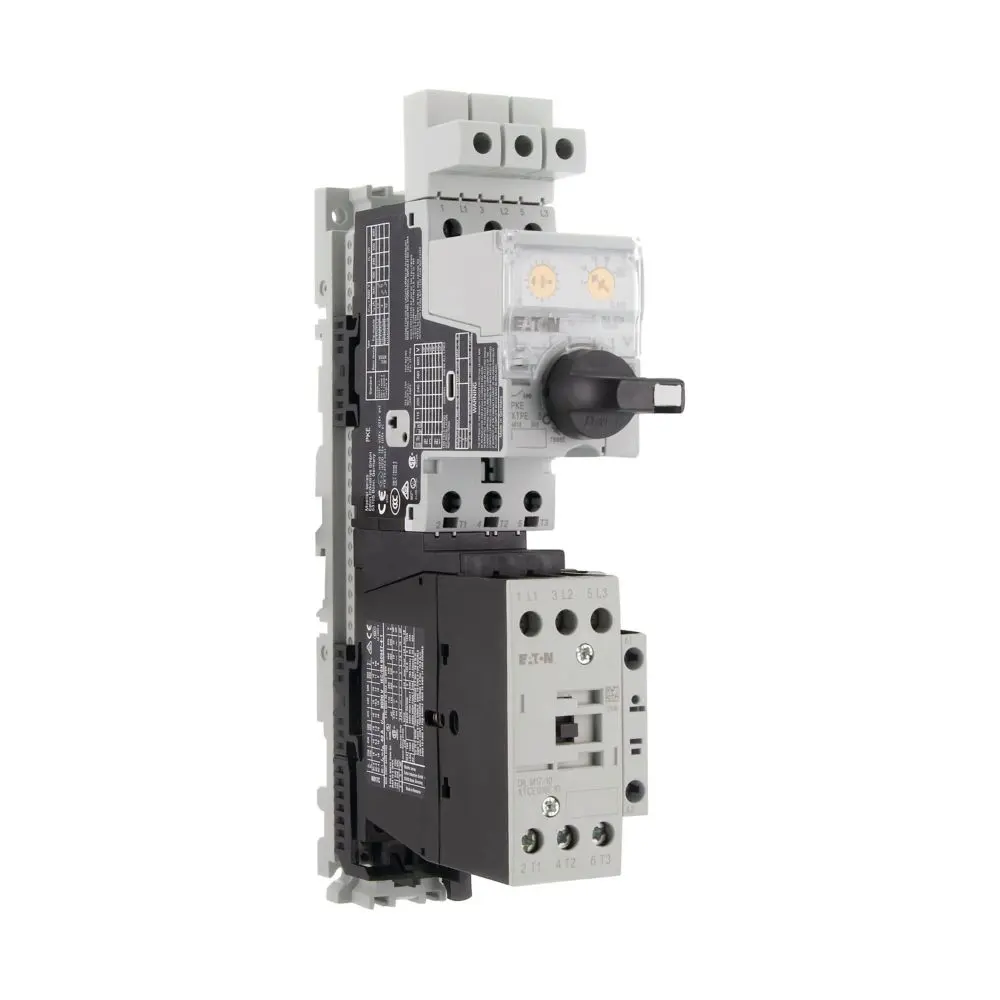

The Eaton XTFCE004BCCSB is a 4 A, 3-pole Type E Direct-On-Line (DOL) motor starter engineered for North American motor control applications. It provides protection and control for motors up to 2 HP at 460–480 V AC (0.75 HP at 200–240 V AC) and features an adjustable overload release range of 1 – 4 A with a non-delayed short-circuit release of 168 A. Operating on a 220 V AC (50 Hz) or 240 V AC (60 Hz) control voltage, this complete device integrates a PKE motor-protective circuit-breaker, DILM17-10 contactor, and electrical contact modules, pre-assembled on an adapter plate for fast installation.
The XTFCE004BCCSB starter is rated for 18 kA short-circuit current at 240–480 V AC, provides Type 2 coordination, and carries an IP20 degree of protection. Built in accordance with IEC/EN 60947-4-1 and VDE 0660, this compact, ready-to-install unit ensures reliable motor starting performance in commercial and industrial control panels.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton |
|---|---|
| Model | XTFCE004BCCSB |
| Series | MSC-DE |
| Product Type | Type E DOL Motor Starter |
| Rated Operational Current (Ie) | 4 A |
| Motor Rating (200–240 V AC) | 0.75 HP |
| Motor Rating (460–480 V AC) | 2 HP |
| Setting Range (Overload Release Ir) | 1 – 4 A |
| Trip Type | Thermal-magnetic |
| Control Voltage | 220 V AC (50 Hz) / 240 V AC (60 Hz) |
| Poles | 3 |
| Coordination Type | Type 2 |
| Frame Size | 4 A frame (MSC series) |
| Application Region | North America |
| Rated Operational Voltage (Ue) | 208 – 600 V AC |
|---|---|
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Short-Circuit Current (Iq) | 18 kA @ 240–480 V AC |
| Short-Circuit Release (Irm) | 168 A (non-delayed) |
| Overvoltage Category / Pollution Degree | III / 3 |
| Rated Operation Power (AC-3, 400 V) | 7.5 kW |
| Wiring Type | Screw connection |
| Protection Degree | IP20 |
| Bus Communication Compatibility | Not SmartWire-DT compatible |
| Applicable Standards | IEC/EN 60947-4-1, VDE 0660 |
| Mounting | Top-hat rail adapter plate |
| Heat Dissipation | 0 W (nominal) |
| Voltage Type for Actuating | AC |
