Eaton / Moeller Series

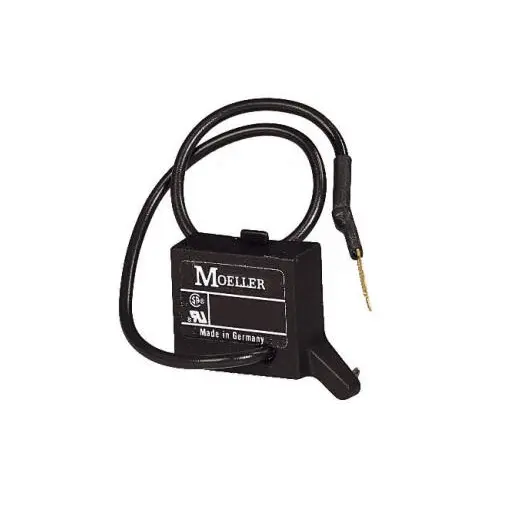

Eaton DILE Varistor suppressor, 48VAC, 16mm x 29mm x 33mm, 0.01kg
Eaton Moeller® series DILE Accessory Varistor suppressor circuit, Catalog Number 010320, Model Code VGDILE48, EAN 4015080103202, dimensions 16 mm x 29 mm x 33 mm, weight 0.01 kg, certified under multiple standards.
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Specification | Value |
|---|---|
| Product Name | Eaton Moeller® series DILE Accessory Varistor suppressor circuit |
| Catalog Number | 010320 |
| Model Code | VGDILE48 |
| EAN | 4015080103202 |
| Product Length/Depth | 16 mm |
| Product Height | 29 mm |
| Product Width | 33 mm |
| Product Weight | 0.01 kg |
| Certifications | CSA File No.: 012528, IEC/EN 60947-4-1, UL 508, CSA, CSA-C22.2 No. 14-05, CE, UL File No.: E29096, UL Category Control No.: NLDX |
| Specification | Value |
|---|---|
| Temperature Rise | Panel builder's responsibility |
| Short-Circuit Rating | Panel builder's responsibility |
| Electromagnetic Compatibility | Panel builder's responsibility |
| Mechanical Function | Meets requirements if IL is observed |
| Corrosion Resistance | Meets product standard's requirements |
| Ambient Operating Temperature - Max | 50 °C |
| Ambient Operating Temperature - Min | -25 °C |
| Rated Control Supply Voltage (AC, 50 Hz - Max) | 48 V |
| Rated Control Supply Voltage (AC, 50 Hz - Min) | 24 V |
| Rated Control Supply Voltage (AC, 60 Hz - Max) | 48 V |
| Rated Control Supply Voltage (AC, 60 Hz - Min) | 24 V |
