Eaton / Moeller Series

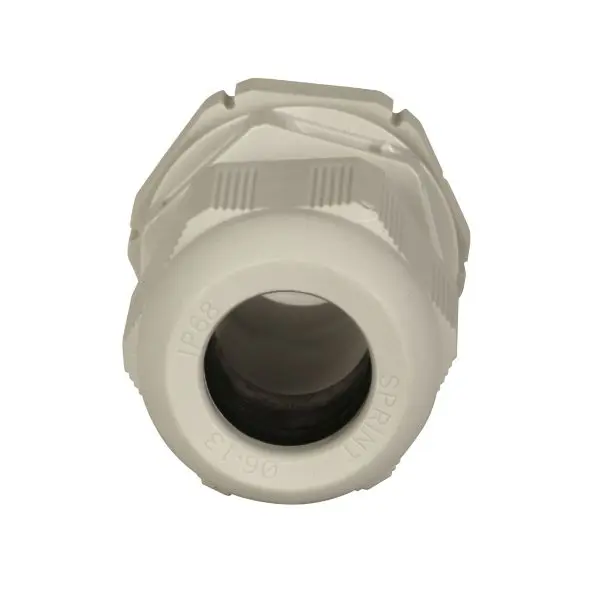

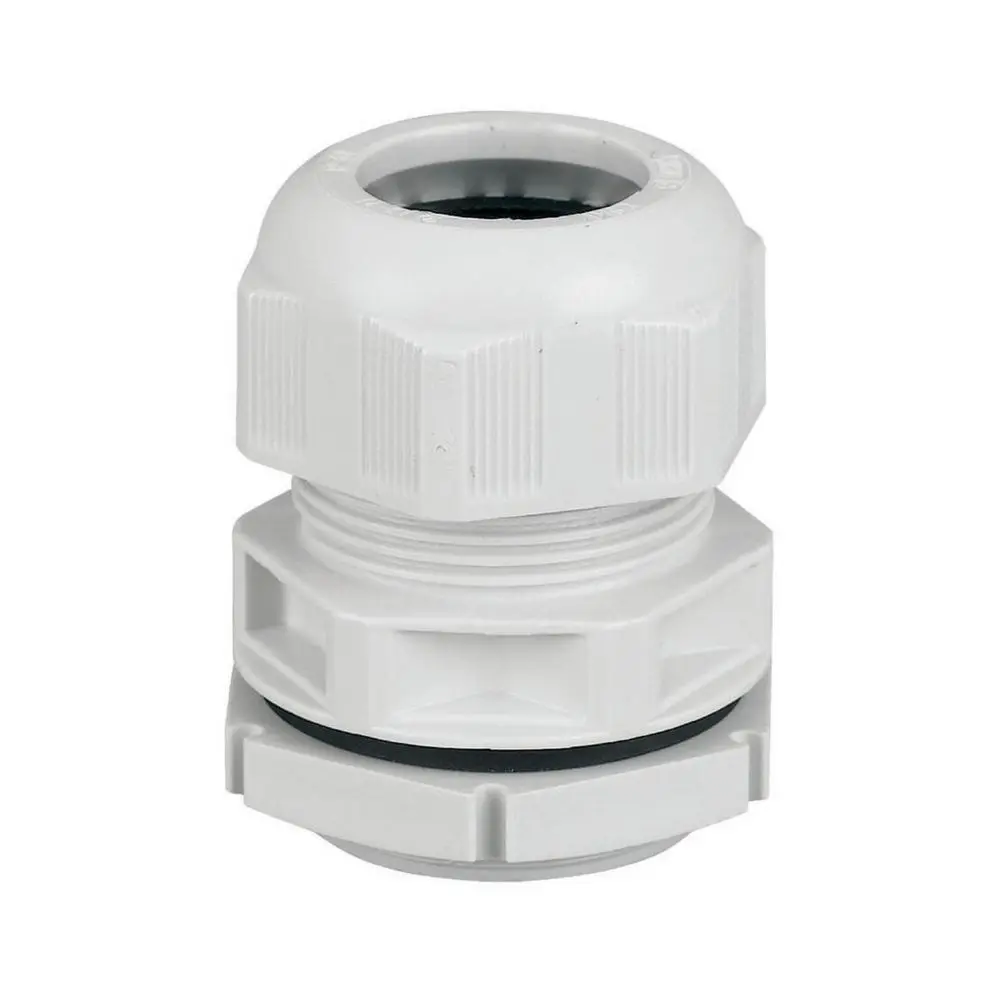

Cable gland, M20, plastic (PA), RAL 7035 gray, IP68, Ø6–13 mm, with locknut and strain relief, IEC/EN 60947 / VDE 0660
Eaton Moeller V-M20 is a straight cable gland designed for general switchboard and LV switchgear applications. Made of halogen-free polyamide (PA) in light gray (RAL 7035), it supports cable diameters from 6 mm to 13 mm and provides IP68 protection with integrated strain relief and locknut. The gland ensures secure, moisture-resistant cable entry in industrial and electrical installations. It complies with IEC/EN 60947, VDE 0660, and IEC/EN 61439 standards, offering flame-retardant performance (UL94 V2) and resistance to damp heat, corrosion, and mechanical shock. Operating temperature ranges from –20 °C to +120 °C (short-term).
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller |
|---|---|
| Part No. | V-M20 |
| Catalog No. | 206910 |
| Product Type | Cable gland |
| Model | Straight |
| Thread Type | Metric (M20 × 1.5) |
| Thread Length | 10 mm |
| Wrench Width | 30 mm |
| Outer Cable Diameter | 6 – 13 mm |
| Material | Polyamide (PA), halogen-free |
| Color | Gray (RAL 7035) |
| Mounting Position | As required |
| Accessory Type | General switchboard accessory / Cable management |
| Rated Insulation Voltage Ui | 500 V |
|---|---|
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Degree of Protection (IP) | IP68 |
| NEMA Rating | 1, 3R, 4X, 12, 13 (UL/CSA) |
| Operating Temperature Range | –20 °C to +120 °C (short-term) |
| Ambient Temperature (IEC/EN 61439) | –25 °C to +70 °C |
| Sealing Type | Cut-out ring |
| Protection Features | Shock-resistant, with strain relief and locknut |
| Surface Protection | Untreated |
| Climatic Proofing | Damp-heat cyclic (IEC 60068-2-30) / constant (IEC 60068-2-78) |
| Flame Retardancy | Glow-wire test 750 °C (EN 60695-2-11); UL94 V2 |
| Compliance | IEC/EN 60947, VDE 0660, IEC/EN 61439 verified |
