Eaton / Moeller Series

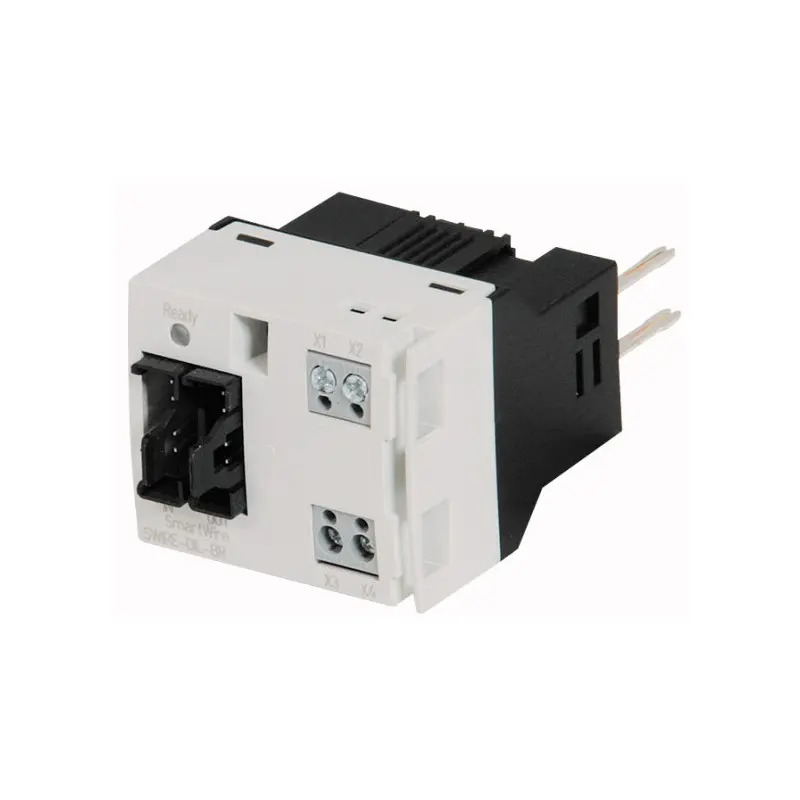

SmartWire module for DILM
Coupling module, SmartWire-DT, for contactors, DILM. Part no. SWIRE-DIL, Catalog No. 107028. Designed for assembling on contactors DILM(C)7…DILM(C)38, DILA…, DIMP20. One module is necessary per contactor. Connection to SmartWire-Gateway as module. Includes 1 digital input for potential-free contact and signaling contactor switch position.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Specification | Value |
|---|---|
| Part No. | SWIRE-DIL |
| Catalog No. | 107028 |
| Weight | 0.036 kg |

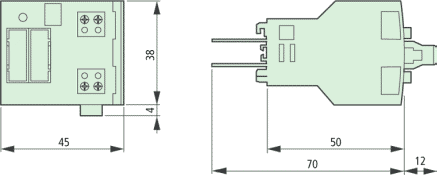

| Dimensions (W x H x D) | 45 x 44 x 81 mm |
| Connection Type | 6-pole Plug |
| Max. Number of SmartWire Modules | 16 per rung |
| Max. Cable Length | 4 m |
| Specification | Value |
|---|---|
| Standards | IEC/EN 60947, EN 55011, EN 55022, IEC/EN 61000-4, IEC/EN 60068-2-27 |
| Max. Current Consumption | Per SmartWire chain |
| Protection Type | IP20 |
| Overvoltage Category | 2 |
| Ambient Temperature (Operation) | -25°C to +60°C |
| Ambient Temperature (Storage) | -25°C to +70°C |
| Max. Tightening Torque | 0.5 Nm |
| Electromagnetic Compatibility | Class A |
| Relay Outputs | 1 |
| Rated Voltage (Own Supply) | 17 V DC |
| Input Current at “1” Signal | 5 mA |
| Conventional Thermal Current | 4 A |
