Eaton / Moeller Series

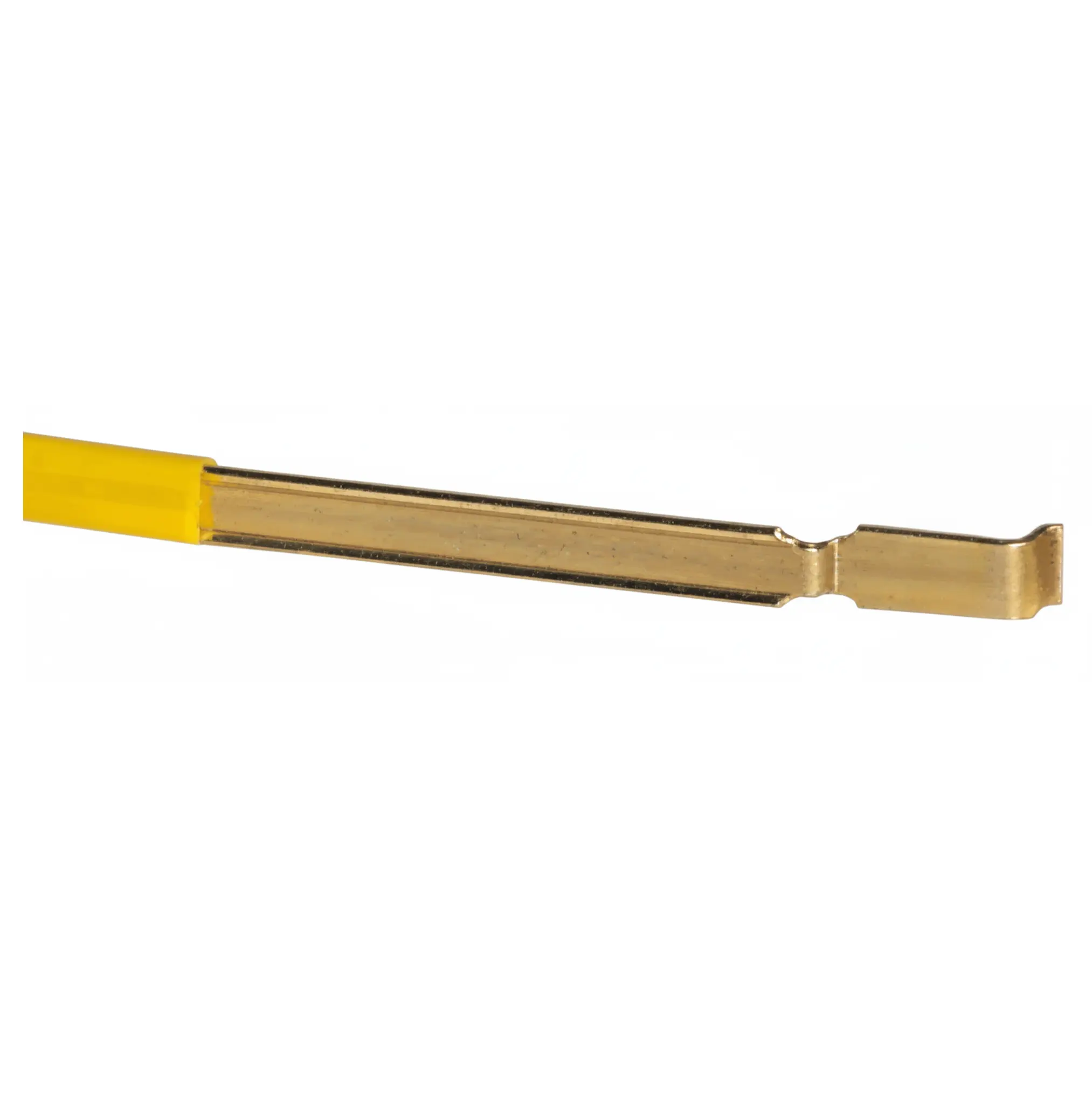

Control terminal, tap-off accessory, 2.8 mm fast-on, 1A max draw
The Moeller ST-PKZ2 is a control terminal designed for line voltage tap-off applications between a PKZ2 motor protector and a contactor in combination units. It provides easy access to the load-side terminals of the PKZ2/SM motor protector for tapping off control circuits. Compatible with 2.8 mm fast-on connectors (insulated or non-insulated), it supports AWG 16 to 20 copper conductors. The maximum allowable current draw is 1 A or 15% of the thermal dial (FLC) setting—whichever is lower. Users must adjust the thermal dial to account for the additional current. Ideal for compact motor starter assemblies requiring integrated control circuit access.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Moeller |
|---|---|
| Part Number | 010998 |
| Model | ST-PKZ2 |
| Product Type | Control Terminal |
| Application | Tap-off for control circuit |
| Compatible Devices | PKZ2 motor protector, S-PKZ2 contactor |
| Control Circuit Connection | 2.8 mm fast-on connectors (insulated/non-insulated) |
|---|---|
| Conductor Size | AWG 16–20, Cu only |
| Maximum Current Draw | 1 A or 15% of FLC (whichever is less) |
| Mounting | Between PKZ2 and S-PKZ2 in combination unit |
| Adjustment Note | Increase FLC dial to compensate for tap-off load |
| Compliance | UL Compliant |
