Eaton

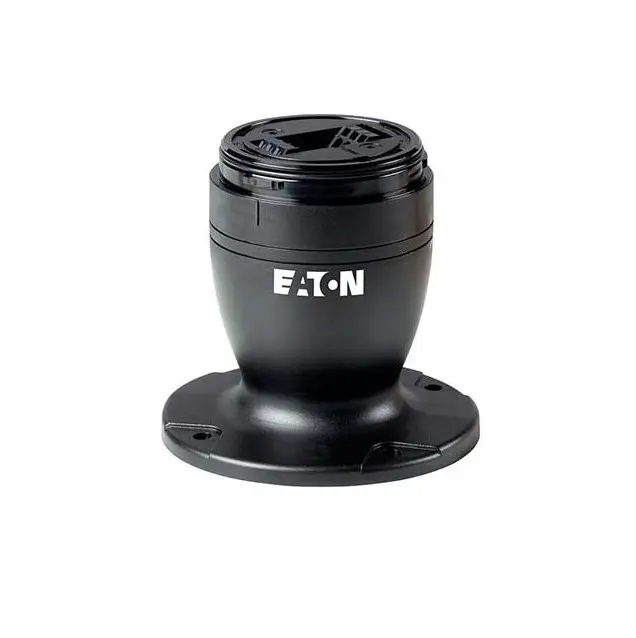

SL7 base module, horizontal mount, black
The Eaton Moeller SL7-CB-EMH is a horizontal mounting base module for SL7 stacklights. Designed to accommodate up to 5 signal elements, this unit features pre-assembled fixing screws and spring-loaded terminals for easy installation. The rugged polycarbonate construction ensures durability, while environmental protection ratings of IP66 and UL Type 4/4X/13 make it suitable for industrial applications. Compatible with SL7-L, SL7-BL, SL7-FL, and SL7-AP modules, it operates reliably under harsh conditions with temperature resistance from –30°C to +60°C.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Model | SL7-CB-EMH |
|---|---|
| Mounting Type | Horizontal |
| Included Components | Cover, Built-in Fixing Screws |
| Terminal Type | Spring-Loaded |
| Maximum Modules | 5 (standard base) |
| Compatible Modules | SL7-L, SL7-BL, SL7-FL, SL7-AP |
| Color | Black |
| Standards | IEC/EN 60947-5-1 |
| Lens Colors Supported | Blue, Green, Red, Clear, Yellow, Amber |
| Shock Resistance | 15g, 11 ms (IEC 68-2-27) |
| Vibration Resistance | 1g, 10–150 Hz, 20 sweeps (IEC 68-2-6) |
| Operating Temperature | –30°C to +60°C (–22°F to +140°F) |
| Storage Temperature | –30°C to +85°C (–22°F to +185°F) |
| Protection Ratings | IP66, UL Type 4/4X/13 |
| Materials | Polycarbonate (Base, Cover, Lenses), Aluminum (Tubes) |
| Terminal Capacity | 0.13–2.5 mm² (solid/flexible), 0.25–1.5 mm² (ferrule), AWG 24–14 |
| Rated Impulse Voltage (Uimp) | 4000 Vac |
| Rated Insulation Voltage (Ui) | 250V |
| Overvoltage Category / Pollution Degree | III / 3 |
