Eaton / Moeller Series
2750 Hz tone module, 110–230V
Eaton Moeller SL-AP110-230 is an acoustic tone module for stack light systems, operating at 110–230V AC/DC with a frequency of 2750 Hz. Produces 67 dB at 110V and 73 dB at 230V at a distance of 60 cm. Configured using built-in jumpers for proper module sequencing in a stack (up to 5 modules). Designed for IP20 protection and compliant with IEC/EN 60947. Suitable for industrial signaling in stack light assemblies.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Model | SL-AP110-230 |
|---|---|
| Device Type | Acoustic Tone Module |
| Voltage | 110–230V AC/DC |
| Current | 4–8 mA |
| Sound Frequency | 2750 Hz |
| Sound Level @ 60cm | 67 dB (110V), 73 dB (230V) |

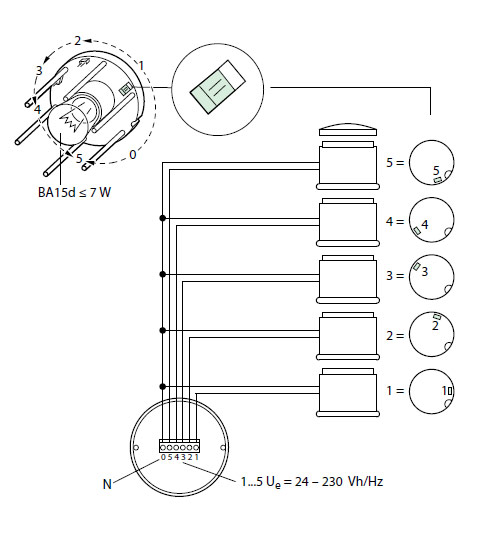

| Jumper Setting | Positioned per stack order (1 to 5) |
| Max Stack Modules | 5 |
| Standards | IEC/EN 60947 |
| IP Rating | IP20 (Module), IP65 with SL-IP65 Gasket |
| Ambient Temperature Range | -25°C to +50°C |
| Mounting Position | As required |
| Shock Resistance | >15g, 11ms half-sinusoidal |
| Impulse Withstand Voltage | 4000V AC |
| Rated Insulation Voltage | 250V |
| Overvoltage / Pollution Degree | III / 3 |
| Terminal Capacity (Solid) | 0.75 – 2.5 mm² |
| Terminal Capacity (Stranded) | 0.5 – 2.5 mm² |
