Eaton / Moeller Series

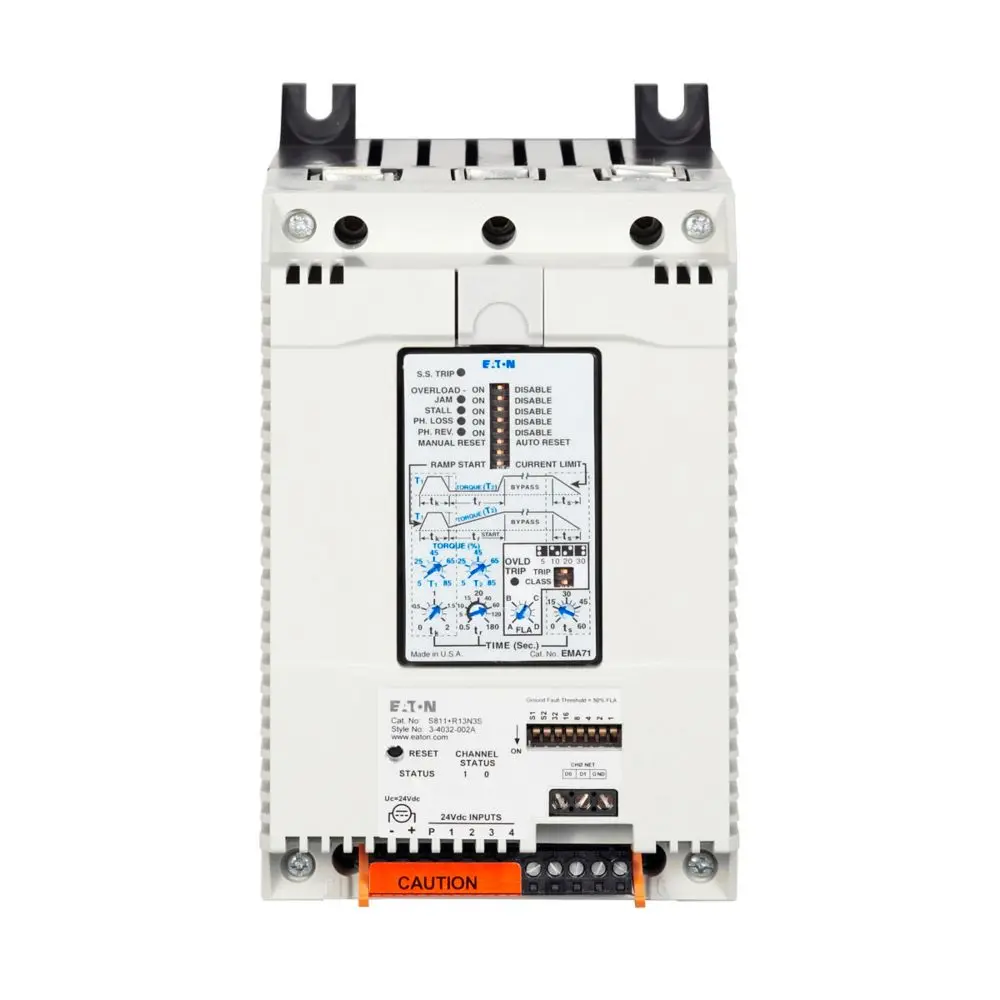

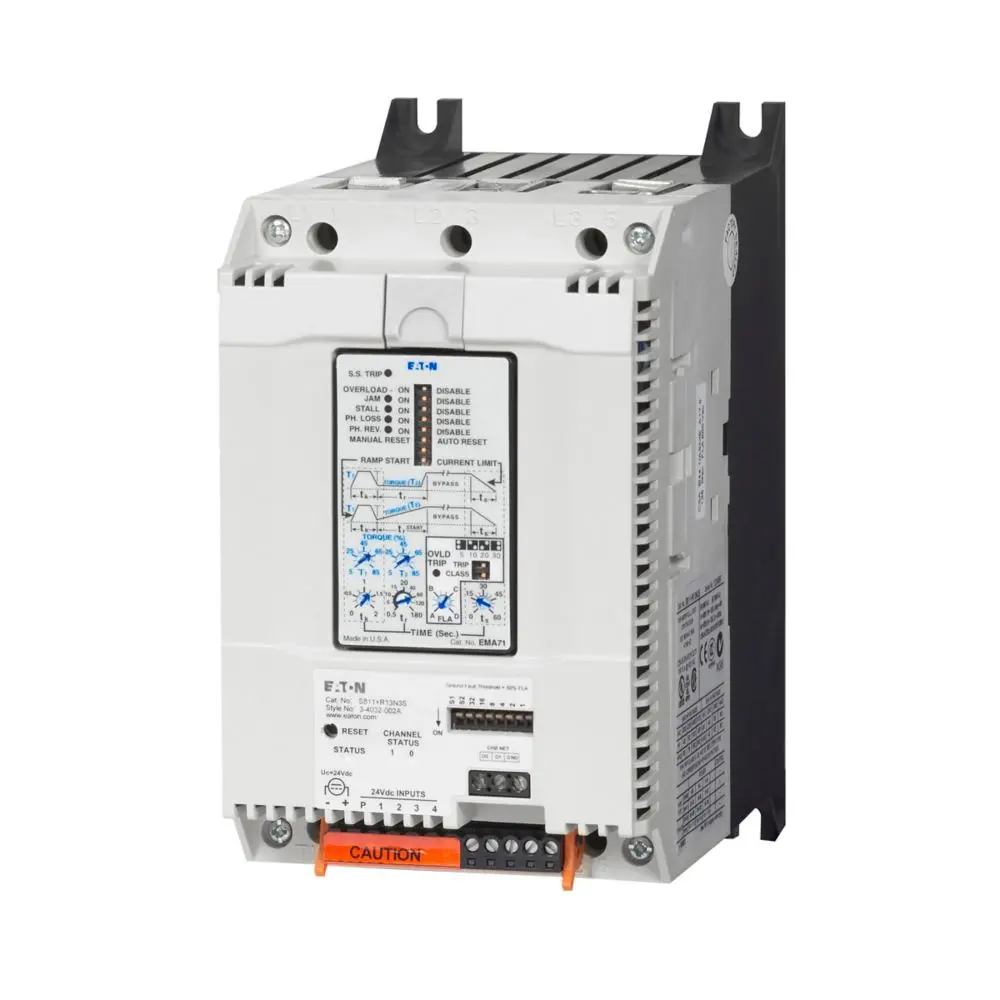

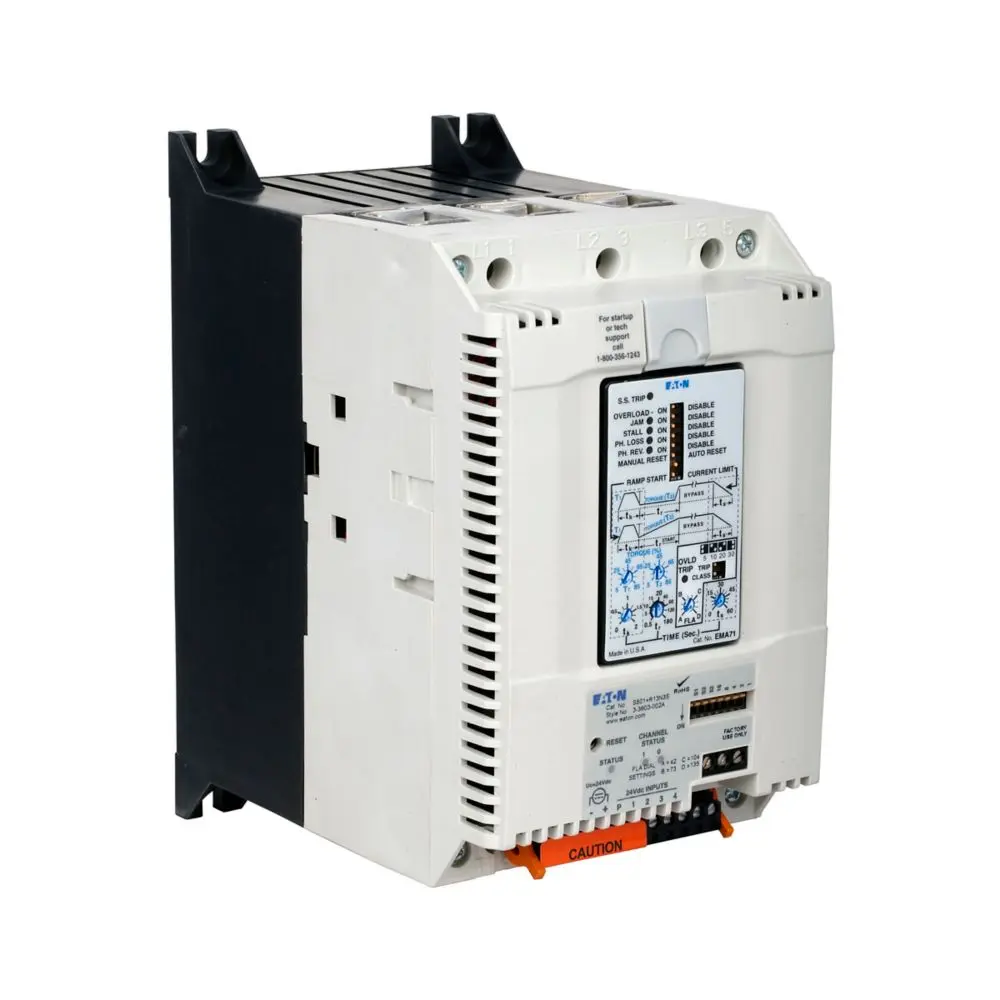

Soft Starter, 110MM 135A
Eaton S801+ soft starter, 135 A, R-frame, Three-pole, 24 V power, 200-600 V operating voltage, 47-63 Hz, 1-2 conductors, #22-14 AWG wire, 120 Vdc, 240 Vac, Used with: 3ph motors, Modbus RTU, NEMA 0, LCD display, -30°C to -50°C.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Specification | Value |
|---|---|
| Product Name | Eaton S801+ soft starter |
| Catalog Number | S801+R13N3S |
| UPC | 786685558813 |
| Product Length/Depth | 11.1 in |
| Product Height | 11.7 in |
| Product Width | 8.7 in |
| Product Weight | 12.4 lb |
| Compliance | CE Marked |
| Certifications | CSA Certified, IEC 947, EN 60947-4-2, CSA Certified for Elevator Duty |
| Specification | Value |
|---|---|
| Used With | Three-phase motors |
| Amperage Rating | 135A |
| Display Material | LCD |
| AC Current - Max | 240 Vac |
| DC Current - Max | 120 Vdc |
| Number of Poles | Three-pole |
| Type | Soft starter |
| Frequency Rating | 47-63 Hz |
| Power Supply | 24 V |
| Frame Size | R |
| Operating Temperature - Max | 50 °C |
| Communication | Modbus RTU |
| NEMA Rating | NEMA 0 |
| Operating Voltage | 200-600 V |
| Wire Size | #22-14 AWG |
| Operating Temperature - Min | -30 °C |
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
