Eaton / Moeller Series

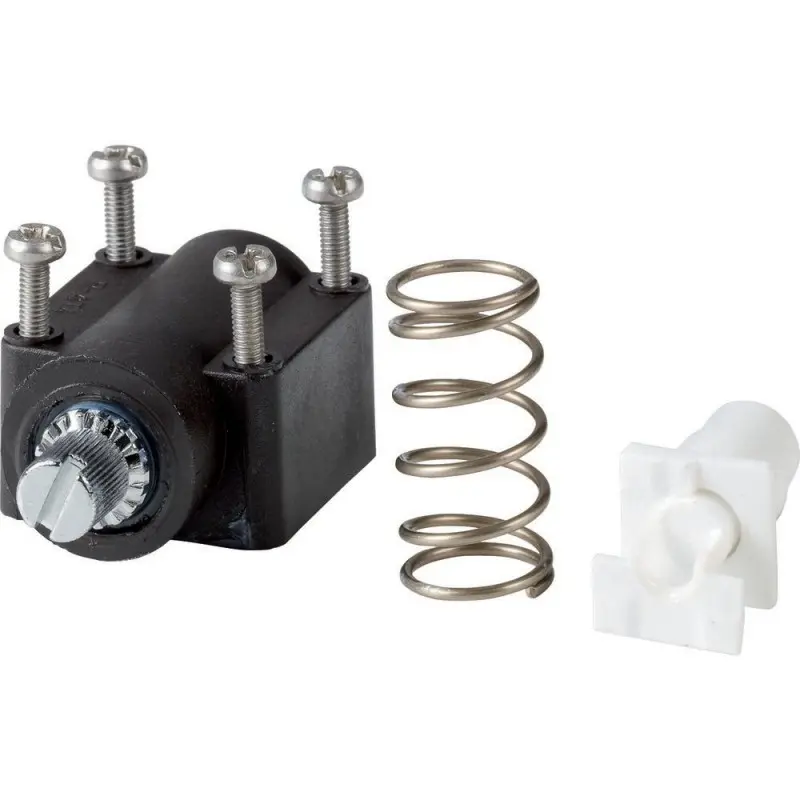

Rotary drive head, 15°/50° actuation angle, 3 m/s max. lateral speed, 90° rotatable, for I-AT4 and IA-AT4 enclosures
Eaton Moeller R-AT4 is a rotary drive head designed to complete insulated enclosures I-AT4 and IA-AT4 in the AT4 system. It is used in conjunction with H-series actuators and provides direction-dependent contact operation. The R-AT4 supports a maximum lateral operating speed of 3 m/s and allows actuation angles of 15° and 50°. The head can be rotated at 90° intervals to match specific approach directions. Built for industrial position-switch applications, it complies with IEC/EN 61439 verification standards for mechanical integrity, corrosion resistance, and thermal stability, and operates within a −25 °C to +70 °C ambient temperature range.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton |
|---|---|
| Part No. | R-AT4 |
| Catalog No. | 095687 |
| Product Type | Rotary drive head |
| Design Standard | EN 50041 Form C |
| Angle of Actuation | 15° / 50° |
| Maximum Operating Speed (lateral) | 3 m/s |
| Head Rotation | 90° intervals (adjustable) |
| Compatible With | I-AT4, IA-AT4 enclosures (with H-actuators) |
| Mounting Type | For flush mounting in insulated enclosure |
| Type of Control Element | Rotating axis |
| Degree of Protection (IP) | Dependent on mounting enclosure (up to IP65) |
|---|---|
| Operating Ambient Temperature | −25 °C to +70 °C |
| Material | Insulated (plastic construction) |
| Rated Operational Current (In) | 0 A (non-current-carrying mechanical component) |
| Heat Dissipation | 0 W (non-electrical component) |
| Resistance Properties | Corrosion-resistant, thermally stable, heat and fire resistant |
| UV Resistance | Available on request |
| Compliance | IEC/EN 61439 verified for mechanical and thermal performance |
