Eaton / Moeller Series
15.5A, 3P, wiring set, tool-less plug connection for reversing starter, IEC/UL/CSA/CE

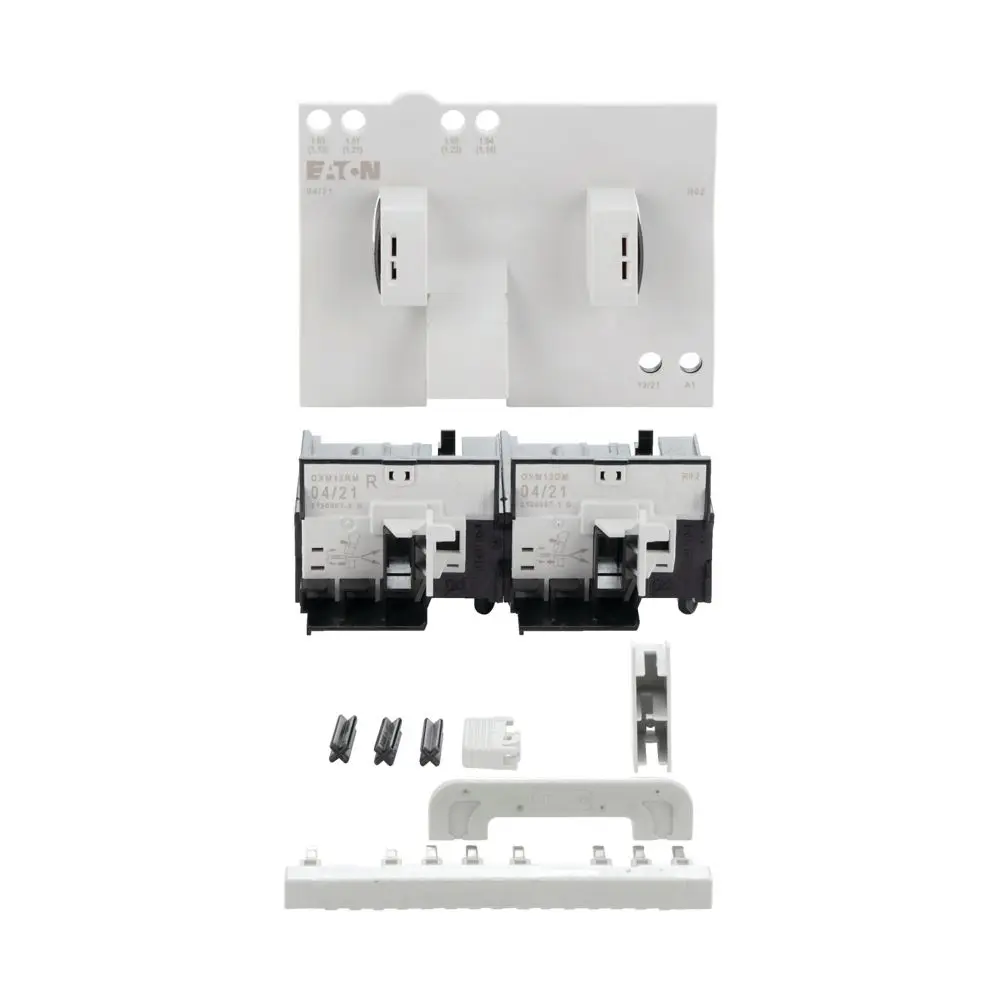

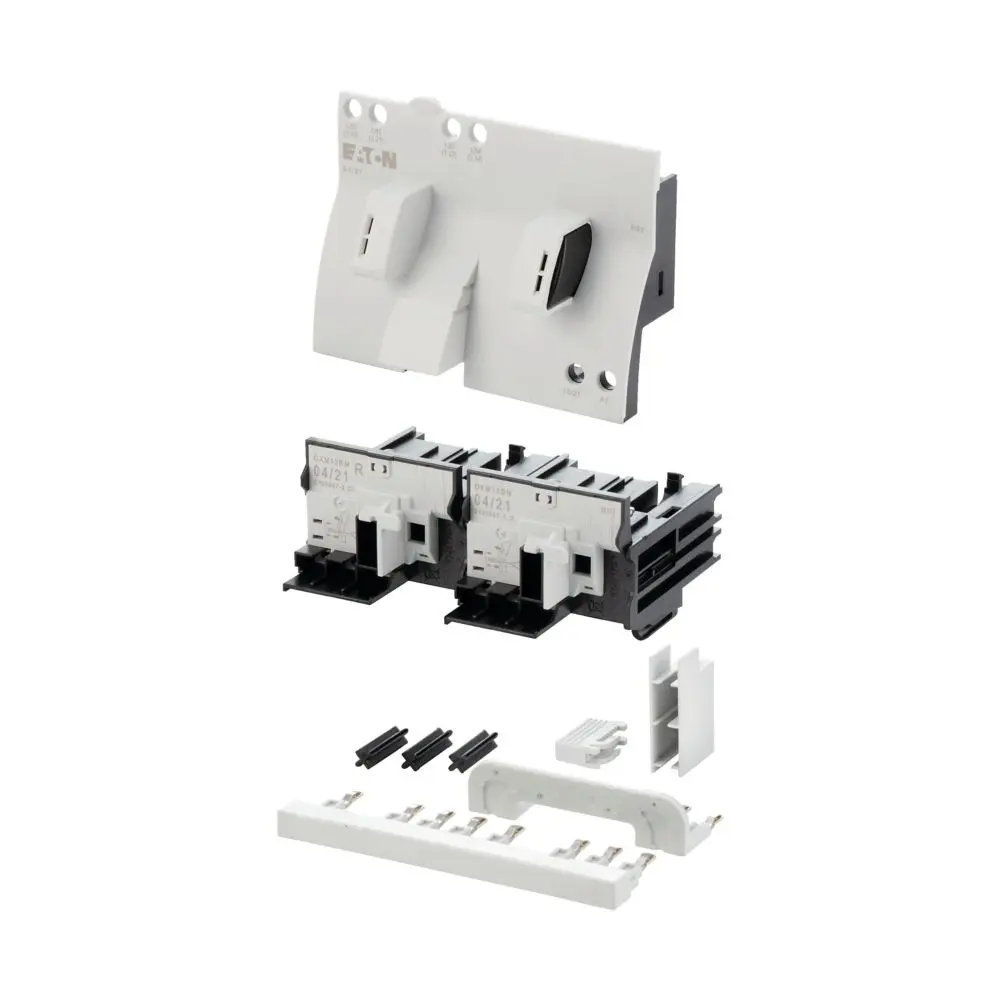

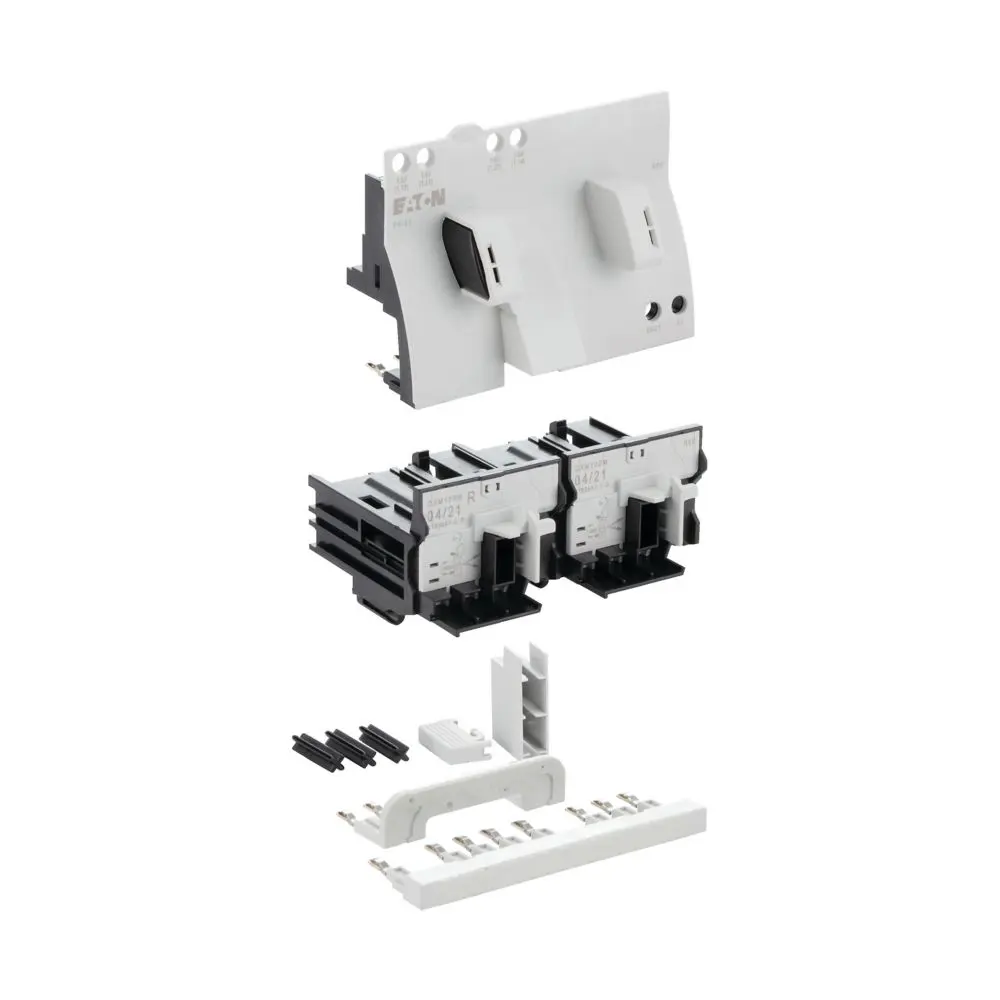

The Eaton PKZM0-XRM12 wiring set (catalog no. 283185, alternate code XTPAXTPCRB) is designed for use with PKZM0 or PKE motor-protective circuit breakers combined with DILM7-01, DILM9-01, or DILM12-01 contactors in reversing starter configurations. This accessory kit includes a mechanical connection element, main current wiring with tool-less plug connection, control cables for electrical interlocking, and cable routing. It supports auxiliary contact DILA-XHIT… and is rated up to 415 V, with a maximum current of 15.5 A. With IEC/EN 61439 design verification and certifications to UL, CSA, IEC, and CE standards, the PKZM0-XRM12 provides safe, efficient, and globally compliant integration for reversing motor starter assemblies.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton |
|---|---|
| Series | Moeller PKZM0 |
| Catalog Number | 283185 |
| Part Number | PKZM0-XRM12 |
| Alternate Catalog Number | XTPAXTPCRB |
| EL-Number (Norway) | 4365081 |
| Product Type | Wiring Set (Accessory) |
| For Use With | PKZM0, PKE + DILM7-01 / DILM9-01 / DILM12-01 |
| Poles | 3 |
| Model | Reversing switching |
| Rated Operational Voltage (Ue) | ≤ 415 V |
|---|---|
| Rated Operational Current (In) | 15.5 A |
| Heat Dissipation per Pole (Pvid) | 0.5 W |
| Total Equipment Heat Dissipation | 1.5 W |
| Static Heat Dissipation (Pvs) | 0 W |
| Heat Dissipation Capacity (Pdiss) | 0 W |
| Ambient Operating Temperature | -25 °C … +55 °C |
| Accessories Included | Mechanical connection element, tool-less plug wiring, control cables for interlock, cable routing |
| Special Features | Supports auxiliary contact DILA-XHIT…, not compatible with AGM-PKZ0 or NHI...-PKZ0 side mounting |
| Standards Compliance | IEC60947-4-1, UL 508, CSA-C22.2 No. 14, CE marking |
| UL File Number | E36332 |
| CSA File Number | 165628 |
| CSA Class Number | 3211-05 |
| UL Category Control Number | NLRV |
| Certifications | UL listed, CSA certified, CE |
| Specially Designed for North America | No |
