Eaton / Moeller Series
32A, 3P, wiring module, direct circuit connection for DILM17–M32, IEC/UL/CSA/CE

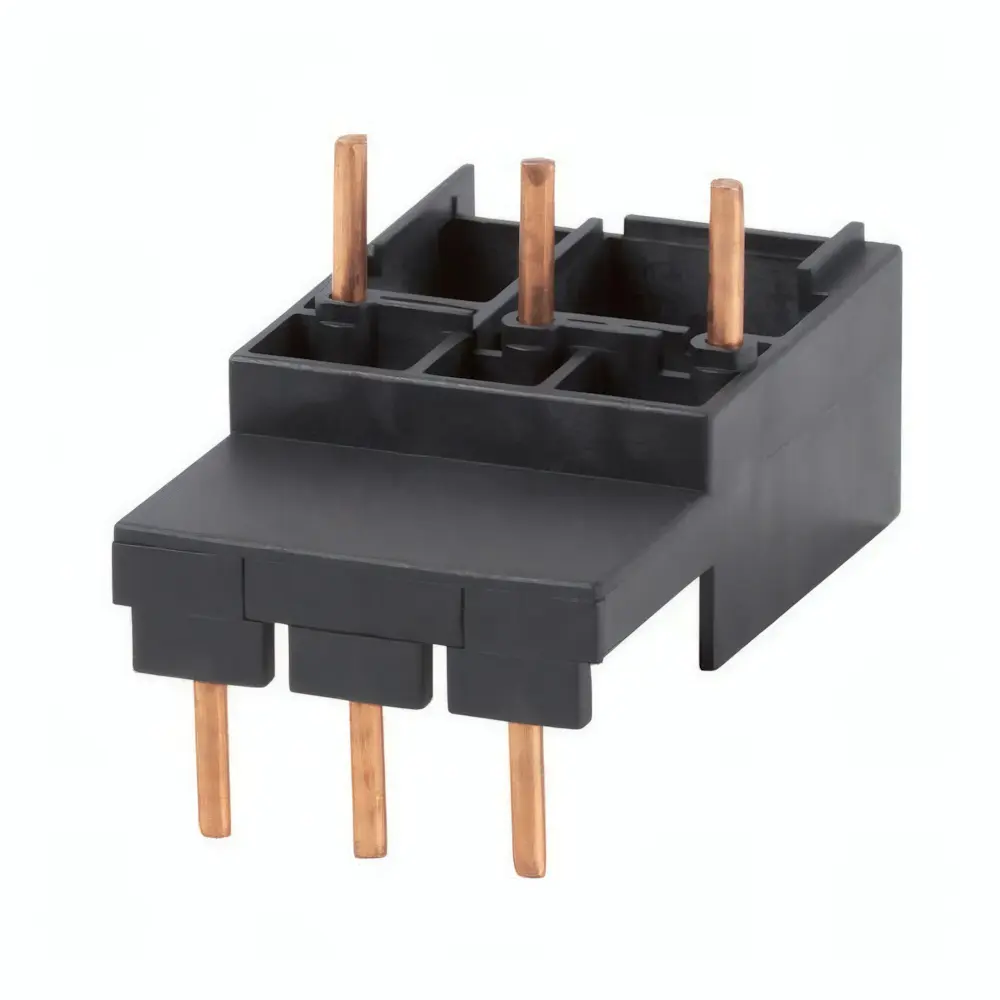

The Eaton Moeller® series PKZM0 wiring module (catalog no. 239349, model PKZM0-XM32DE) is designed as an accessory for DILM17–M32 contactors in direct-on-line motor starter assemblies. It provides reliable main current wiring for three-pole circuits with a rated operational current of 32 A at up to 415 VAC. The module uses a compact design to streamline wiring, reduce installation effort, and ensure secure connections. With IEC/EN 61439 design verification and compliance to UL, CSA, IEC, and CE standards, the PKZM0-XM32DE wiring module offers safe, efficient, and globally approved performance in motor control applications.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton |
|---|---|
| Series | Moeller PKZM0 |
| Catalog Number | 239349 |
| Model Code | PKZM0-XM32DE |
| EAN | 4015082393496 |
| Product Type | Wiring Module (Accessory) |
| For Use With | DILM17 – DILM32 |
| Poles | 3 |
| Model | Direct circuit |
| Dimensions (L × W × H) | 67 × 36 × 41 mm |
| Weight | 0.023 kg |
| Rated Operational Voltage (Ue) | 415 VAC max |
|---|---|
| Rated Operational Current (Ie) | 32 A |
| Rated Operational Current for Heat Dissipation (In) | 32 A |
| Heat Dissipation per Pole | 0.5 W |
| Total Equipment Heat Dissipation | 1.5 W |
| Heat Dissipation Capacity (Pdiss) | 0 W |
| Static Heat Dissipation (Pvs) | 0 W |
| Ambient Operating Temperature | -25 °C … +55 °C |
| Standards Compliance | IEC60947-4-1, UL 508, CSA-C22.2 No. 14, CE marking |
| UL File Number | E36332 |
| CSA File Number | 165628 |
| CSA Class Number | 3211-05 |
| UL Category Control Number | NLRV |
| Certifications | UL listed, CSA certified, CE |
