Eaton / Moeller Series
32A, 3P, wiring set, screw terminal connection for DOL starter, IEC/UL/CSA/CE

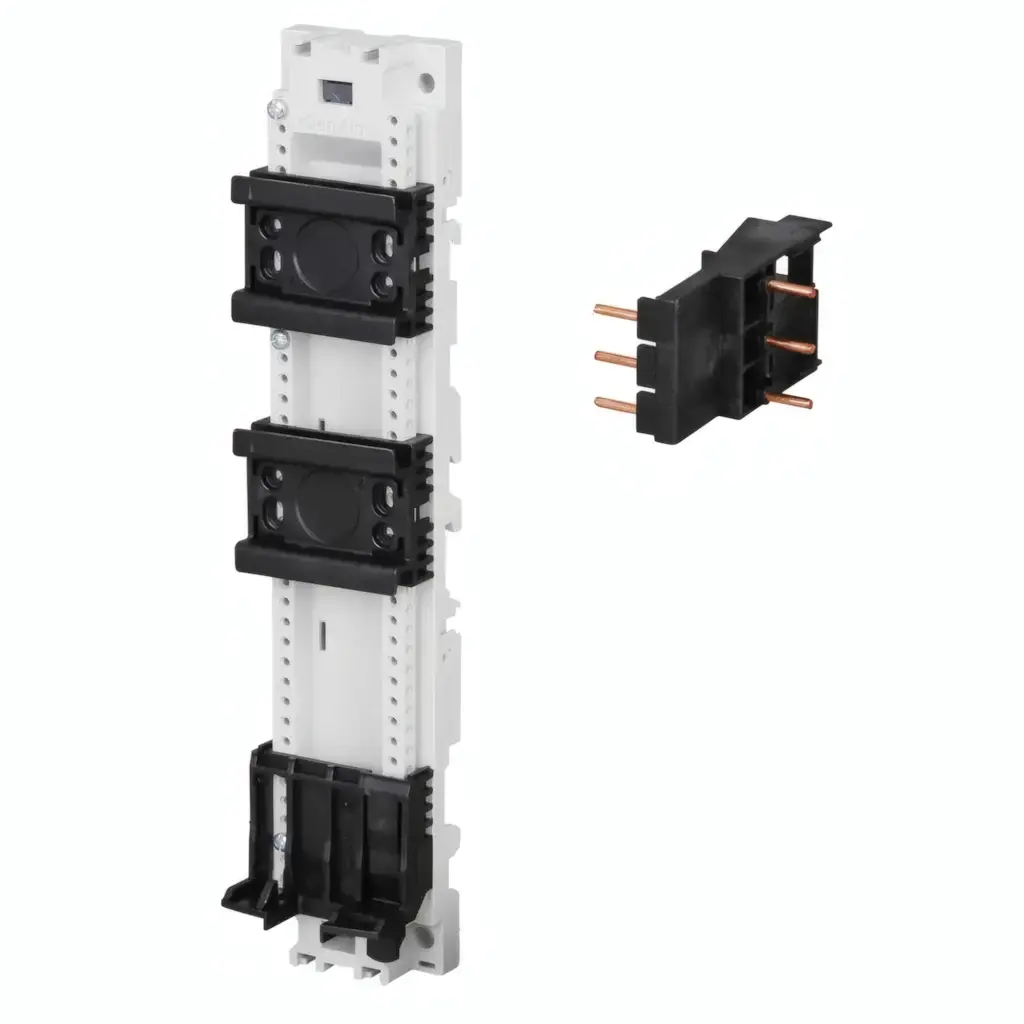

The Eaton PKZM0-XDM32 wiring set is an accessory kit designed for direct-on-line (DOL) starters with PKZM0 or PKE breakers combined with DILM17, DILM25, or DILM32 contactors. It provides the main current wiring between the breaker and contactor via screw terminals, along with a mechanical connection element and cable routing. The kit ensures a secure and efficient setup for three-pole motor starter assemblies, rated for 32 A. Built to meet IEC/EN 61439 design verification requirements, it offers safe and reliable performance in industrial control panels. Certified to IEC, UL, CSA, and CE standards, the PKZM0-XDM32 supports compliance for global applications.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton |
|---|---|
| Series | Moeller PKZM0 |
| Catalog Number | 283153 |
| Part Number | PKZM0-XDM32 |
| Alternate Catalog Number | XTPAXTPCC |
| EL-Number (Norway) | 4365080 |
| Product Type | Wiring Set (Accessory) |
| For Use With | PKZM0, PKE + DILM17 / DILM25 / DILM32 |
| Poles | 3 |
| Model | Direct circuit |
| Rated Operational Current (In) | 32 A |
|---|---|
| Heat Dissipation per Pole (Pvid) | 0.5 W |
| Total Equipment Heat Dissipation | 1.5 W |
| Static Heat Dissipation (Pvs) | 0 W |
| Heat Dissipation Capacity (Pdiss) | 0 W |
| Ambient Operating Temperature | -25 °C … +55 °C |
| Accessories Included | Mechanical connection element, screw terminal wiring, cable routing, adapter plate |
| Standards Compliance | IEC60947-4-1, UL 508, CSA-C22.2 No. 14, CE marking |
| UL File Number | E36332 |
| CSA File Number | 165628 |
| CSA Class Number | 3211-05 |
| UL Category Control Number | NLRV |
| Certifications | UL listed, CSA certified, CE |
| Specially Designed for North America | No |
