Eaton / Moeller Series
15A, 3P, wiring set, tool-less plug connection for DOL starter, IEC/UL/CSA/CE

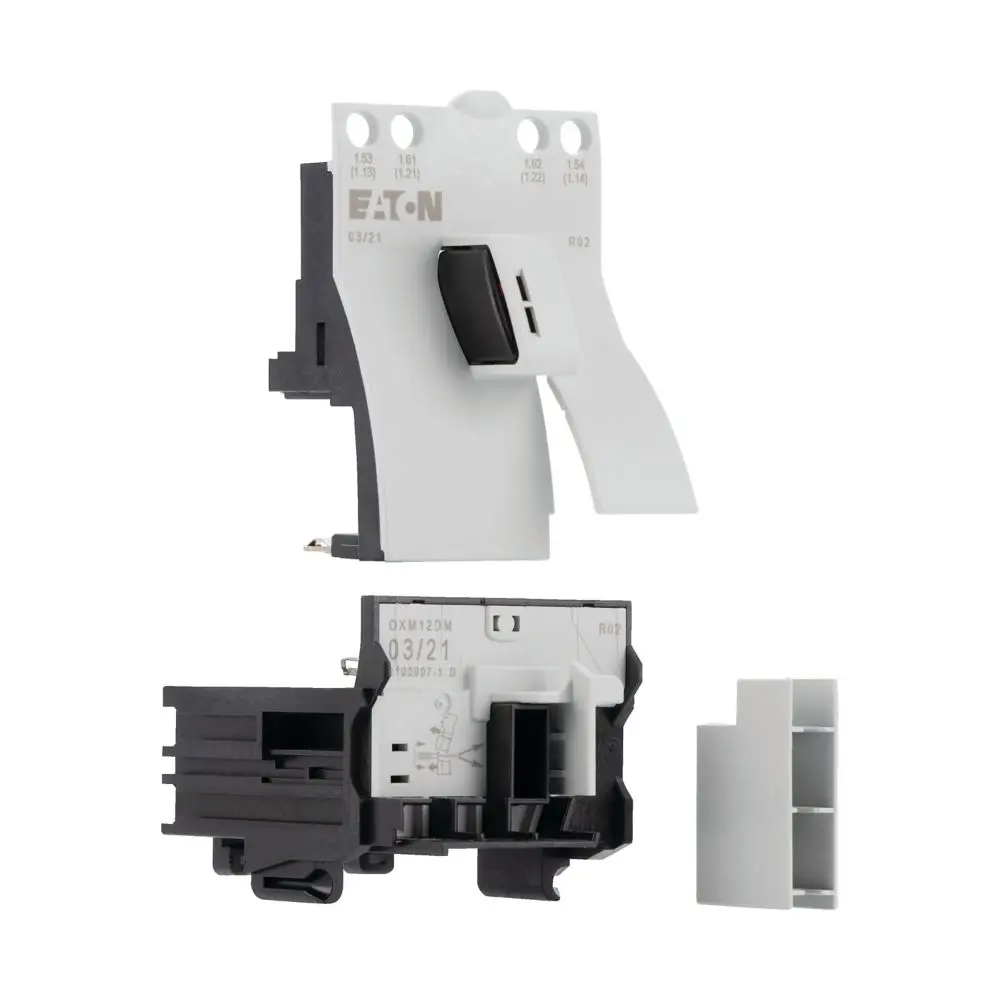

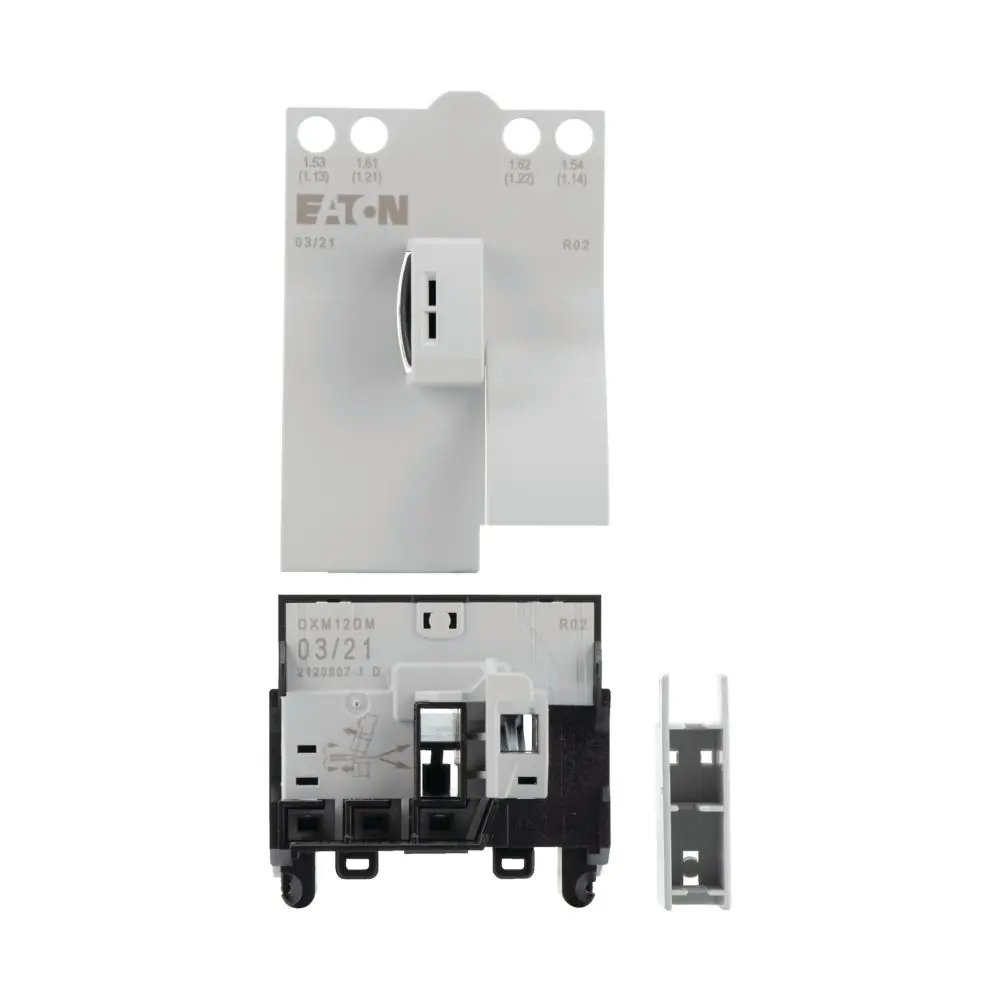

The Eaton Moeller® series PKZM0 wiring set (catalog no. 283149, model PKZM0-XDM12) is an accessory designed for direct-on-line (DOL) motor starters with contactors DILM7–M15. It enables main current wiring between the PKZM0 motor-protective circuit breaker and the contactor via a reliable, tool-less plug connection. This set also includes a mechanical connection element for secure assembly. Rated for up to 415 VAC and 15 A, it ensures dependable operation in three-pole applications. Certified to UL, CSA, IEC, and CE standards, the wiring set provides global compliance and is suitable for industrial environments with ambient operating temperatures from -25 °C to +55 °C.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton |
|---|---|
| Series | Moeller PKZM0 |
| Catalog Number | 283149 |
| Model Code | PKZM0-XDM12 |
| EAN | 4015082831493 |
| Product Type | Wiring Set (Accessory) |
| For Use With | DOL Starter, DILM7–M15 |
| Poles | 3 |
| Dimensions (L × W × H) | 91 × 45 × 67 mm |
| Weight | 0.058 kg |
| Rated Operational Voltage (Ue) | 415 VAC max |
|---|---|
| Rated Operational Current (Ie) | 15 A |
| Rated Operational Current for Heat Dissipation (In) | 15.5 A |
| Heat Dissipation per Pole | 0.5 W |
| Total Equipment Heat Dissipation | 1.5 W |
| Heat Dissipation Capacity (Pdiss) | 0 W |
| Static Heat Dissipation (Pvs) | 0 W |
| Ambient Operating Temperature | -25 °C … +55 °C |
| Suitable for Number of Poles | 3 |
| Accessories Included | Cable routing for main current wiring, tool-less plug connection, mechanical connection element |
| Certifications | IEC/EN 60947-4-1, UL 508, CSA-C22.2 No. 14, CE |
| UL File Number | E36332 |
| CSA File Number | 165628 |
| CSA Class Number | 3211-05 |
| UL Category Control Number | NLRV |
