Eaton / Moeller Series
6–10A thermal, 80–140A magnetic, Combo Unit

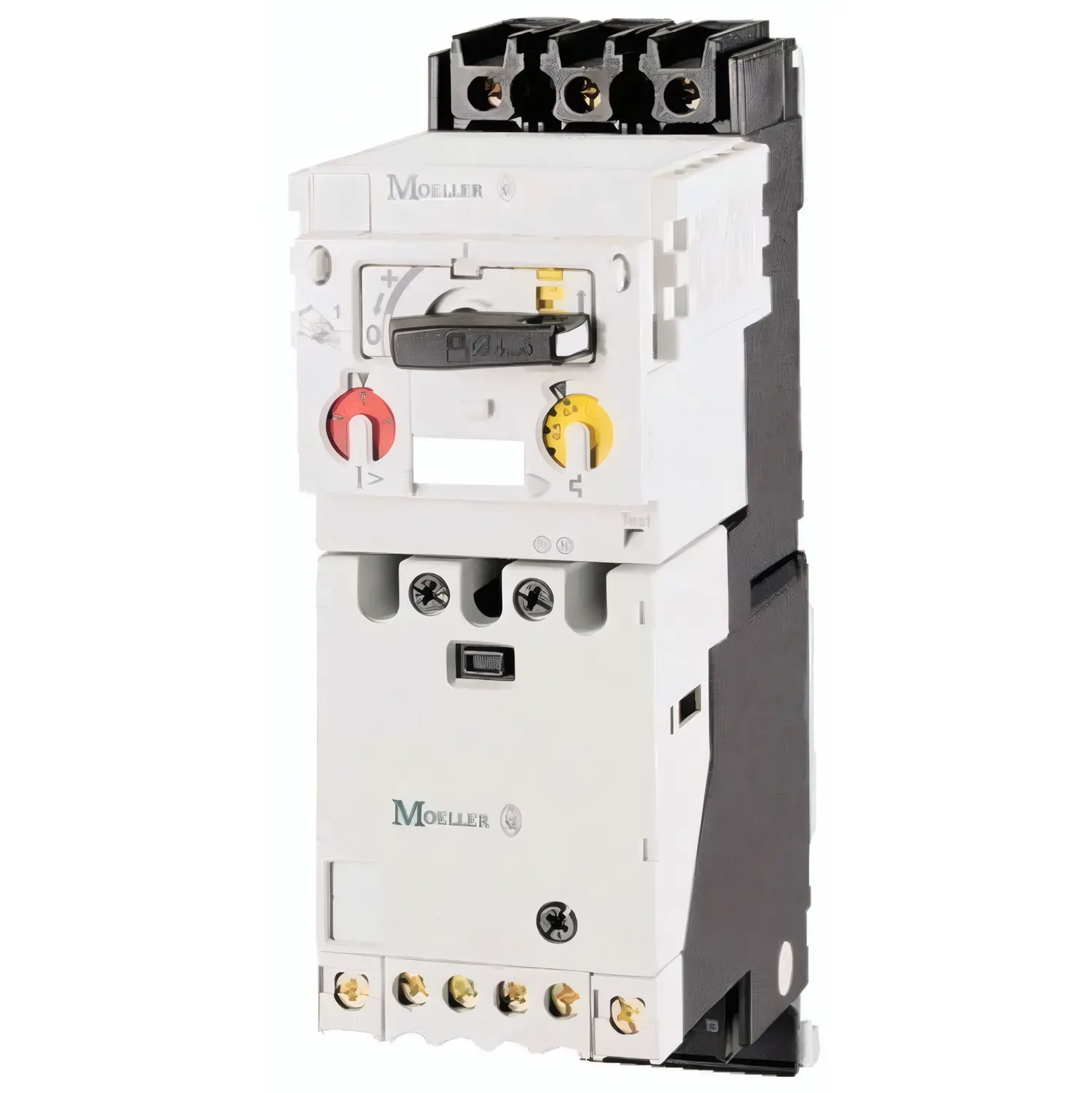

The Moeller PKZ2/ZM-10/S-SP is a factory-assembled manual motor starter package that includes the PKZ2/S-SP basic module (with contactor), ZM-10-PKZ2 overload trip unit, and C-PKZ2 DIN rail mounting adapter. Designed as a UL 508 / CSA Type E self-protected combination motor controller, this unit handles motors up to 3 HP at 230 V and 5 HP at 460 V. It features an adjustable thermal overload range of 6–10 A and magnetic trip settings from 80–140 A. With built-in phase-loss protection, auxiliary contacts, and no need for backup overcurrent protection, it ensures reliable motor protection and long service life. The unit supports accessory integration and provides continuity of service under fault conditions.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Moeller |
|---|---|
| Model | PKZ2/ZM-10/S-SP |
| Included Components | PKZ2/S-SP (Contactor Module), ZM-10-PKZ2 (Overload), C-PKZ2 (DIN Rail Adapter) |
| Product Type | Manual Motor Starter |
| Mounting | DIN Rail / Panel (via C-PKZ2) |
| Standards | UL 508, CSA 22.2 No. 14, Type E |
| Contactor Rating | 42 A (30 HP @ 460 V), 27 A (HP @ 575 V) |
| Enclosure | Not included (compatible with door interlock handles) |
| Adjustable Thermal Range | 6 – 10 A |
|---|---|
| Magnetic Trip Range | 80 – 140 A |
| HP Rating @ 230 V | 3 HP |
| HP Rating @ 460 V | 5 HP |
| Overcurrent Protection | Self-protected – No backup protection required |
| Auxiliary Contacts | 1 NO + 1 NC (built-in) |
| Electrical Life | 1 million operations (AC-3 duty) |
| Trip Module | Removable, opens coil circuit and enables remote overload signal |
| Phase Loss Protection | Yes |
| Accessory Support | Voltage trips, auxiliary contacts, trip indicators |
| Control Circuit Terminals | Tap-off terminals on load side of disconnect |
