Eaton / Moeller Series
32A, 3P, Motor-Protective Circuit Breaker, 3–32A adjustable overload, IEC/VDE 0660

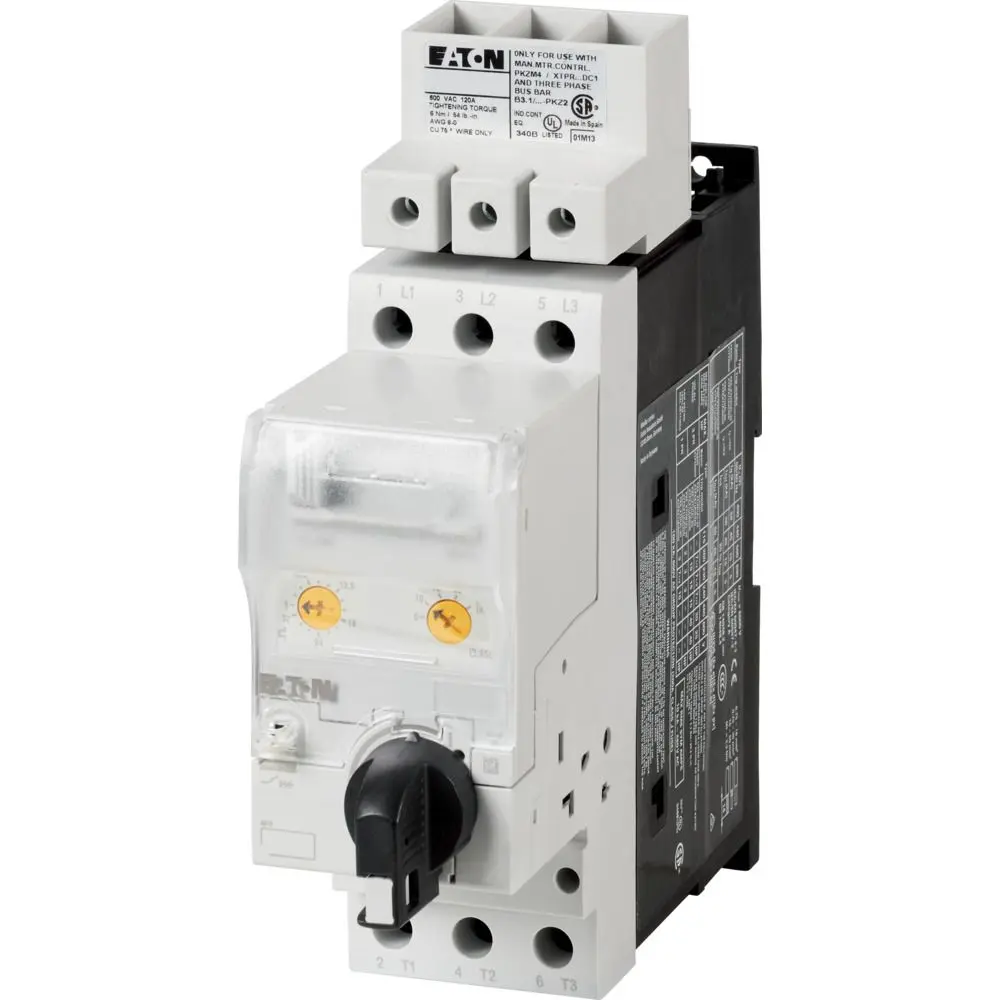

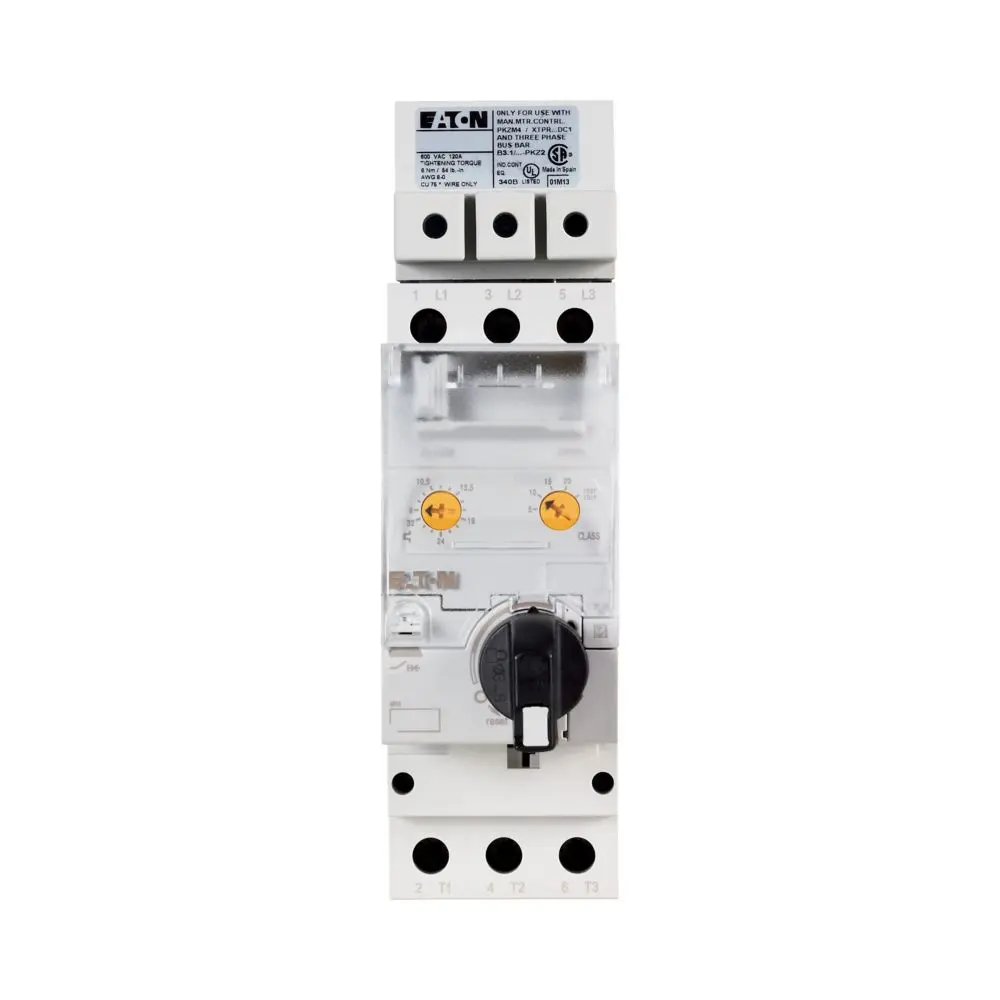

The Eaton/Moeller PKE65/AK/XTUW-32-SP is a motor-protective circuit breaker designed to provide reliable overload and short-circuit protection for industrial motors. It offers an adjustable overload protection range of 3–32 A, with instantaneous short-circuit release at 448 A. With a high short-circuit current rating of 65 kA at 240 V and 480Y/277 V, and 25 kA at 600Y/347 V, the PKE65/AK/XTUW-32-SP ensures robust protection in demanding applications. This device supports motors up to 7.5 HP at 200/208 V, 7.5 HP at 230/240 V, 20 HP at 460/480 V, and 25 HP at 575/600 V, and is designed for North American applications. Built to IEC/EN 60947-4-1 standards, it features screw-type connections, IP20 protection, electronic switching technology, and phase failure sensitivity. Compact and reliable, the PKE65/AK/XTUW-32-SP is ideal for industrial motor protection where high performance and safety are required.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton / Moeller |
|---|---|
| Model | PKE65/AK/XTUW-32-SP |
| Old Moeller Part Number | PKE65/AK/XTUW-32-SP |
| New Eaton Part Number | XTPE032DCSSP |
| Product Type | Motor-Protective Circuit Breaker |
| Series | PKE |
| Number of Poles | 3 |
| Motor Rating | 7.5 HP (200/208 V), 7.5 HP (230/240 V), 20 HP (460/480 V), 25 HP (575/600 V) |
| Rated Operational Current | 32 A |
| Setting Range (Overload) | 3 – 32 A |
| Short-Circuit Release | 448 A (instantaneous) |
| Frame Size | PKE65 with AK/XTUW-32 module |
| Standards | IEC/EN 60947-4-1, VDE 0660 |
|---|---|
| Rated Operational Voltage (Ue) | 208 – 600 V AC |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Overvoltage Category / Pollution Degree | III / 3 |
| Short-Circuit Current Rating | 65 kA @ 240 V / 480Y/277 V; 25 kA @ 600Y/347 V |
| Breaking Capacity lcu (400 V AC) | 80 kA |
| Coordination Type | Type 2 |
| Connection Type | Screw Connection |
| Device Construction | Built-in device, fixed |
| Degree of Protection | IP20 |
| Heat Dissipation | 0 W |
| Switching Technology | Electronic |
| Phase Failure Sensitive | Yes |
| Compliance | North America (Type E), IE3-ready |
