Eaton / Moeller Series
65A, 3P, Type E DOL starter, electronic trip, turn button, IEC/UL/CSA/CE

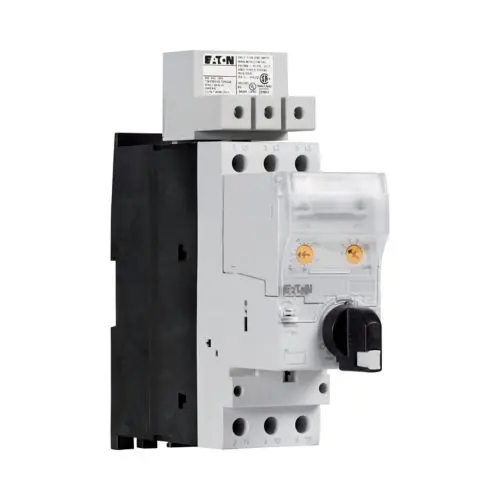

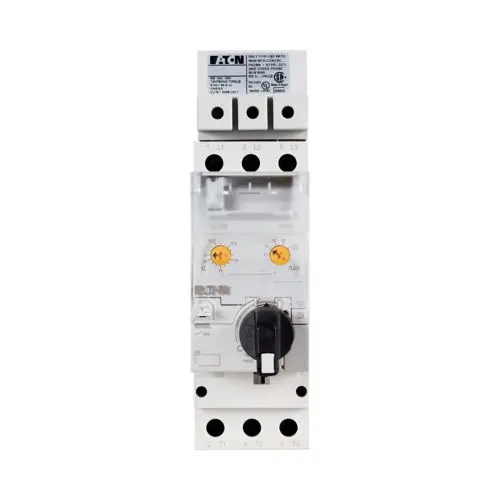

The Eaton Moeller® series PKE65/AK/XTU-65-SP (Catalog No. 170482) is a Type E DOL motor starter complete device, designed for reliable motor and system protection in industrial applications. With electronic overload and short-circuit trip functionality, it supports an adjustable overload range from 16 to 65 A and provides a high short-circuit breaking capacity up to 65 kA (SCCR). This 3-pole device includes a turn button operator, screw connections, and conforms to international standards including IEC/EN 60947, UL 60947-4-1A, and CSA C22.2 No. 14-10. Rated for 690 V AC operation and 65 A continuous current, it's ideal for AC-3 motor applications up to 55 kW at 690 V.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton (Moeller® series) |
|---|---|
| Model | PKE65/AK/XTU-65-SP |
| Catalog Number | 170482 |
| Part Number | XTPEXT032D |
| Product Type | Type E DOL Starter (Complete Device) |
| Trip Type | Electronic (overload & short-circuit) |
| Operator | Turn Button |
| Amperage | 65 A |
| Overload Setting Range | 16 – 65 A |
| Short-Circuit Release | 910 A (non-delayed) |
| Poles | 3 |
| Mounting | Built-in device, fixed technique |
| Connection Type | Screw Terminals |
| Dimensions (H × W × D) | 204 × 55 × 198 mm |
| Weight | 1.649 kg |
| Rated Operational Voltage (Ue) | 690 V AC |
|---|---|
| Rated Uninterrupted Current (Iu) | 65 A |
| Rated Impulse Withstand Voltage (Uimp) | 6000 V |
| Rated Frequency | 40 – 60 Hz |
| Short-Circuit Current Rating (UL/CSA) | 65 kA @ 240/480 Y/277 V |
| Breaking Capacity ICU @ 400 V AC | 50 kA |
| Breaking Capacity ICS @ 400 V AC | 12 kA |
| Phase-Failure Sensitivity | Yes |
| Switch Off Technique | Electronic |
| Degree of Protection | IP20 |
| Ambient Temperature Range (Operation) | –25 °C to +55 °C |
| Heat Dissipation (Current Dependent) | 19.2 W |
| Assigned Motor Power (AC-3, 400 V) | 30 kW |
| Assigned Motor Power (AC-3, 690 V) | 55 kW |
| Certifications | IEC/EN 60947-4-1, UL60947-4-1A, CSA C22.2 No.14-10, CE, VDE 0660 |
| UL File No. | E123500 |
| CSA File No. | 012528 |
| Pollution Degree | 3 |
| SmartWire-DT Connection | No |
