Eaton / Moeller Series
65A, 3P, breaker, lockable rotary handle, electronic trip, IEC/UL/CSA/VDE

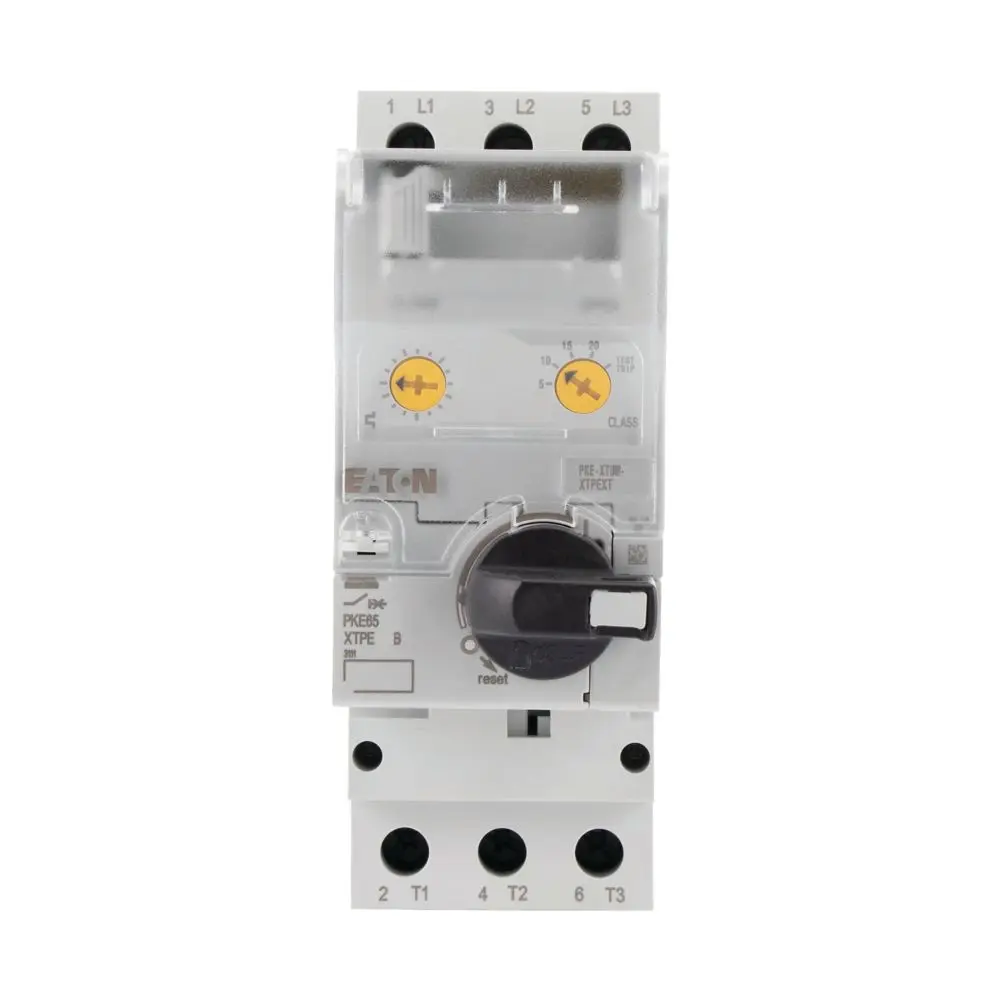

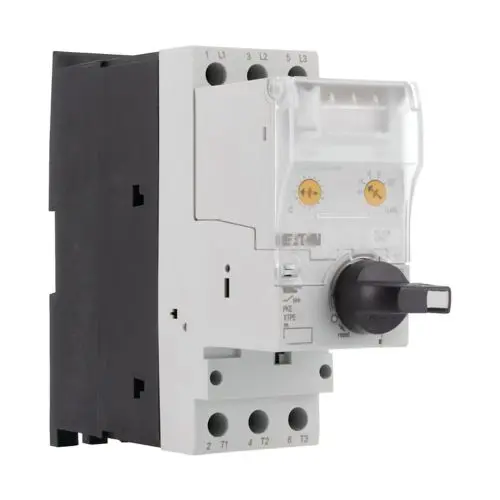

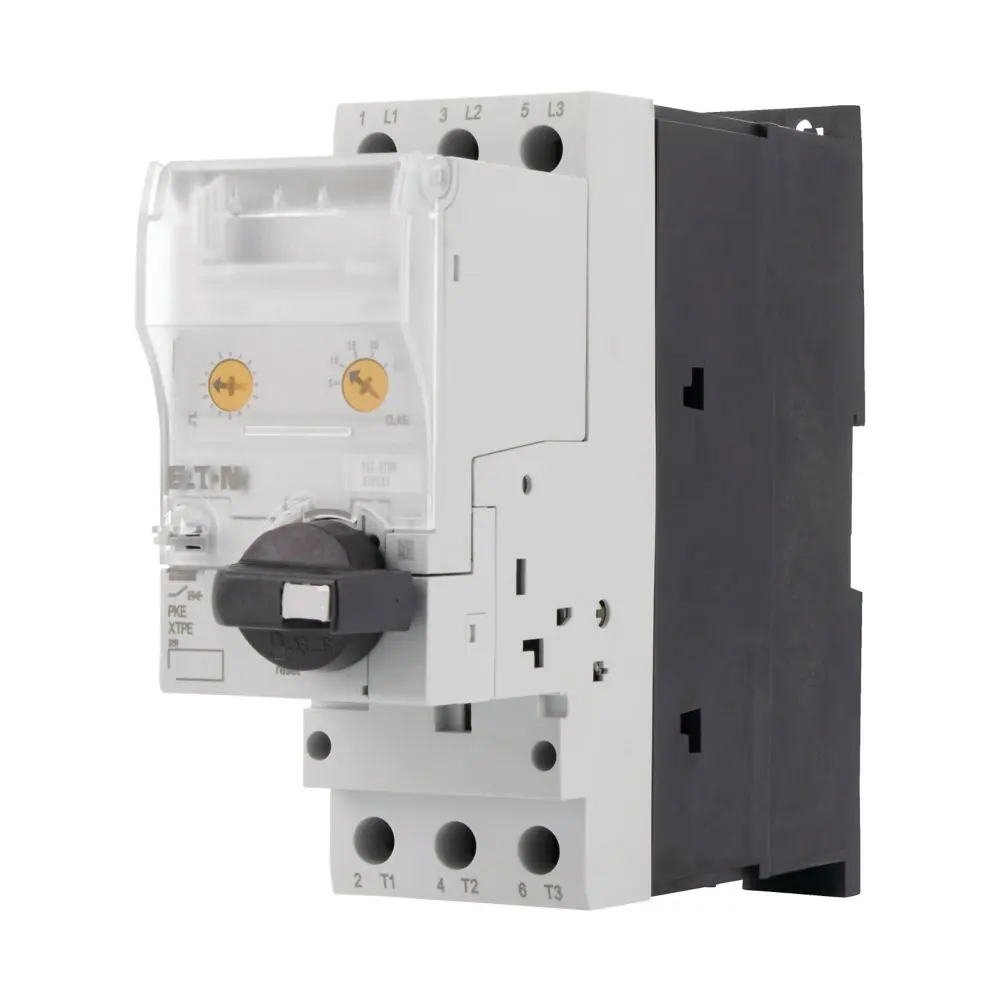

The Eaton PKE65/AK/XTU-65 is a Moeller® series PKE65 motor-protective circuit breaker equipped with an AK lockable rotary handle and an integrated electronic trip unit. This complete device supports a current range of 16 A to 65 A and is designed for motor protection applications, including heavy-duty starts. It features phase-failure sensitivity, a fixed short-circuit release, and temperature compensation. Built for industrial environments, the breaker is certified to IEC/EN 60947, UL, CSA, and VDE standards. It provides high interrupting capacities up to 100 kA (UL/CSA group protection) and is suitable for motors up to 55 kW at 690 V.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller® |
|---|---|
| Model | PKE65/AK/XTU-65 |
| Catalog Number | 158248 |
| Product Type | Motor-protective circuit breaker |
| Rated Current | 65 A |
| Current Setting Range | 16 – 65 A |
| Trip Type | Electronic |
| Poles | 3P |
| Actuator Type | Lockable rotary handle (AK) |
| Construction | Built-in device |
| Weight | 1.474 kg |
| Dimensions (H × W × D) | 162 mm × 55 mm × 198 mm |
| Rated Operational Voltage (Ue) | 690 V AC |
|---|---|
| Rated Impulse Voltage (Uimp) | 6000 V |
| Rated Frequency | 50 – 60 Hz |
| Switch-off Technique | Electronic |
| Interrupting Capacity (Icu at 400 V) | 50 kA |
| Interrupting Capacity (Ics at 400 V) | 12 kA |
| SCCR (UL/CSA Group Protection) | 100 kA (Class J fuse, 600 V) |
| Motor Power at 690 V (AC-3) | 55 kW |
| Motor Power at 400 V (AC-3) | 30 kW |
| Phase-Failure Sensitivity | Yes |
| Ambient Temp. (Open) | -25 °C to +55 °C |
| Ambient Temp. (Enclosed) | -25 °C to +40 °C |
| Storage Temperature | -40 °C to +80 °C |
| Degree of Protection | IP20 (device), IP00 (terminals) |
| Altitude | Max. 2000 m |
| Lifespan (Mechanical) | 30,000 operations |
| Lifespan (Electrical at 400 V) | 50,000 operations |
| Terminal Capacity (AWG) | 14 – 2 AWG |
| Certifications | CE, UL, CSA, IEC/EN 60947, VDE 0660 |
