Eaton / Moeller Series

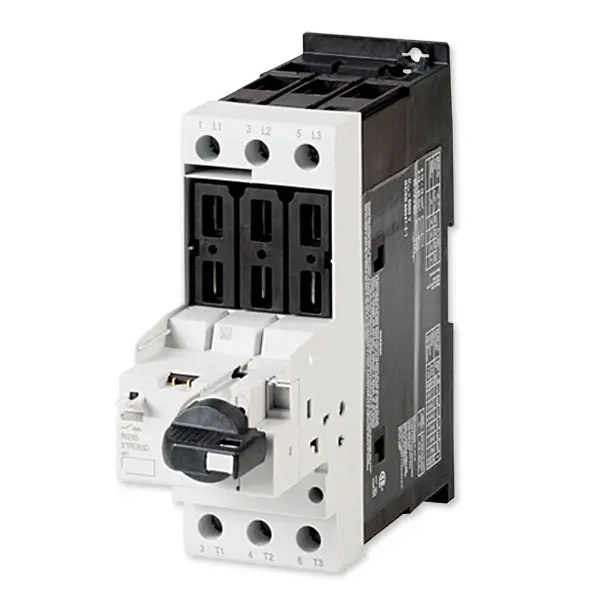

65A, 3P, motor-protective circuit breaker, electronic trip, IEC/UL/CSA
The Eaton/Moeller PKE65/AK is a 3-pole motor-protective circuit breaker rated for 65A. Designed with electronic trip technology, it ensures reliable protection against overload and short-circuit conditions in motor circuits. It supports coordination types "1" and "2" and meets international standards including IEC/EN 60947, UL508, and CSA-C22.2 No.14-10. With a high rated operational voltage of up to 690 V AC and impulse withstand voltage of 6000 V, this breaker is suitable for demanding industrial environments. The device features an IP20 protection rating and supports flexible mounting positions. Certified for global use, the PKE65/AK is an ideal choice for motor protection applications.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton/Moeller |
|---|---|
| Model | PKE65/AK |
| Series | PKE |
| Product Type | Motor-Protective Circuit Breaker |
| Number of Poles | 3 |
| Trip Type | Electronic |
| Frame Size | PKE65 |
| Old Moeller Part Number | PKE65/AK |
| New Eaton Part Number | XTPE032BNL |
| Rated Current (Iu/Ie) | 65 A |
|---|---|
| Rated Operational Voltage (Ue) | 690 V AC |
| Rated Impulse Withstand Voltage (Uimp) | 6000 V |
| Overvoltage Category / Pollution Degree | III / 3 |
| Frequency | 40 – 60 Hz |
| Short-Circuit Release | Fixed, 15.5 × Iu |
| Overload Release Setting Range | 0.25 – 1 × Iu |
| Phase-Failure Sensitivity | Yes |
| Ambient Operating Temp. (Open) | -25 °C to +55 °C |
| Storage Temperature | -40 °C to +80 °C |
| Degree of Protection | IP20 (Device), IP00 (Terminals) |
| Mounting Position | Any |
| Terminal Capacity | 0.75 – 16 mm² (1 or 2 wires) |
| Terminal Torque (Main/Control) | 1.7 Nm / 1.0 Nm |
| Altitude Limit | 2000 m |
| Max Operating Frequency | 60 Ops/h |
| Mechanical Life | 50,000 operations |
| Electrical Life (AC-3, 400 V) | 50,000 operations |
| Heat Loss (3P) | 22 W (with PKE65-XTU), 6 W (with PKE-XTUW) |
| Connection Type | Screw |
| Construction Type | Fixed Built-In Device |
| Certifications | IEC60947-4-1, UL508, CSA-C22.2 No.14-10, CE |
| UL File No. | E36332 |
| CSA File No. | 165628 |
| North America Certification | UL Listed, CSA Certified |
