Eaton / Moeller Series
1.2A, 3P, motor-protective circuit breaker, adjustable overload 0.3–1.2A, IEC/UL/CSA

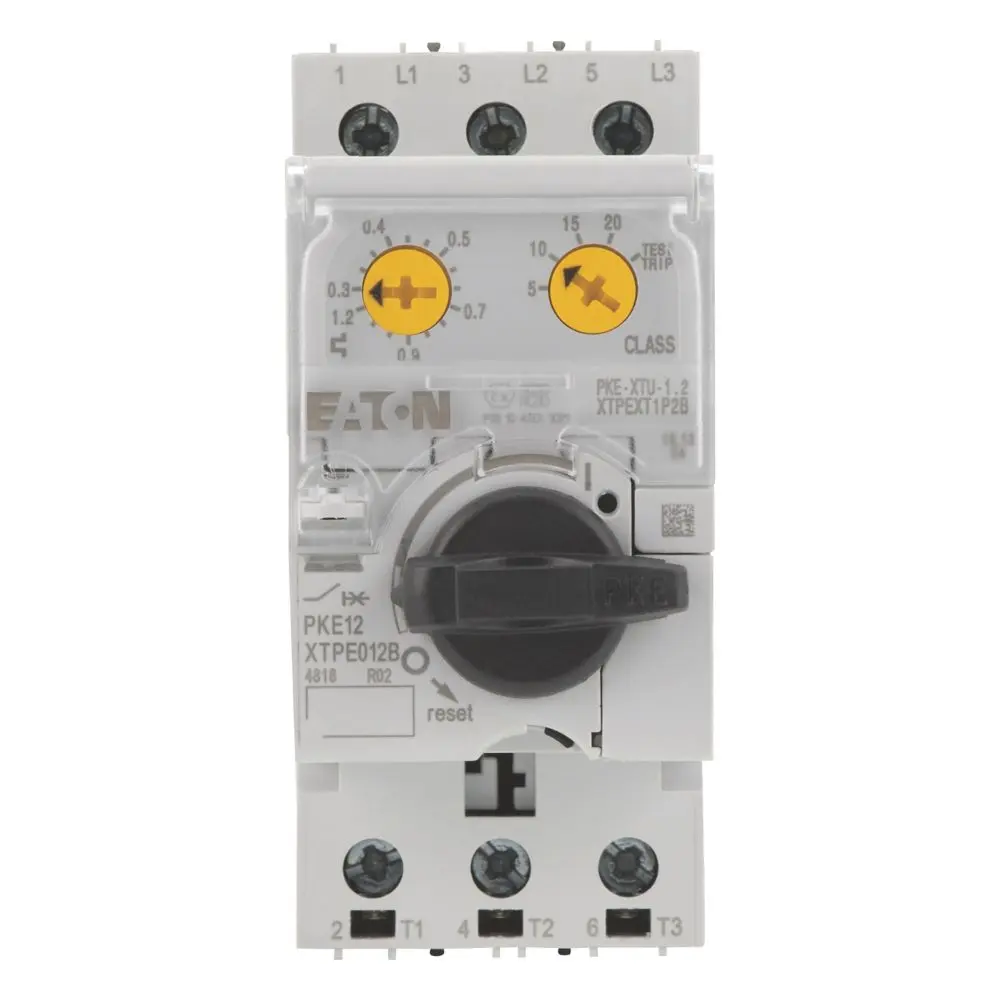

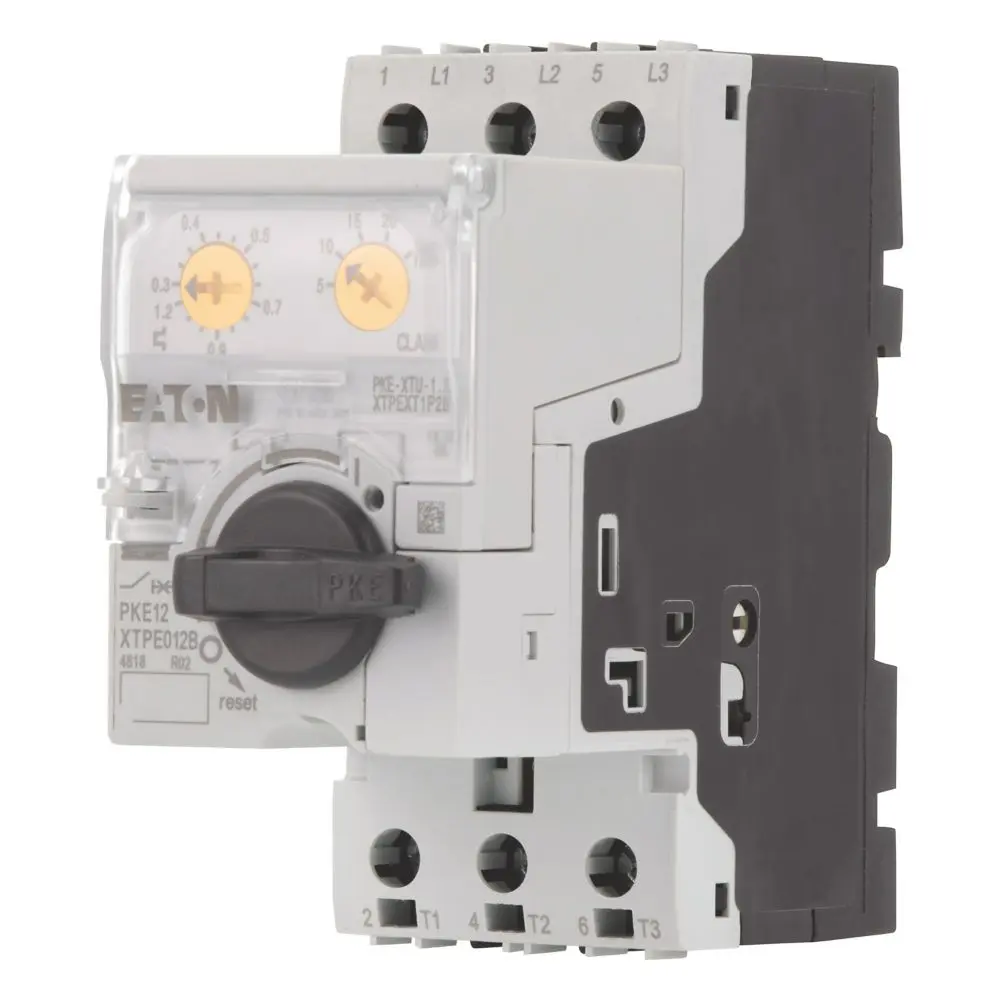

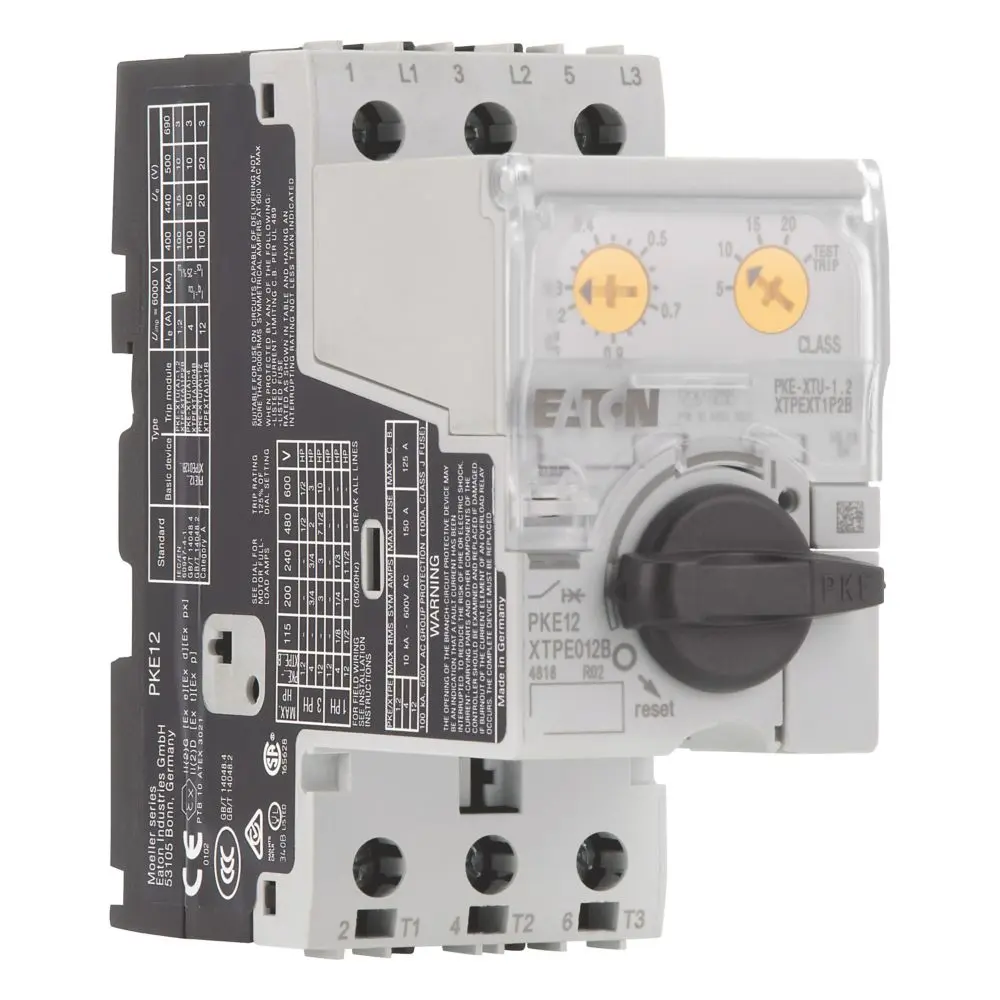

The Eaton/Moeller PKE12/XTU-1,2 is a motor-protective circuit breaker designed as a complete standard device. It provides an adjustable overload release range of 0.3–1.2A and includes a fixed short-circuit release for reliable motor protection. With a rated uninterrupted operational current of up to 32A (depending on setting), it supports AC-3 motor switching up to 690 V. The breaker integrates phase-failure sensitivity, temperature compensation, and high mechanical durability with up to 50,000 operations. Certified to IEC/EN 60947-4-1, UL 508, and CSA C22.2 standards, the PKE12/XTU-1,2 offers global compliance. Its compact design with IP20 protection is suitable for industrial motor protection and automation systems.
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton / Moeller |
|---|---|
| Model | PKE12/XTU-1,2 |
| Series | PKE12 |
| Product Type | Motor-Protective Circuit Breaker |
| Setting Range (Overload Release) | 0.3 – 1.2 A |
| Rated Uninterrupted Current (Iu) | 32 A (or set value of release) |
| Number of Poles | 3 |
| Function | Overload and short-circuit protection |
| Coordination Type | 1 and 2 |
| Rated Operational Voltage (Ue) | 690 V AC |
|---|---|
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Frequency | 40 – 60 Hz |
| Current Heating Losses | 6 W (3-pole at operating temp) |
| Mechanical Lifespan | 50,000 operations |
| Electrical Lifespan (AC-3, 400 V) | 50,000 operations |
| Max. Operating Frequency | 60 ops./h |
| Motor Switching Capacity | AC-3, up to 690 V: 32 A |
| Overload Release Range | 0.25 – 1 × Iu |
| Short-Circuit Release Tolerance | +20% |
| Phase-Failure Sensitivity | Yes (IEC/EN 60947-4-1, VDE 0660 Part 102) |
| Degree of Protection (Device) | IP20 |
| Ambient Temperature (Operation) | -25 °C to +55 °C |
| Storage Temperature | -25 °C to +80 °C |
| Altitude | Max. 2000 m |
| Terminal Capacity (Solid / Stranded) | 1 × (1–6 mm²) / 18–10 AWG |
| Terminal Torque | Main: 1.7 Nm, Auxiliary: 1 Nm |
| Standards | IEC/EN 60947-4-1, UL 508, CSA C22.2, VDE 0660 |
| Climatic Proofing | IEC 60068-2-78 (constant damp heat), IEC 60068-2-30 (cyclic damp heat) |
| Certifications | IEC / UL / CSA |
