Overload relay module, 230 V AC 50 Hz supply, manual/auto reset, LED status display, CE

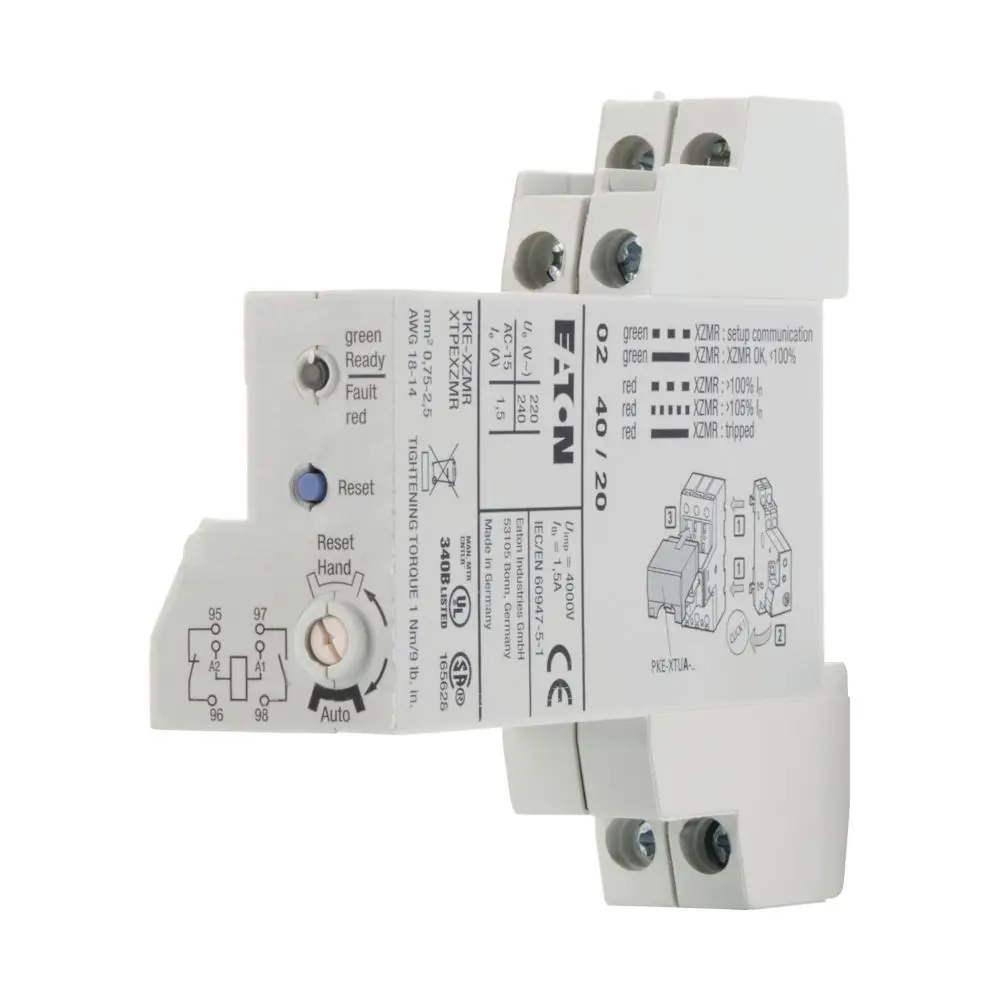

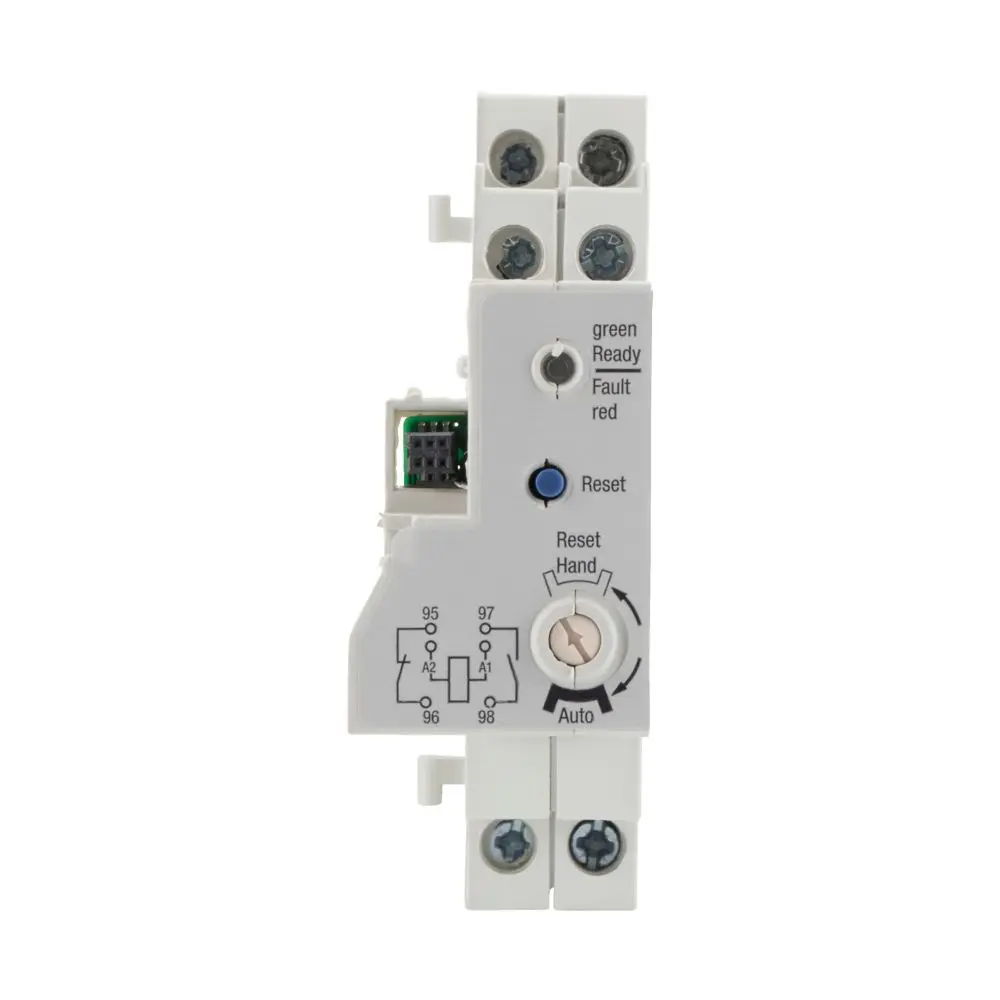

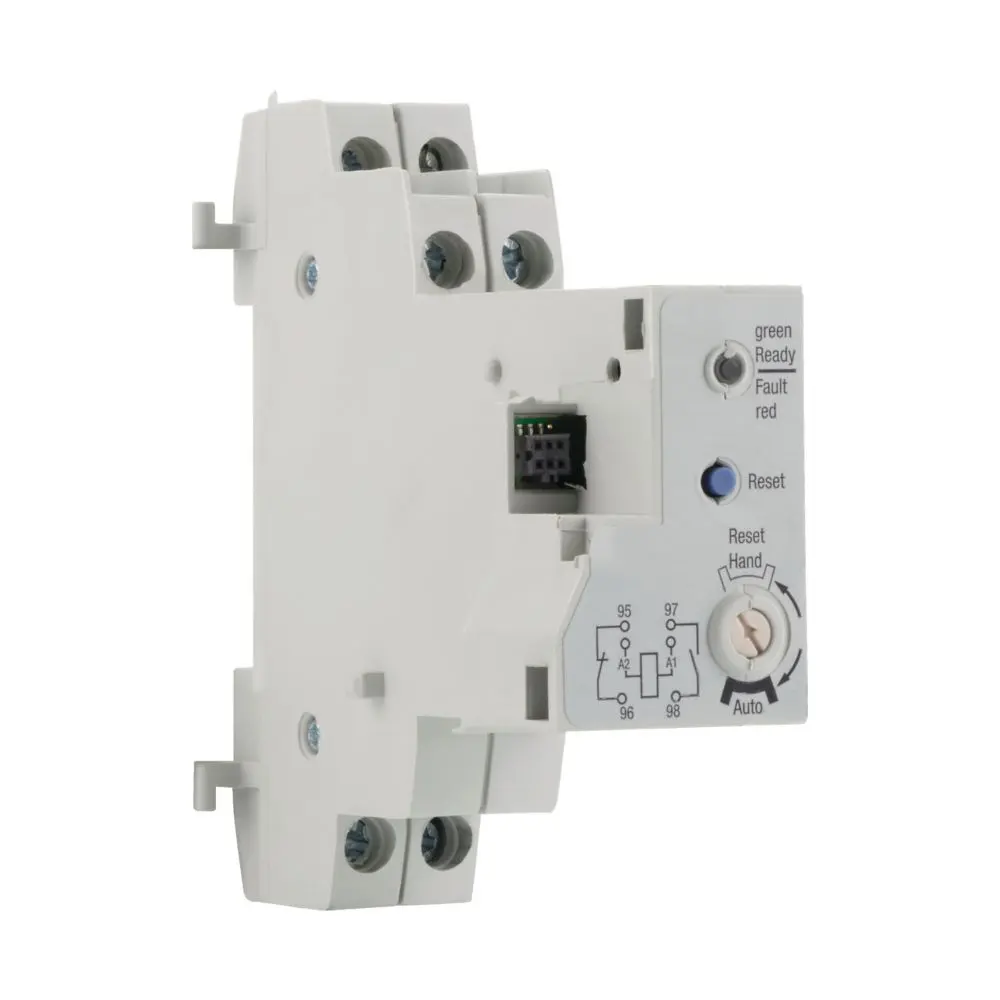

The Eaton Moeller® series PKE overload relay module (catalog no. 173416, model PKE-XZMR 230V50HZ) is designed for use with PKE motor-protective circuit breakers equipped with advanced PKE-XTU…A… trip blocks. Mounted directly on the right side, it provides overload relay functionality, ensuring the breaker does not trip under overload conditions. This module features LED status indication, manual or automatic reset options, and safe electrical isolation up to 440 V between auxiliary and main contacts. With a rated control supply voltage of 230 V AC (50 Hz), 1.5 A operational current, and a lifespan of up to 200,000 electrical and 5,000,000 mechanical operations, it delivers reliable performance. CE compliant and meeting IEC standards, the PKE-XZMR module enhances monitoring and control in industrial motor protection systems.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton |
|---|---|
| Series | Moeller PKE |
| Catalog Number | 173416 |
| Model Code | PKE-XZMR (230V50HZ) |
| EAN | 4015081698172 |
| Product Type | Overload Relay Module (Accessory) |
| For Use With | PKE motor-protective circuit breakers (with PKE-XTU…A… trip blocks) |
| Mounting Method | Direct attachment, right side |
| Dimensions (L × W × H) | 105 × 105 × 50 mm |
| Weight | 0.079 kg |
| Rated Control Supply Voltage (Us) | 230 V AC (50 Hz) |
|---|---|
| Rated Operational Voltage (Ue) | 500 V AC max |
| Rated Operational Current (Ie) | 1.5 A (AC-15 at 220–240 V) |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV AC |
| Power Consumption (Pick-up) | 1.7 VA at 50 Hz |
| Reset Function | Manual or Automatic (push-button) |
| Status Indication | LED display |
| Auxiliary Contacts | 1 NO + 1 NC |
| Lifespan (Electrical) | 200,000 operations |
| Lifespan (Mechanical) | 5,000,000 operations |
| Safe Isolation | 440 V between auxiliary and main contacts (per EN 61140) |
| Short-Circuit Protection Rating | 6 A gG/gL fuse (contacts) |
| Terminal Capacity | 0.75–2.5 mm² (solid/flexible with ferrule), AWG 18–14 |
| Ambient Operating Temperature | -25 °C … +55 °C |
| Pollution Degree | 3 |
| Overvoltage Category | III |
| Heat Dissipation per Pole (Pvid) | 0.017 W |
| Static Heat Dissipation (Pvs) | 0.54 W |
| Heat Dissipation Capacity (Pdiss) | 0 W |
| Certifications | CE |
