Eaton / Moeller Series
Door Coupling Handle, IEC/UL/CSA
The Eaton/Moeller PKE-XH is a black door coupling handle accessory designed for use with PKE motor-protective circuit breakers. It complies with IEC/EN 60204 standards for use as a main switch and provides clear ON/OFF and “+” (tripped) positions. The handle is lockable with up to three padlocks (hasp size 4–8 mm), includes a carrier with an extension shaft (cuttable for mounting depths of 100–240 mm), and offers IP65 protection. Suitable for industrial applications, the PKE-XH ensures safe and visible disconnection while meeting UL, CSA, and CE certification requirements.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton / Moeller |
|---|---|
| Model | PKE-XH |
| Product Type | Door Coupling Handle |
| Color | Black |
| For Use With | PKE Circuit Breakers |
| Function | Main Switch (per IEC/EN 60204) |
| Old Moeller Part Number | PKE-XH |
| New Eaton Part Number | XTPEXRHMB |
| Degree of Protection | IP65 (IEC), Type 4X/12 (UL/CSA) |
|---|---|

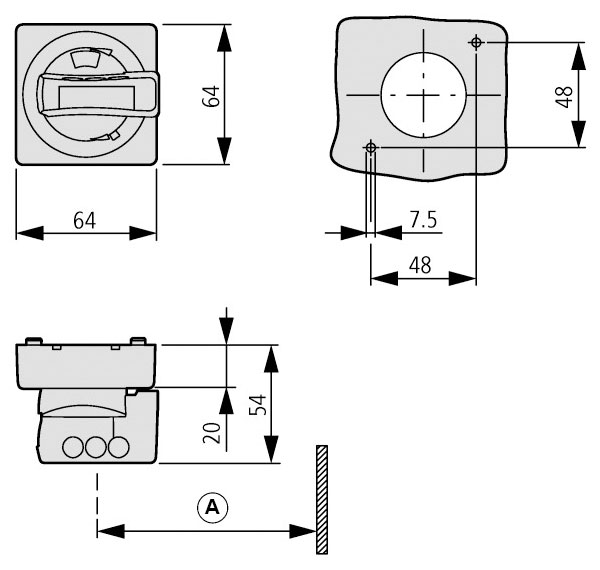

| Mounting Depth | 100–240 mm (shaft adjustable) |
| Lockable | Yes, with up to 3 padlocks (4–8 mm hasp) |
| Handle Positions | ON / OFF / "+" (Tripped) |
| Extension Shaft | Included, cuttable (PKZ0-XAH) |
| Standards Compliance | IEC/EN 60204, IEC 60947-4-1 |
| Certifications | UL 508, CSA-C22.2 No. 14, CE |
| UL File Number | E36332 |
| CSA File Number | 165628 |
| ETIM Classification | EC000230 - Door coupling handle for switchgear |
| Special Notes | Not designed with door interlock or red/yellow handle |
