Eaton / Moeller Series
SmartWire-DT, accessory module, motor protection communication, manual/auto, IEC/UL/CSA

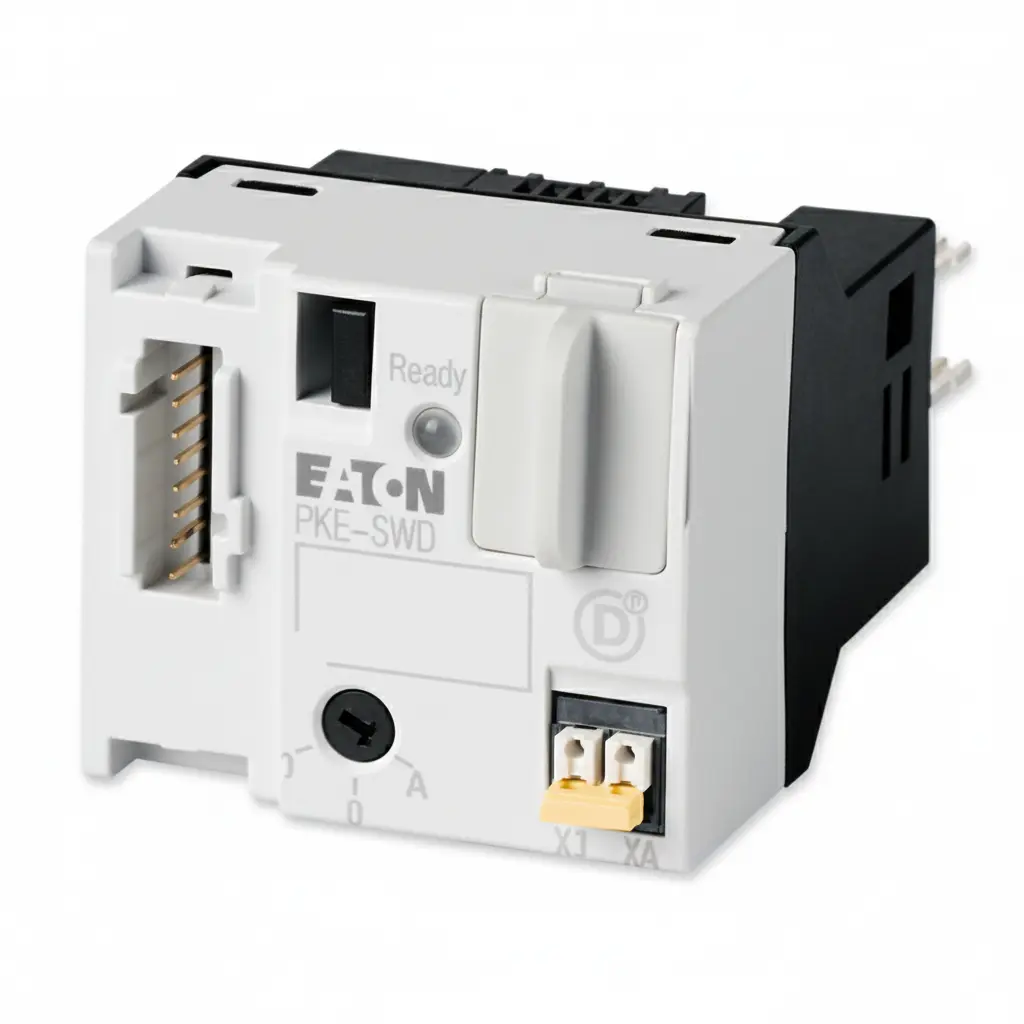

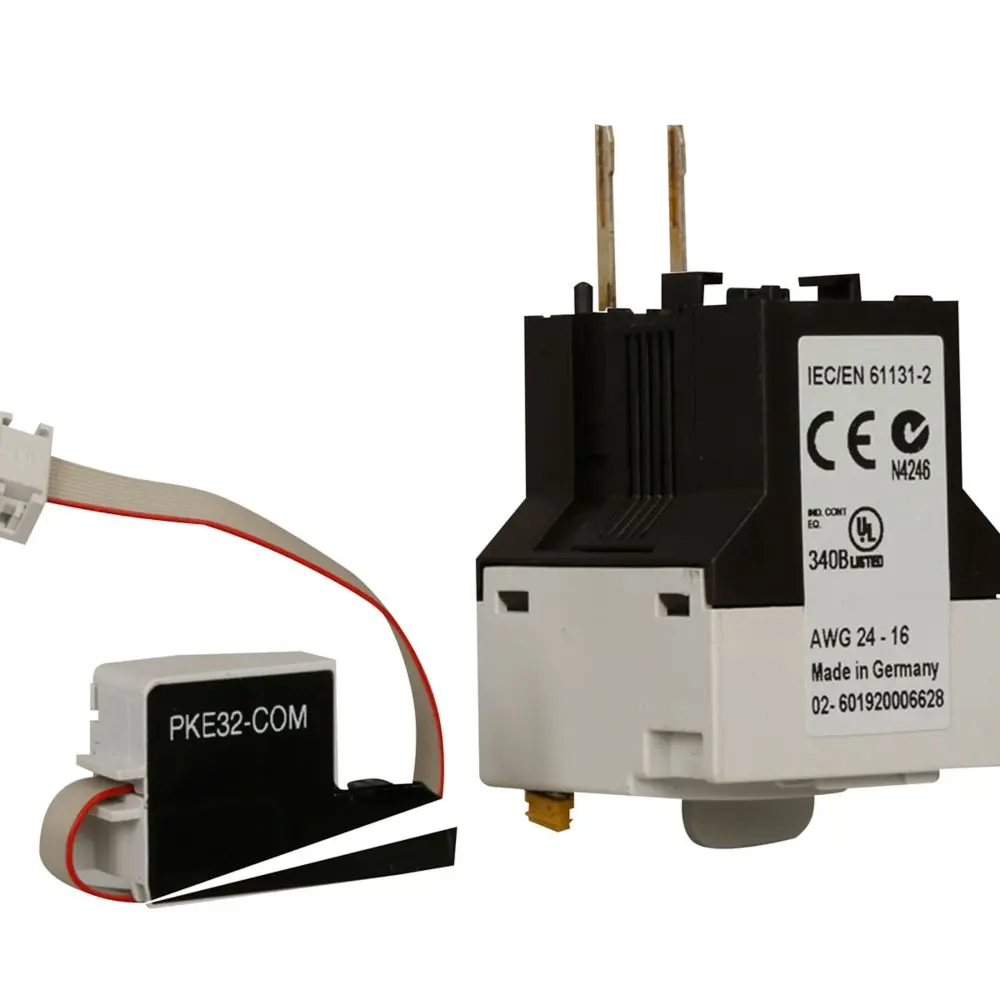

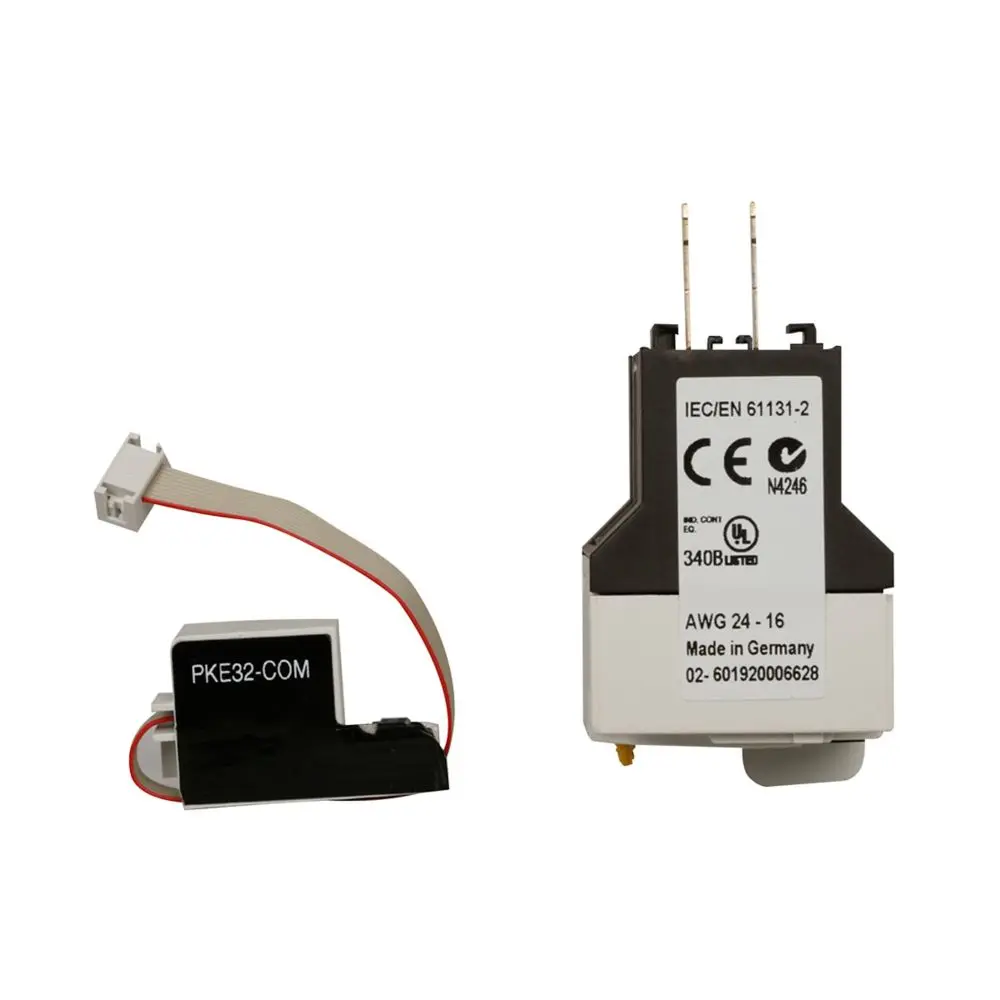

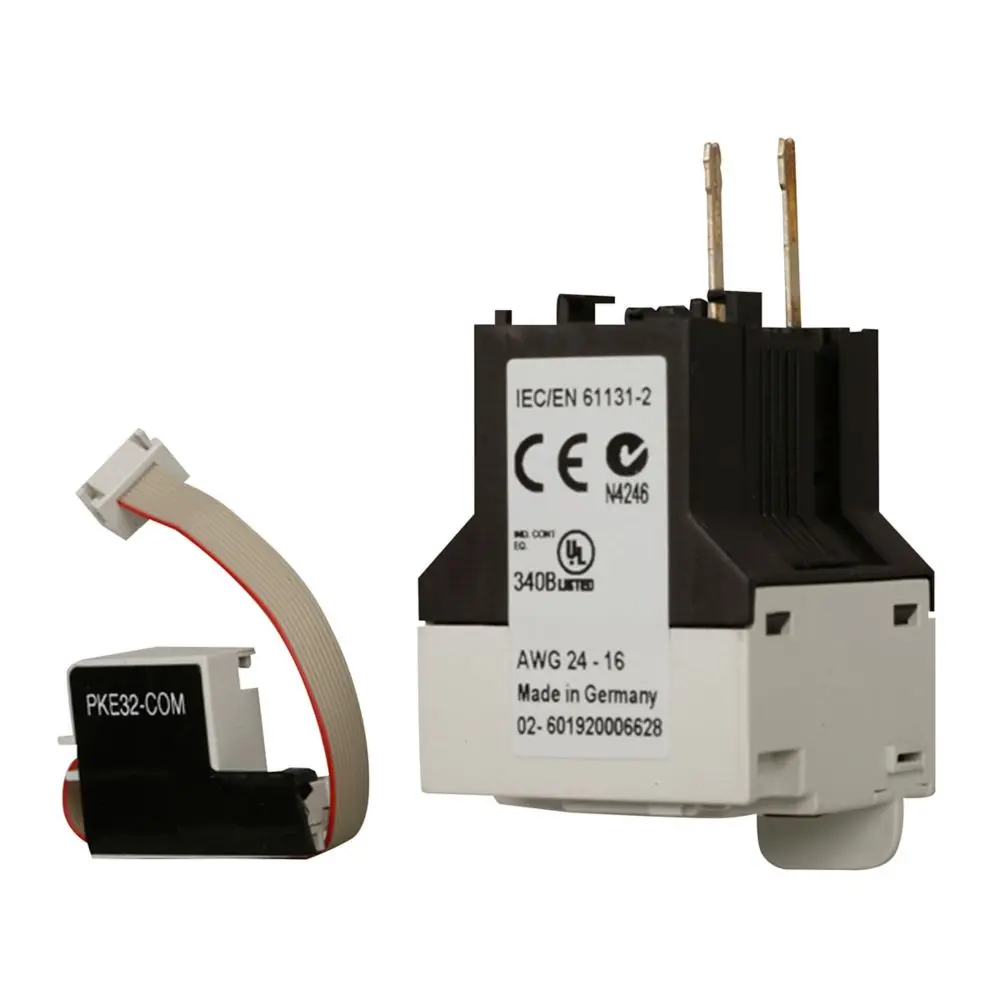

The Eaton/Moeller PKE-SWD-32 is a SmartWire-DT communication module designed for use with PKE12/32 motor-protective circuit breakers and MSC-DEA motor-starter combinations. It enables communication and monitoring of trip blocks (PKE-XTUA-…) for motors up to 15 kW/400 V, providing integration with SmartWire-DT networks. The module mounts directly on DILM contactors (DILM7…DILM32) with 24 V DC control voltage and includes a connecting cable for linking to PKE trip blocks. It supports both manual and automatic operation with a built-in 1-0-A selector switch, selectable overload relay (ZMR) function, and provides status feedback such as switch positions, motor current, trip indications, and overload settings. Built to IEC/EN 61131-2, IEC/EN 60947, and EN 50178 standards, the PKE-SWD-32 features IP20 protection, compact dimensions (45 × 38 × 76 mm), and robust EMC compliance. Approved for UL and CSA, this module ensures seamless SmartWire-DT connectivity in motor starter assemblies.
We source directly from Eaton - 100% genuine, new-in-box certified parts.

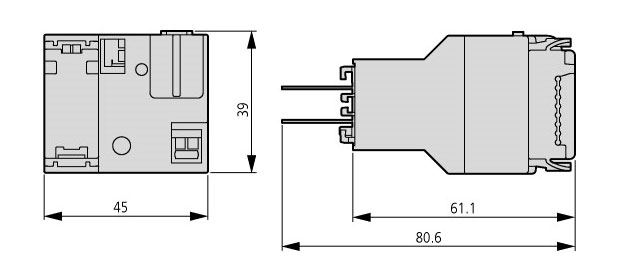

| Brand | Eaton/Moeller |
|---|---|
| Model | PKE-SWD-32 |
| Product Type | SmartWire-DT Communication Module |
| For Use With | PKE12/32, MSC-DEA motor starter combinations |
| Mounting | On DILM7…DILM32 contactors (24 V DC) |
| Operation Modes | Manual / Automatic (1-0-A switch) |
| Overload Relay Function | Selectable ZMR, trips contactor on overload |
| Connection to SmartWire-DT | Yes |
| Connection Type | Push-in terminals |
| Dimensions (W × H × D) | 45 × 38 × 76 mm |
| Weight | 0.04 kg |
| Standards | IEC/EN 61131-2, EN 50178, IEC/EN 60947 |
|---|---|
| Protection | IP20 |
| Ambient Temperature (Operation) | -25 to +60 °C |
| Ambient Temperature (Storage) | -30 to +70 °C |
| Humidity | 5 – 95 % (non-condensing) |
| Vibration Resistance | 3.5 mm (5–8.4 Hz), 1 g (8.4–150 Hz) |
| Shock Resistance | 15 g, 11 ms (IEC/EN 60068-2-27) |
| Drop Resistance | 50 mm (free fall packaged 0.3 m) |
| Overvoltage Category | II |
| Pollution Degree | 2 |
| Electrostatic Discharge | Air: 8 kV, Contact: 4 kV |
| EMC Immunity | 10 V/m (80–1000 MHz), 3 V/m (1.4–2 GHz), 1 V/m (2–2.7 GHz) |
| Radio Interference | EN 55011 Class A |
| Burst Immunity | 1 kV (SmartWire-DT lines & signal lines) |
| Power Supply | 15 V DC (58 mA), plus 24 V DC control (0.5 A max.) |
| Outputs | 1 digital output (0.5 A, 20.4 – 28.8 V DC) |
| Fieldbus Connection | SmartWire-DT (SWD4-8SF2-5 plug) |
| Terminal Capacity | Solid: 0.2–1.5 mm² (AWG 24–16), Flexible: 0.25–1.5 mm² |
| Status Indication | Green/Orange LED |
| Certifications | UL508, CSA-C22.2 No.14, IEC60947-4-1, CE marking |
| UL File No. | E29184 |
| CSA File No. | 165628 |
| CSA Class No. | 3211-07 |
| North America Certification | UL Listed, CSA Certified |
