Eaton / Moeller Series
63A, 3P, main switch, black rotary handle with locking ring and STOP function, IP65 front, IEC/EN 60947/60204, VDE 0660, UL, CSA

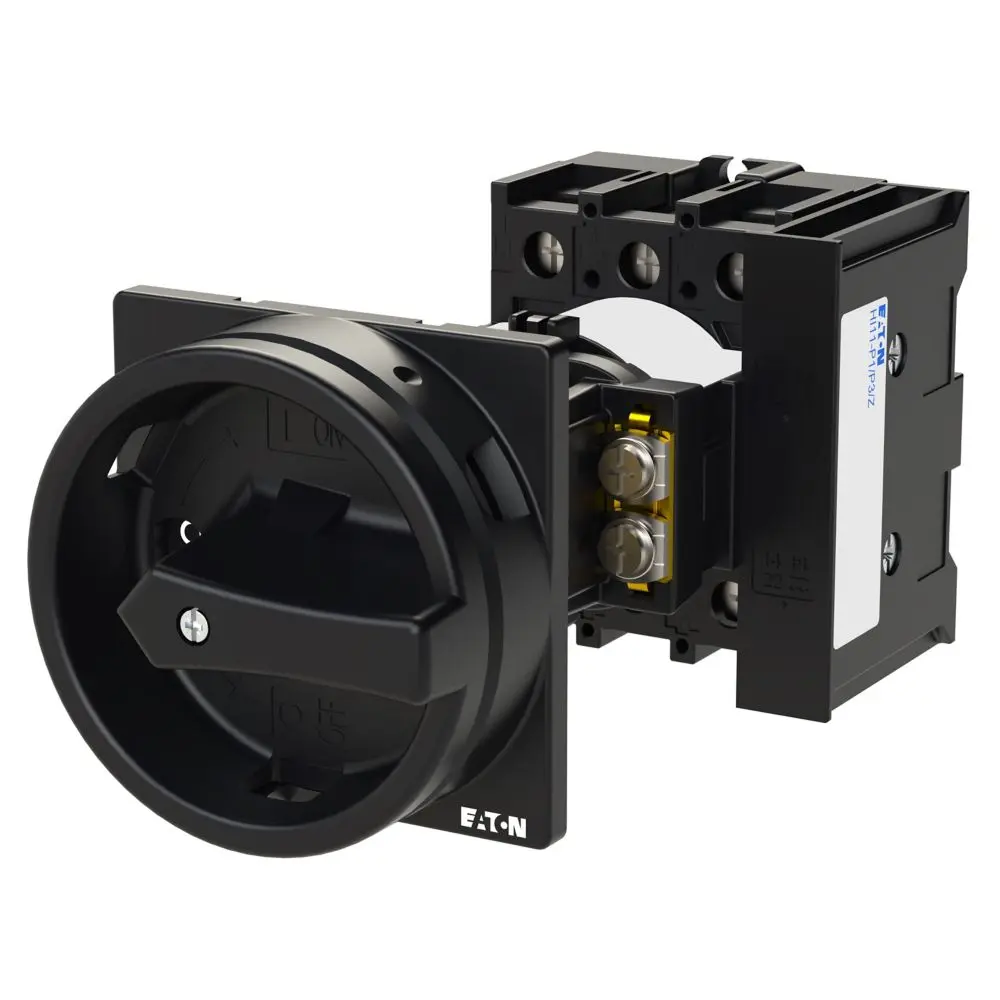

Eaton Moeller P3-63/V/SVB-SW/HI11 is a 3-pole, 63 A main switch (switch-disconnector per IEC/EN 60947-3) designed for rear mounting with an integrated STOP function. It includes a black door-coupling rotary handle and locking ring, lockable in the “0” (Off) position, and is equipped with 1 N/O + 1 N/C auxiliary contacts. The device is rated for 690 V AC and supports up to 30 kW motor switching at 400/415 V (AC-23A duty). It provides IP65 front and NEMA 1 protection, with short-circuit withstand up to 100 kA (supply side) and 1.26 kA Icw (1 s). Certified to IEC/EN 60947, VDE 0660, IEC/EN 60204, UL, and CSA, it operates between −25 °C and +50 °C (open) or −25 °C to +40 °C (enclosed).
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton |
|---|---|
| Part No. | P3-63/V/SVB-SW/HI11 |
| Catalog No. | 027010 |
| Product Range | Main switch / Maintenance switch |
| Product Type | Switch-disconnector (IEC/EN 60947-3) |
| Poles | 3 |
| Rated Uninterrupted Current (Iu) | 63 A |
| Auxiliary Contacts | 1 N/O + 1 N/C |
| Operator / Control Element | Black rotary handle with locking ring |
| Locking Facility | Lockable in 0 (Off) position |
| Functions | STOP function; Interlockable |
| Mounting | Rear mounting |
| Degree of Protection (Front) | IP65 / NEMA 1 |
| Electrical Connection (Main) | Screw connection (M5 terminals) |
| Mechanical Life | > 0.1 × 10⁶ operations |
| Rated Operational Voltage (Ue) | 690 V AC |
|---|---|
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Overvoltage Category / Pollution Degree | III / 3 |
| Safe Isolation (EN 61140) | 440 V AC between contacts |
| AC-23A Motor Rating (50–60 Hz) | 18.5 kW @ 230 V; 30 kW @ 400/415 V; 45 kW @ 500 V; 55 kW @ 690 V |
| AC-3 Motor Rating | 15 kW @ 230 V; 30 kW @ 400/415 V; 30 kW @ 500 V; 30 kW @ 690 V |
| Rated Conditional Short-Circuit Current (Iq) | 100 kA (supply side); 4 kA (load side) |
| Rated Short-Time Withstand Current (Icw, 1 s) | 1260 Arms (1.26 kA) |
| Rated Breaking Capacity | 230 V: 640 A; 400 V: 600 A; 500 V: 590 A; 690 V: 340 A |
| Rated Making Capacity | 800 A (per IEC 60947-3) |
| Recommended Fuse | gG/gL 80 A (max 150 A UL) |
| Ambient Temperature | Open −25 … +50 °C; Enclosed −25 … +40 °C |
| Max. Operating Frequency | 1200 operations per hour |
| Terminal Capacity | 1 × (2.5–35) mm² or 2 × (2.5–10) mm² solid/stranded; 1 × (1.5–25) mm² or 2 × (1.5–6) mm² with ferrules; 3 Nm torque |
| Climatic Proofing | Damp heat (constant and cyclic) per IEC 60068-2-78 / -30 |
| Standards / Certifications | IEC/EN 60947-3, VDE 0660, IEC/EN 60204, UL, CSA |
