Eaton / Moeller Series
63A, 3P, on-off switch, black thumb grip with front plate; service distribution board mount; 1NO/1NC, UL/CSA/IEC/CE

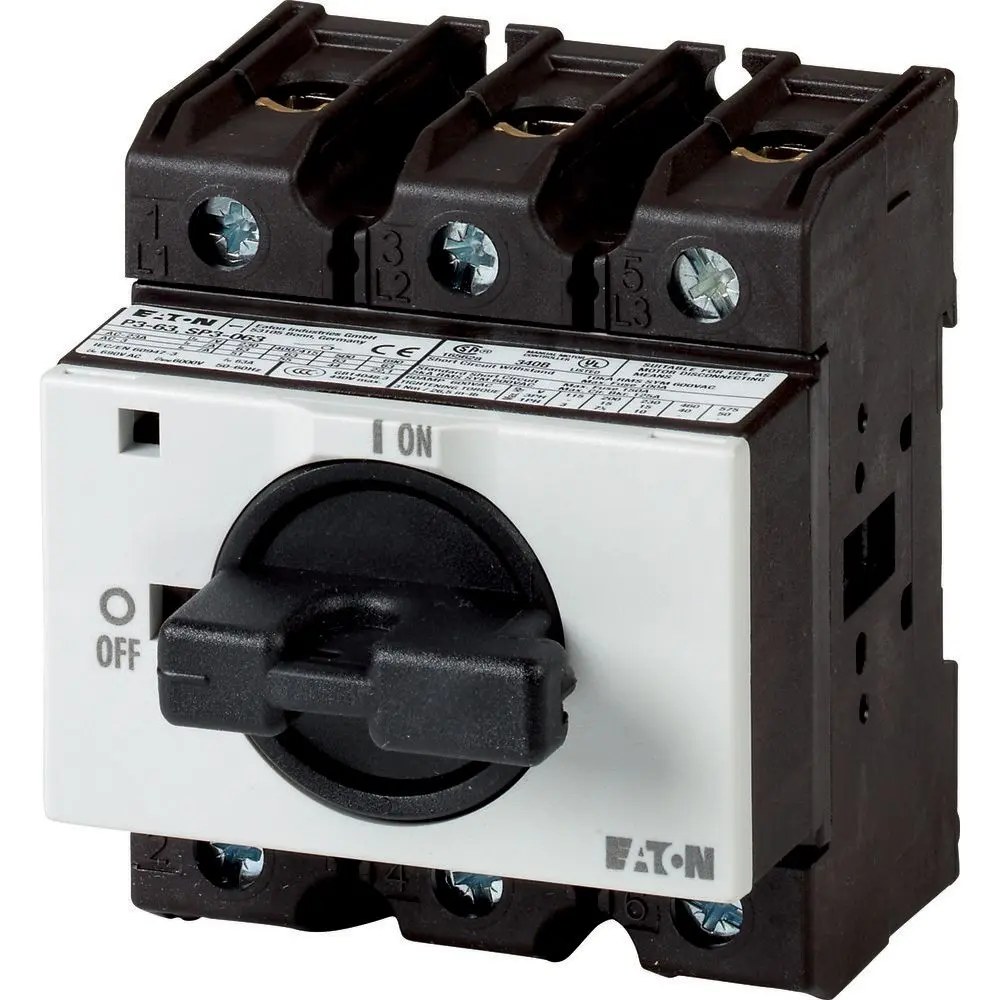

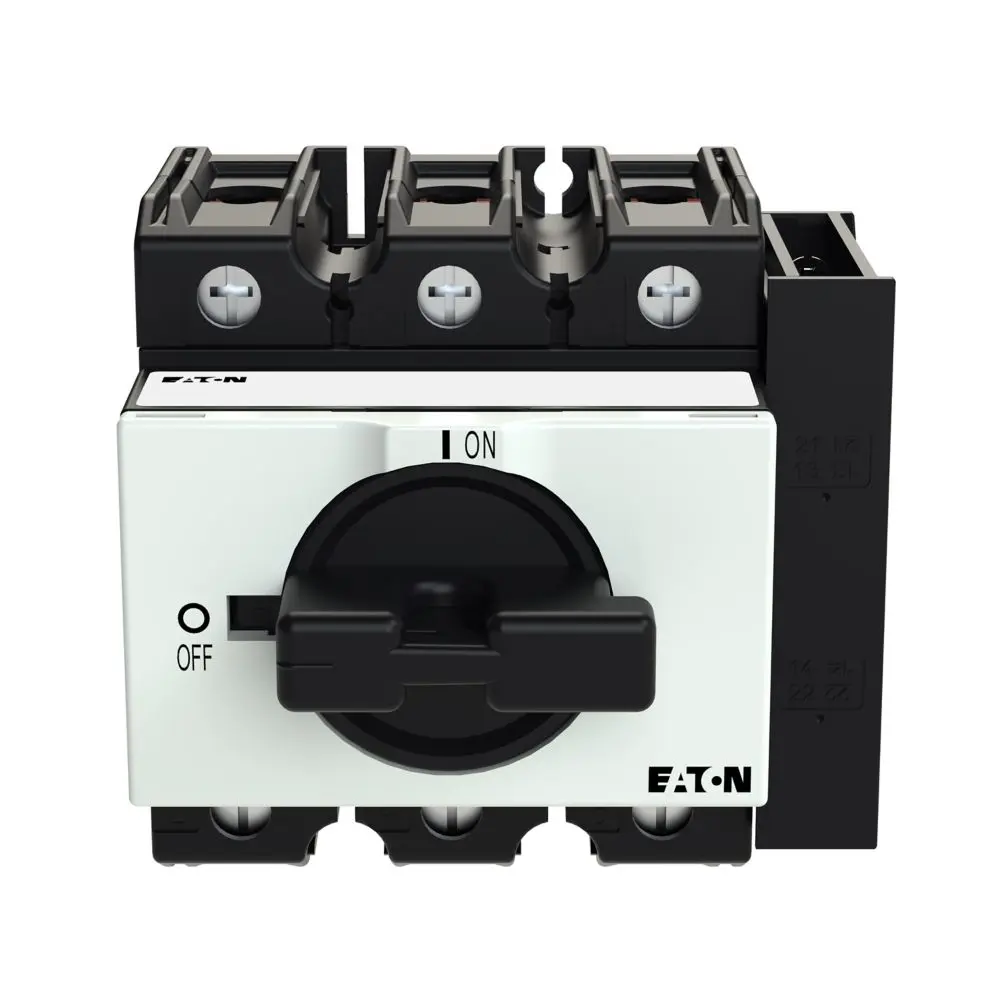

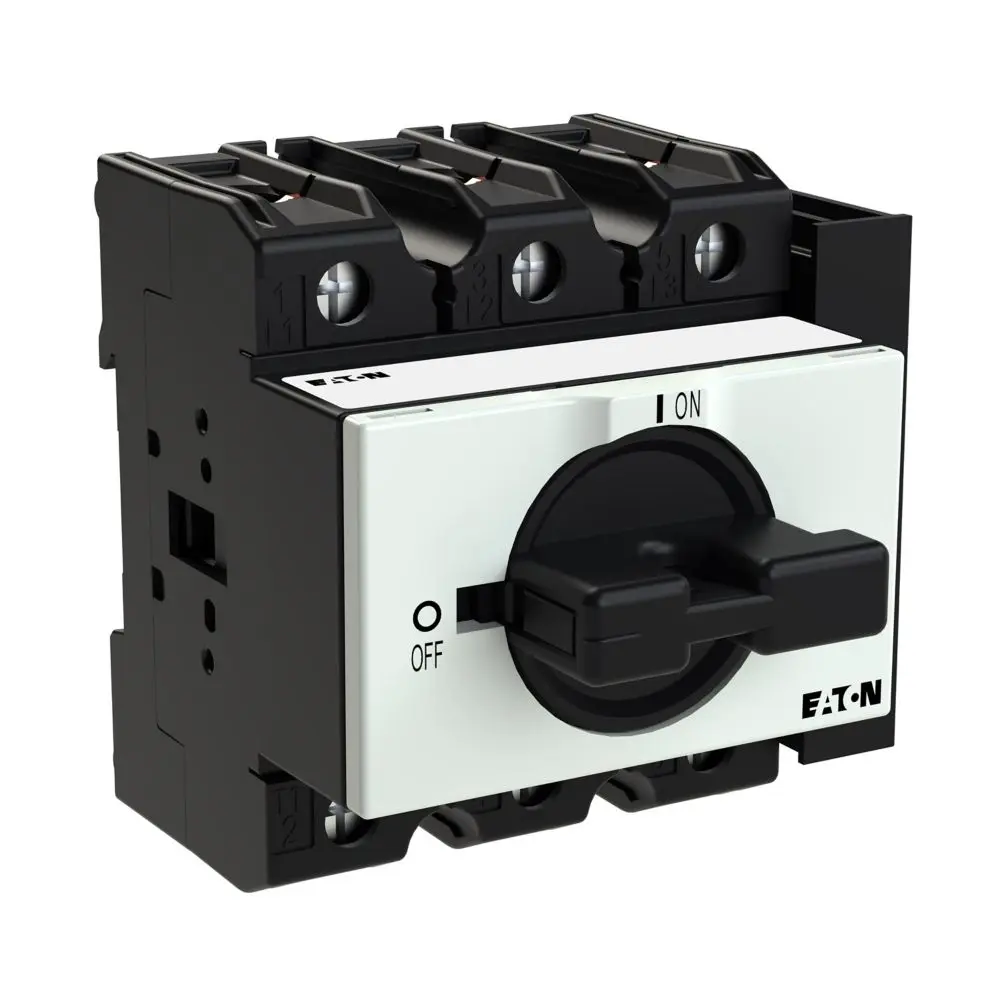

Eaton Moeller® series P3 On-Off switch P3-63/IVS/HI11 is a 63 A, 3-pole, service distribution board-mounted switch-disconnector with a black short thumb-grip operator and front plate. Designed for branch circuits and motor disconnect applications (UL/CSA), it provides IP30 protection and is rated up to 690 V AC. It features 1 NO + 1 NC auxiliary contacts and supports AC-3, AC-23A, and DC-23A switching categories. The switch offers short-circuit protection up to 100 kA (supply side) and complies with UL, CSA, IEC, CE, and VDE standards for reliable performance in industrial environments.
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller® |
|---|---|
| Series | P3 |
| Catalog Number | 081593 |
| Model | P3-63/IVS/HI11 |
| Product Type | On-off switch (switch-disconnector) |
| Amperage | 63 A |
| Poles | 3 |
| Auxiliary Contacts | 1 NO + 1 NC |
| Operator | Black short thumb-grip with front plate |
| Mounting Method | Service distribution board mounting |
| Mounting Position | As required |
| Degree of Protection (Front) | IP30 |
| NEMA Rating | Other |
| Mechanical Life | 100,000 operations |
| Operating Frequency | 1200 operations per hour |
| Safe Isolation | 440 V AC (EN 61140) |
| Shock Resistance | 15 g (IEC/EN 60068-2-27) |
| Operating Temperature Range | −25 °C to +50 °C |
| Dimensions (L × W × H) | 87 mm × 87 mm × 83 mm |
| Weight | 0.327 kg |
| Suitable For | Branch circuits; ground or distribution board installation; motor disconnect (UL/CSA) |
| Rated Operational Voltage (AC, max) | 690 V |
|---|---|
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Uninterrupted Current (Iu) | 63 A |
| AC-21 (440 V) | Ie = 63 A |
| AC-23A (230–690 V) | Ie = 63 A |
| AC-3 (230–240 V) | Ie = 51 A |
| AC-3 (400–415 V) | Ie = 55 A |
| AC-3 (500 V) | Ie = 44 A |
| AC-3 (690 V) | Ie = 22.1 A |
| Rated Making Capacity (≤ 690 V) | 800 A |
| Rated Breaking Capacity (230 V) | 640 A |
| Rated Breaking Capacity (400/415 V) | 600 A |
| Rated Breaking Capacity (500 V) | 590 A |
| Rated Breaking Capacity (690 V) | 340 A |
| Short-Circuit Ratings | Conditional 100 kA (supply side); 4 kA (load side); Basic SCCR 10 kA (150 A fuse); ICW 1.26 kA (1 s) |
| Motor Ratings (60 Hz) | 3 HP @ 120 V 1φ; 7.5 HP @ 208 V 1φ; 15 HP @ 208 V 3φ; 10 HP @ 240 V 1φ; 15 HP @ 240 V 3φ; 40 HP @ 480 V 3φ; 50 HP @ 600 V 3φ |
| Terminal Capacity | 1×(1.5–25) mm² flex w/ ferrule; 1×(2.5–35) mm² solid/stranded; 2×(2.5–10) mm² solid/stranded; 2×(1.5–6) mm² flex; 14–2 AWG |
| Terminal Hardware | M5 screw terminals; 3 Nm (26.5 lb-in) |
| Environmental | −25 … +50 °C; Overvoltage Category III; Pollution Degree 3; damp heat per IEC 60068-2-78/-2-30 |
| Ingress Protection / Enclosure | IP30 (front) |
| Certifications | UL (E36332, NLRV, UL 60947-4-1); CSA (C22.2 No. 94, No. 60947-4-1-14, File 012528, Class 3211-05); IEC/EN 60947-3, 60204; VDE 0660; CE |
