Eaton / Moeller Series
63A, 3P, main/emergency disconnect switch, flush mounting, red rotary handle with yellow locking ring, CE/UL/CSA/IEC
The Eaton Moeller P3-63/EA/SVB is a 63 A, 3-pole main and emergency disconnect switch engineered for safe circuit isolation and power disconnection. Designed for flush mounting, it features a red rotary handle with a yellow locking ring that can be locked in the 0 (OFF) position for added operator safety. Rated for up to 690 V AC and 63 A, this switch provides dependable operation in demanding industrial applications, including use as a motor disconnect or branch circuit isolator. With high performance ratings up to 55 kW at 690 V, a durable construction, and compliance with CE, UL, CSA, VDE, and IEC standards, the P3-63/EA/SVB ensures reliability, safety, and longevity for industrial control systems.
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller |
|---|---|
| Series | P3 |
| Model Code | P3-63/EA/SVB |
| Catalog Number | 031607 |
| Product Type | Main / Emergency Disconnect Switch |
| Mounting Method | Flush Mounting (Front, 4-hole) |
| Number of Poles | 3 |
| Amperage | 63 A |
| Actuator Type | Door-coupling rotary handle |
| Actuator Color | Red with yellow locking ring |
| Locking Feature | Lockable in 0 (OFF) position |
| Degree of Protection (Front) | IP65 / NEMA 12 |
| Mechanical Lifespan | 100,000 operations |
| Operating Frequency | 1200 operations/h |
| Ambient Temperature Range | −25 °C to +50 °C (enclosed max +40 °C) |
| Pollution Degree | 3 |
| Overvoltage Category | III |
| Housing Material | Plastic |
| Weight | 0.426 kg |

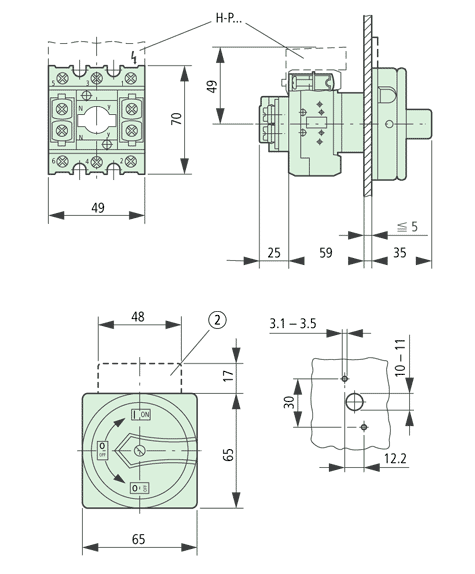

| Dimensions (H × W × D) | 102 × 87 × 128 mm |
| Rated Operational Voltage (Ue) | 690 V AC max |
|---|---|
| Rated Insulation Voltage (Ui) | 690 V AC |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Operational Current (Ie) | 63 A (AC-21 / AC-23A at 400 V) |
| Rated Operational Power (AC-23A @ 400 V) | 30 kW |
| Rated Operational Power (AC-3 @ 400 V) | 30 kW |
| Rated Operational Power (AC-23A @ 690 V) | 55 kW |
| Rated Short-Time Withstand Current (Icw) | 1.26 kA for 1 s |
| Conditional Short-Circuit Current (Iq) | 100 kA (supply side), 4 kA (load side) |
| Short-Circuit Protection | 80 A gG/gL Fuse |
| Rated Breaking Capacity (400 V) | 600 A (cos φ to IEC 60947-3) |
| Rated Making Capacity (up to 690 V) | 800 A (IEC/EN 60947-3) |
| Safe Isolation (EN 61140) | 440 V AC between contacts |
| Terminal Type | Screw connection (M5) |
| Terminal Capacity | 1 × (2.5–35 mm²) or 14–2 AWG |
| Tightening Torque | 3 Nm (26.5 lb-in) |
| Shock Resistance | 15 g (IEC/EN 60068-2-27) |
| Climatic Proofing | Damp heat cyclic and constant (IEC 60068-2-30/78) |
| Motor Ratings | 15 HP @ 230 V / 40 HP @ 480 V / 50 HP @ 600 V |
| Certifications | CE, UL E36332, CSA, VDE 0660, IEC/EN 60947-3/4-1, IEC/EN 60204 |
