Eaton / Moeller Series
63A, 3P, on-off switch, red thumb grip with yellow front plate; flush mounting; no auxiliaries, UL/CSA/IEC/VDE

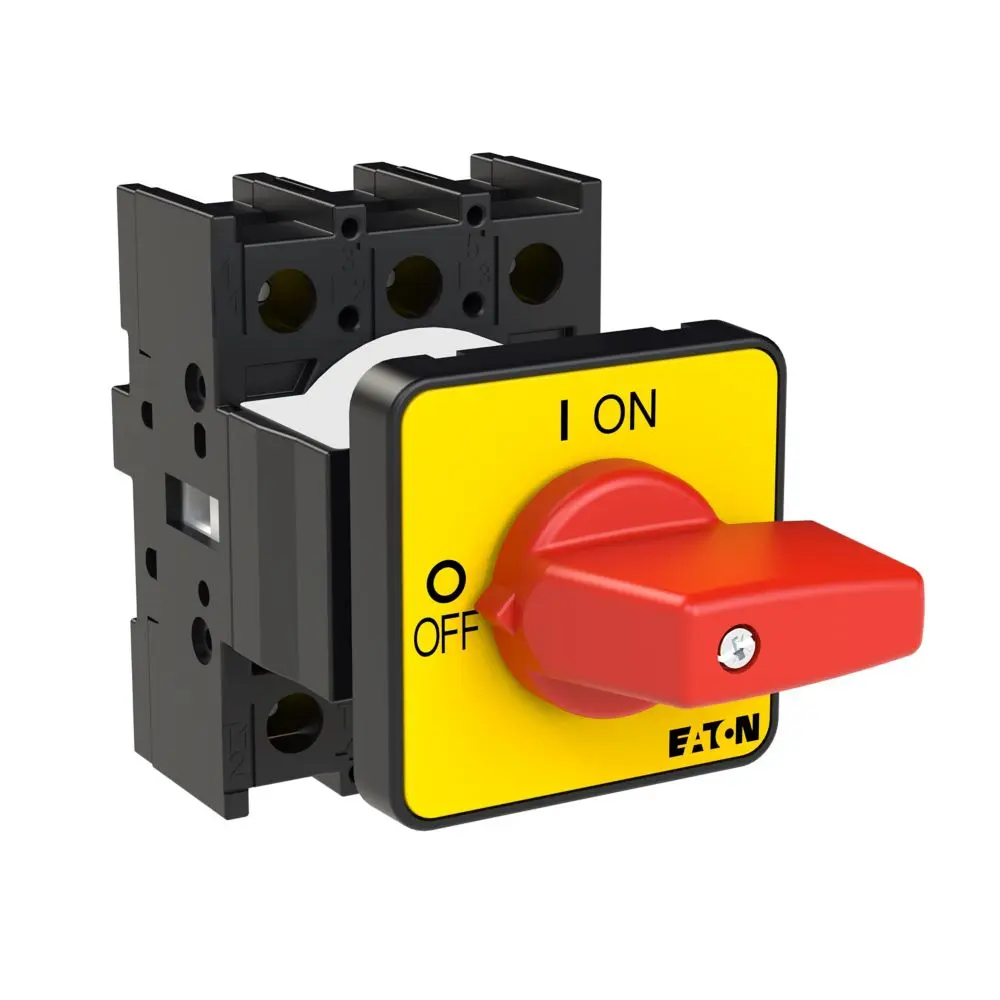

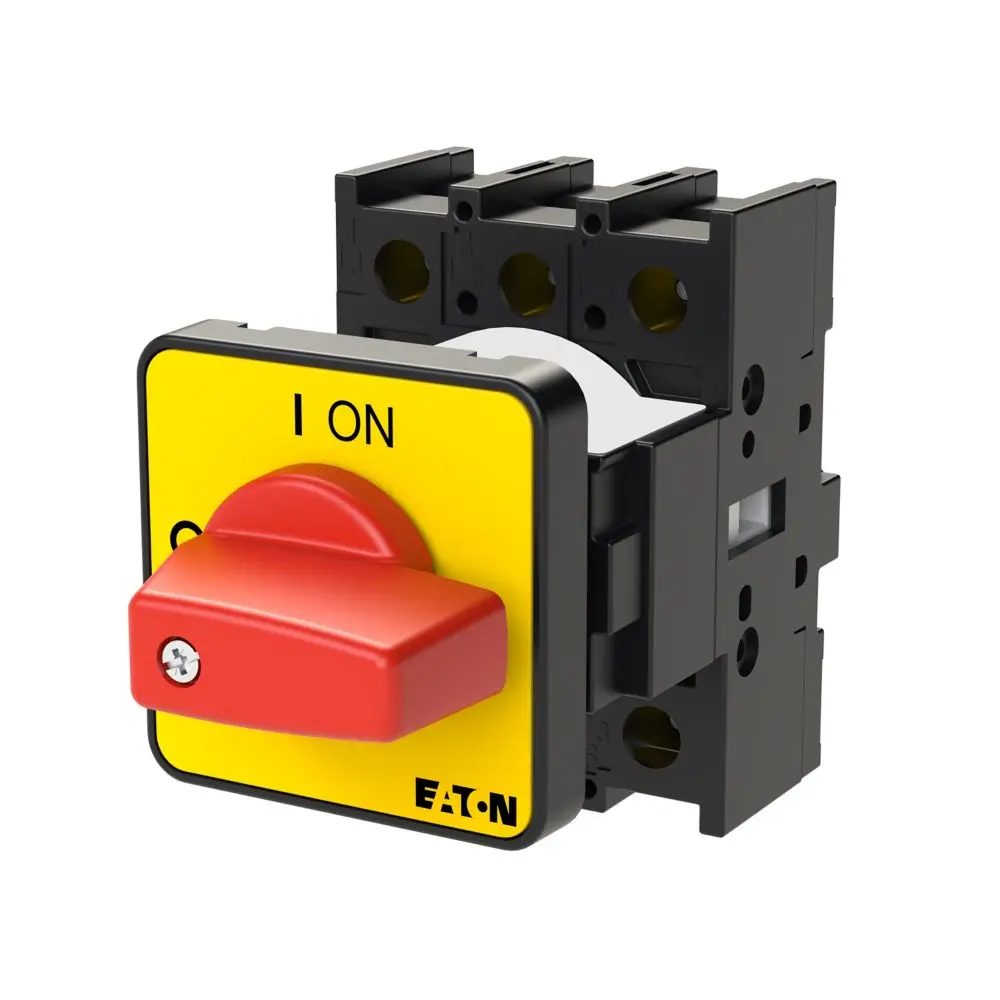

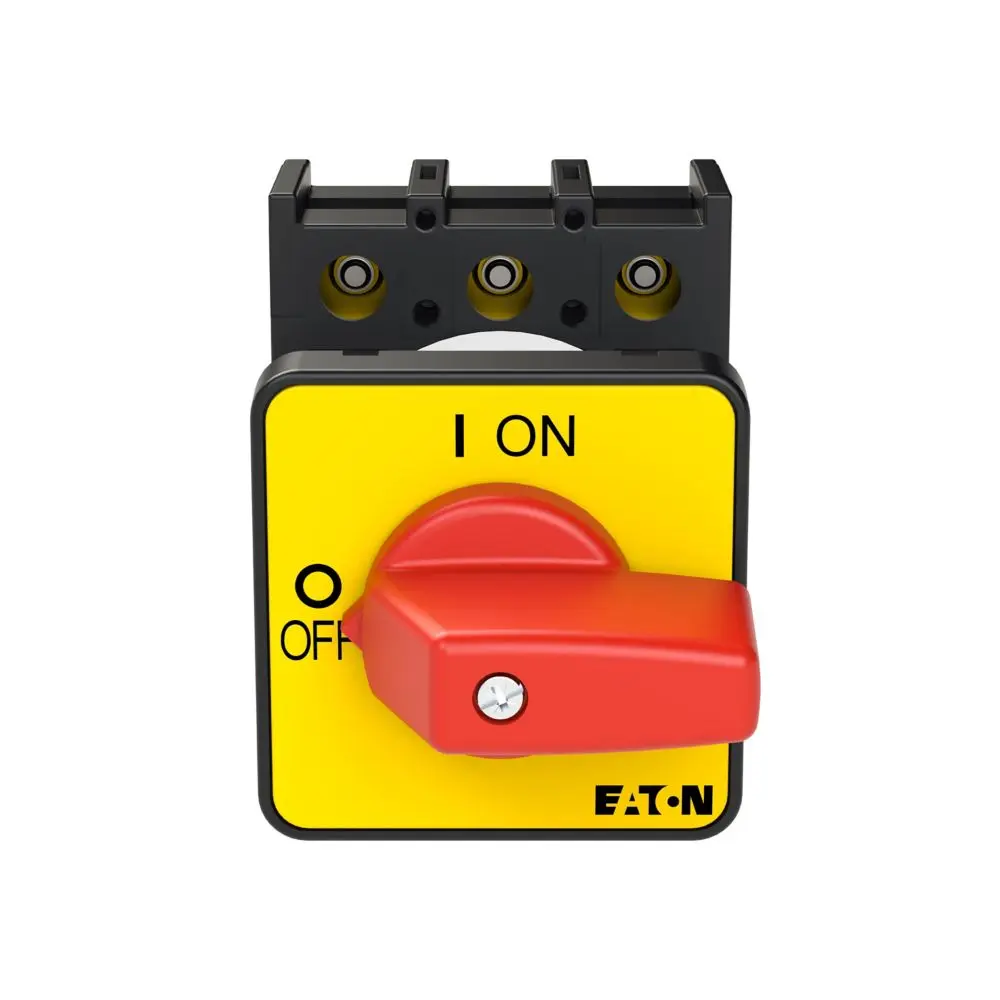

Eaton Moeller® series P3 On-Off switch P3-63/E-RT is a 63 A, 3-pole, flush-mounted switch-disconnector designed for emergency switching off applications. It features a red short thumb-grip actuator with a yellow front plate for clear visibility and operator safety. Rated up to 690 V AC, it provides IP65 front protection and NEMA 12 enclosure rating. This unit includes no auxiliary contacts and supports AC-3 and AC-23A motor switching duties up to 30 kW (400 V AC). Built to meet global standards including IEC/EN 60947-3, UL, CSA, and VDE 0660, this switch ensures reliable isolation and performance for industrial control and emergency stop installations.
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller® |
|---|---|
| Series | P3 |
| Catalog Number | 005743 |
| Model | P3-63/E-RT |
| Product Type | On-off switch (emergency switching off function) |
| Amperage | 63 A |
| Poles | 3 |
| Auxiliary Contacts | None |
| Operator | Red short thumb-grip with yellow front plate |
| Mounting Method | Flush mounting |
| Mounting Position | As required |
| Degree of Protection (Front) | IP65 |
| NEMA Rating | 12 |
| Mechanical Life | > 100,000 operations |
| Operating Frequency | 1200 operations per hour |
| Safe Isolation | 440 V AC (EN 61140) |
| Shock Resistance | 15 g (IEC/EN 60068-2-27) |
| Operating Temperature Range | −25 °C to +50 °C (open); −25 °C to +40 °C (enclosed) |
| Climatic Proofing | Damp heat (IEC 60068-2-78 / -2-30) |
| Motor Rating (AC-23A, 400 V) | 30 kW |
| Suitable For | Emergency power isolation and stop applications |
| Rated Operational Voltage (AC, max) | 690 V |
|---|---|
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Uninterrupted Current (Iu) | 63 A |
| AC-21 (400/415 V) | Ie = 63 A |
| AC-23A (230–690 V) | Ie = 63 A |
| AC-3 (230–240 V) | Ie = 51 A |
| AC-3 (400/415 V) | Ie = 55 A |
| AC-3 (500 V) | Ie = 44 A |
| AC-3 (690 V) | Ie = 22.1 A |
| Motor Power (AC-3, 400 V) | 30 kW |
| Motor Power (AC-23A, 400 V) | 30 kW |
| DC-1 (L/R = 1 ms) | Ie = 63 A, 60 V per contact pair |
| DC-23A (24–48 V) | Ie = 50 A (1–2 contacts in series) |
| DC-23A (120 V) | Ie = 25 A (3 contacts in series) |
| Rated Making Capacity (≤ 690 V) | 800 A |
| Rated Breaking Capacity (230 V) | 640 A |
| Rated Breaking Capacity (400/415 V) | 600 A |
| Rated Breaking Capacity (500 V) | 590 A |
| Rated Breaking Capacity (690 V) | 340 A |
| Short-Circuit Ratings | Conditional 100 kA (supply side); 4 kA (load side); Icw 1.26 kA (1 s) |
| Fuse Protection | 80 A gG/gL fuse |
| Motor Ratings (UL) | 3 HP @ 120 V 1φ; 7.5 HP @ 200 V 1φ; 10 HP @ 240 V 1φ; 15 HP @ 200 V 3φ; 15 HP @ 240 V 3φ; 40 HP @ 480 V 3φ; 50 HP @ 600 V 3φ |
| Terminal Capacity | 1×(2.5–35) mm² solid/stranded; 2×(2.5–10) mm² solid/stranded; 1×(1.5–25) mm² flex; 2×(1.5–6) mm² flex; 14–2 AWG |
| Terminal Hardware | M5 screw terminals; 3 Nm (26.5 lb-in) |
| Environmental | −25 … +50 °C; Overvoltage Category III; Pollution Degree 3 |
| Ingress Protection / Enclosure | IP65 (front), NEMA 12 |
| Certifications | IEC/EN 60947-3, IEC/EN 60204, VDE 0660, UL, CSA |
