Eaton / Moeller Series
100A, 3P, on-off switch, red thumb grip with yellow front plate; service distribution board mounting; lockable off position; UL/CSA/IEC/VDE

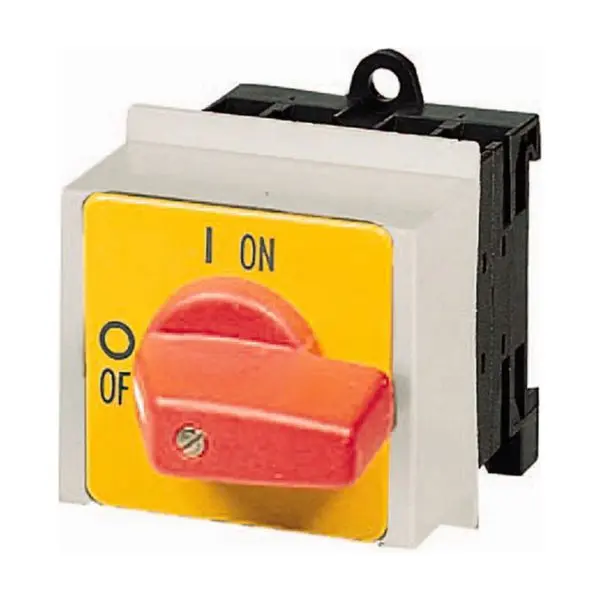

Eaton Moeller® series P3 On-Off switch P3-100/IVS-RT is a 100 A, 3-pole switch-disconnector designed for service distribution board mounting. It features a red short thumb-grip actuator and a yellow front plate for emergency switching off and safety isolation. The switch is lockable in the 0 (Off) position, providing enhanced safety during maintenance. Rated for up to 690 V AC, it supports AC-3 and AC-23A motor loads up to 55 kW at 400 V. With IP30 front protection, mechanical endurance over 100,000 operations, and compliance with IEC/EN 60947-3, UL, CSA, and VDE 0660, this device delivers robust performance and dependable safety for industrial distribution systems.
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller® |
|---|---|
| Series | P3 |
| Model | P3-100/IVS-RT |
| Product Type | On-off switch (emergency switching off function) |
| Amperage | 100 A |
| Poles | 3 |
| Auxiliary Contacts | None (user addable) |
| Operator | Red short thumb-grip with yellow front plate |
| Mounting Method | Service distribution board mounting |
| Locking Facility | Lockable in 0 (Off) position |
| Degree of Protection (Front) | IP30 |
| Mechanical Life | > 100,000 operations |
| Operating Frequency | 1200 operations per hour |
| Safe Isolation | 440 V AC (EN 61140) |
| Shock Resistance | 15 g (IEC/EN 60068-2-27) |
| Operating Temperature Range | −25 °C to +50 °C (open); −25 °C to +40 °C (enclosed) |
| Climatic Proofing | Damp heat constant/cyclic (IEC 60068-2-78 / -2-30) |
| Mounting Position | As required |
| Suitable For | Service and distribution panels; emergency power isolation |
| Rated Operational Voltage (AC, max) | 690 V |
|---|---|
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Uninterrupted Current (Iu) | 100 A |
| AC-23A (230 V) | Ie = 100 A / 30 kW |
| AC-23A (400/415 V) | Ie = 100 A / 55 kW |
| AC-23A (500 V) | Ie = 96 A / 55 kW |
| AC-23A (690 V) | Ie = 68 A / 55 kW |
| AC-3 (230 V) | Ie = 71 A / 22 kW |
| AC-3 (400/415 V) | Ie = 71 A / 37 kW |
| AC-3 (500 V) | Ie = 65 A / 45 kW |
| AC-3 (690 V) | Ie = 23.8 A / 37 kW |
| DC-1 (L/R = 1 ms) | Ie = 100 A, 60 V per contact pair |
| DC-23A (24–48 V) | Ie = 50 A (1–2 contacts in series) |
| DC-23A (120 V) | Ie = 25 A (3 contacts in series) |
| Rated Making Capacity (≤ 690 V) | 950 A |
| Rated Breaking Capacity (230 V) | 760 A |
| Rated Breaking Capacity (400/415 V) | 740 A |
| Rated Breaking Capacity (500 V) | 880 A |
| Rated Breaking Capacity (690 V) | 520 A |
| Short-Circuit Ratings | Conditional 80 kA (supply side); 4 kA (load side); Fuse 100 A gG/gL; Icw = 2 kA (1 s) |
| Motor Ratings (UL) | 5 HP @ 120 V 1φ; 10 HP @ 200 V 1φ; 15 HP @ 240 V 1φ; 20 HP @ 200 V 3φ; 25 HP @ 240 V 3φ; 60 HP @ 480 V 3φ; 75 HP @ 600 V 3φ |
| Terminal Capacity (mm²) | 1×(2.5–35); 2×(2.5–10); 1×(1.5–25 flex); 2×(1.5–6 flex) |
| Terminal Capacity (AWG) | 14 – 2 AWG |
| Terminal Hardware | M5 screw; 3 Nm (26.5 lb-in) |
| Environmental | −25 … +50 °C; Overvoltage Category III; Pollution Degree 3 |
| Ingress Protection / Enclosure | IP30 (front) |
| Certifications | IEC/EN 60947-3, IEC/EN 60204, VDE 0660, UL, CSA |
