Eaton / Moeller Series

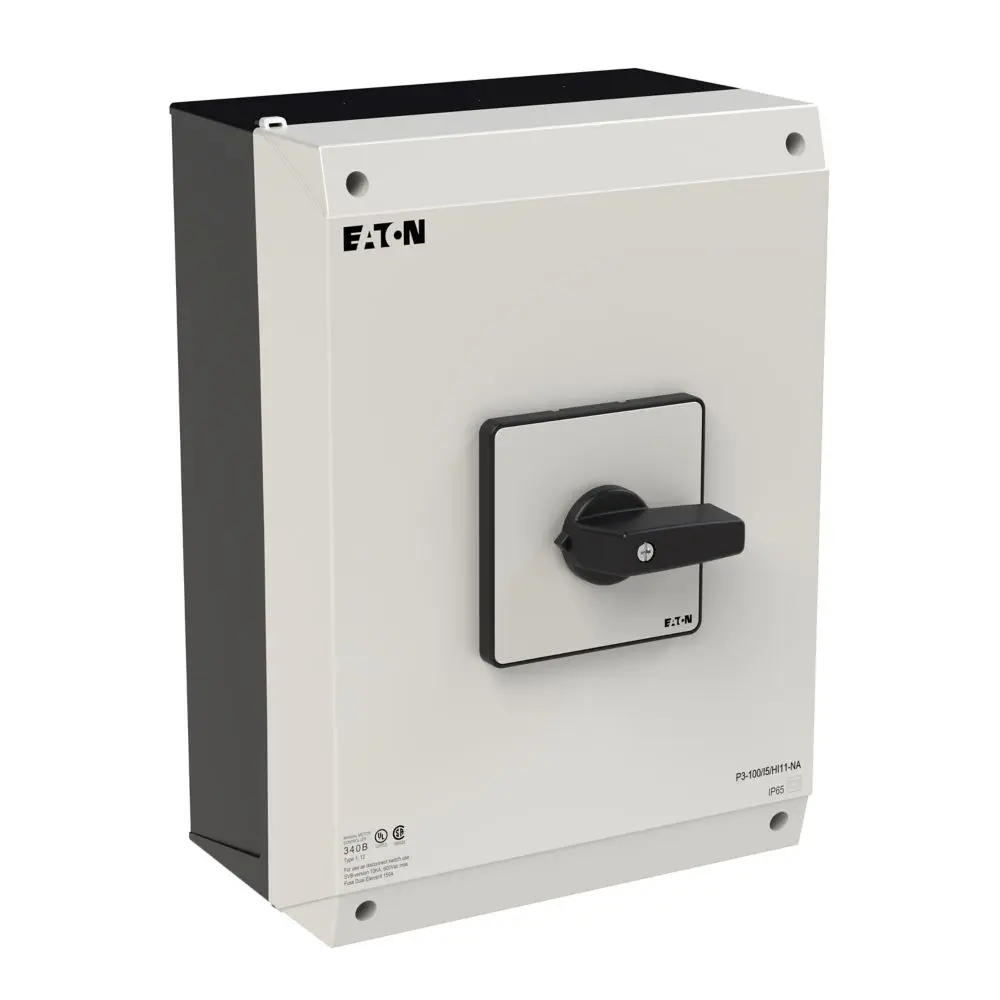

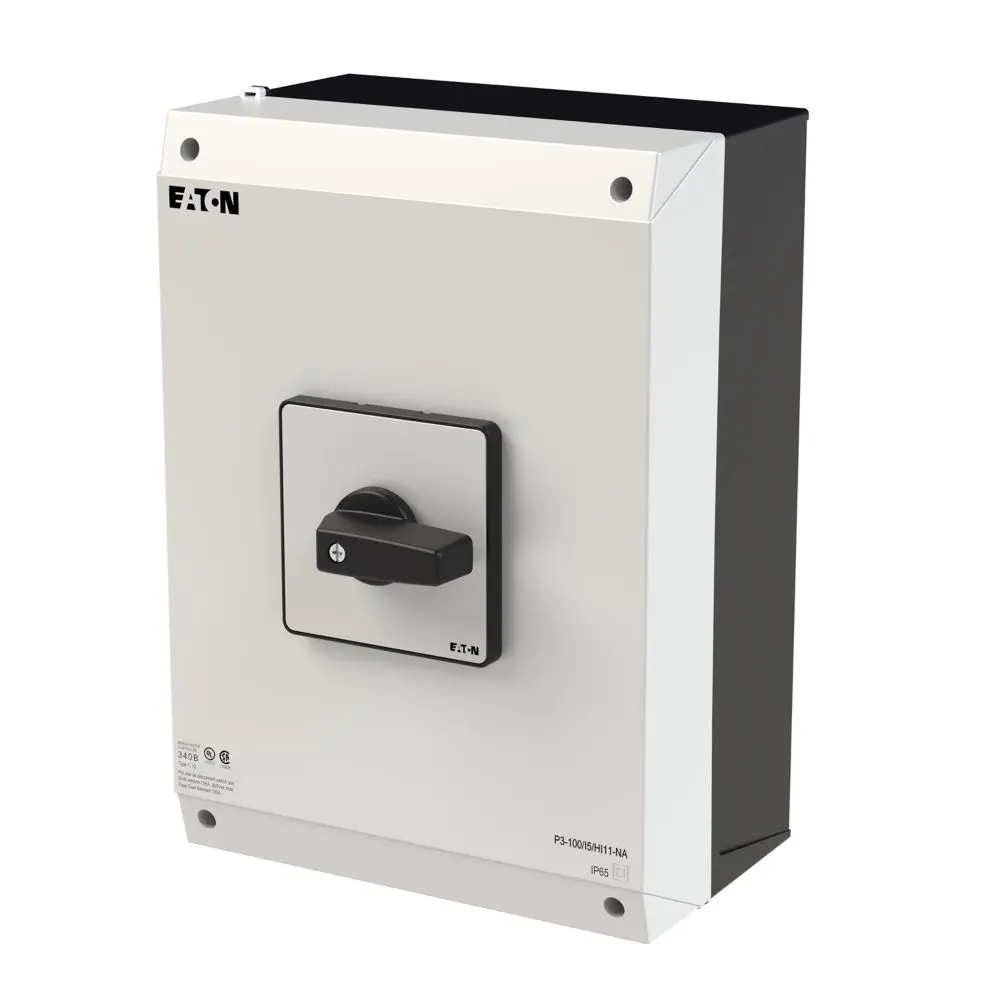

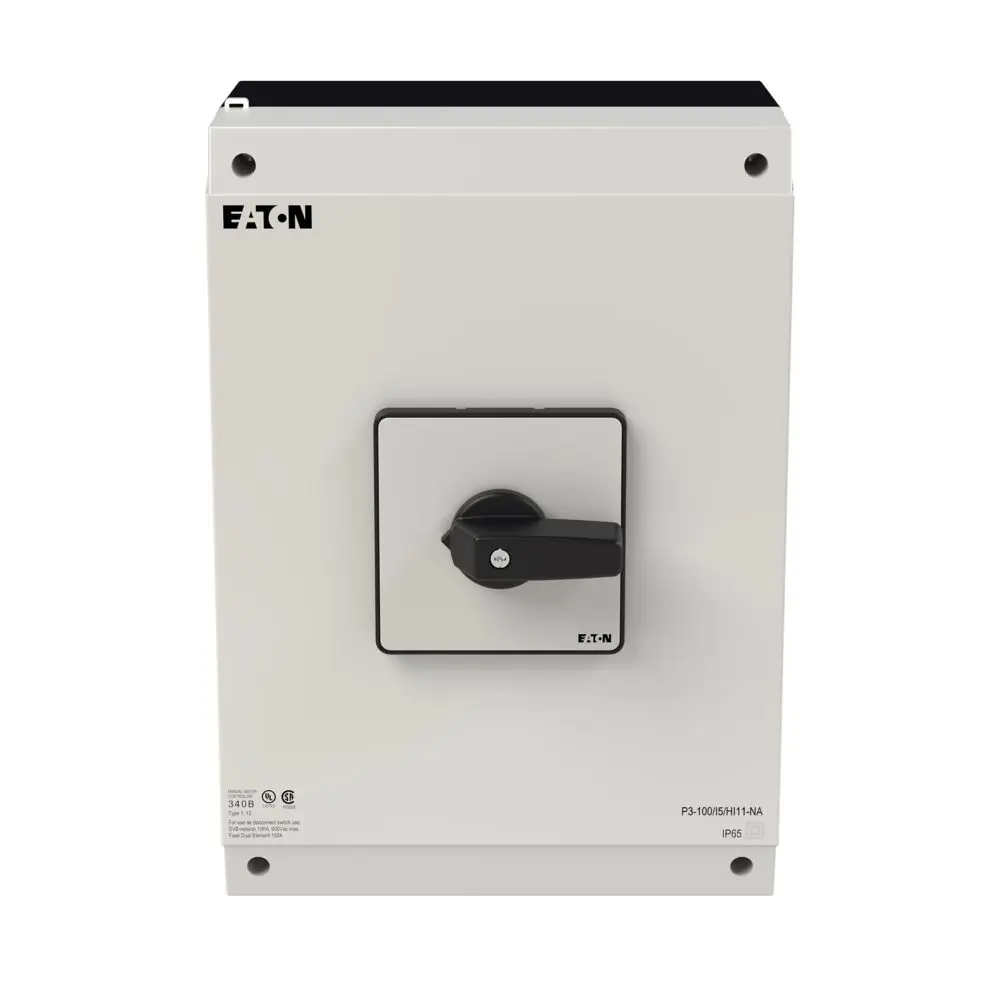

100A, 3P, on-off switch, black thumb grip with front plate; surface mount; 1NO/1NC, UL/CSA/IEC/CE
Eaton Moeller® series P3 On-Off switch P3-100/I5/HI11-NA is a 100 A, 3-pole, surface-mounted switch-disconnector with a black short thumb-grip actuator and front plate. It is suitable for branch circuits and motor disconnect applications (UL/CSA) and provides IP65 (front) and NEMA 12 protection. Rated up to 690 V AC, the device supports 100 A continuous current and offers robust short-circuit withstand capability up to 80 kA. The switch includes 1 NO + 1 NC auxiliary contacts, supports AC-3 and AC-23A duty ratings, and is fully certified to UL, CSA, IEC, CE, and VDE standards.
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller® |
|---|---|
| Series | P3 |
| Catalog Number | 237543 |
| Model | P3-100/I5/HI11-NA |
| Product Type | On-off switch (switch-disconnector) |
| Amperage | 100 A |
| Poles | 3 |
| Auxiliary Contacts | 1 NO + 1 NC |
| Operator | Black short thumb-grip with front plate |
| Mounting Method | Surface mounting |
| Mounting Position | As required |
| Degree of Protection (Front) | IP65 |
| NEMA Rating | 12 |
| Mechanical Life | 100,000 operations |
| Operating Frequency | 1200 operations per hour |
| Safe Isolation | 440 V AC (EN 61140) |
| Shock Resistance | 15 g (IEC/EN 60068-2-27) |
| Operating Temperature Range | −25 °C to +40 °C |
| Dimensions (L × W × H) | 162 mm × 200 mm × 280 mm |
| Weight | 1.5 kg |
| Suitable For | Branch circuits; motor disconnect (UL/CSA) |
| Rated Operational Voltage (AC, max) | 690 V |
|---|---|
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Uninterrupted Current (Iu) | 100 A |
| AC-21 (440 V) | Ie = 100 A |
| AC-23A (230 V) | Ie = 100 A |
| AC-23A (400/415 V) | Ie = 100 A |
| AC-23A (500 V) | Ie = 96 A |
| AC-23A (690 V) | Ie = 68 A |
| AC-3 (230/240 V) | Ie = 71 A |
| AC-3 (400/415 V) | Ie = 71 A |
| AC-3 (500 V) | Ie = 65 A |
| AC-3 (690 V) | Ie = 23.8 A |
| Rated Making Capacity (≤ 690 V) | 950 A |
| Rated Breaking Capacity (230 V) | 760 A |
| Rated Breaking Capacity (400/415 V) | 740 A |
| Rated Breaking Capacity (500 V) | 880 A |
| Rated Breaking Capacity (690 V) | 520 A |
| Short-Circuit Ratings | Conditional 80 kA (supply side); 4 kA (load side); Basic SCCR 10 kA (150 A max fuse); ICW 2 kA (1 s) |
| Motor Ratings (60 Hz) | 5 HP @ 120 V 1φ; 10 HP @ 208 V 1φ; 20 HP @ 208 V 3φ; 15 HP @ 240 V 1φ; 25 HP @ 240 V 3φ; 60 HP @ 480 V 3φ; 75 HP @ 600 V 3φ |
| Terminal Capacity | 1×(1.5–25) mm² flex with ferrule; 1×(2.5–35) mm² solid/stranded; 2×(1.5–6) mm² flex; 2×(2.5–10) mm² solid/stranded; 14–2 AWG |
| Terminal Hardware | M5 screw terminals; 3 Nm (26.5 lb-in) |
| Environmental | −25 … +40 °C; Overvoltage Category III; Pollution Degree 3; damp heat per IEC 60068-2-78/-2-30 |
| Ingress Protection / Enclosure | IP65 (front), NEMA 12 |
| Certifications | UL (E36332, NLRV, UL 60947-4-1); CSA (C22.2 No. 94, No. 60947-4-1-14, File 012528, Class 3211-05); IEC/EN 60947-3, 60204; VDE 0660; CE |
