Eaton / Moeller Series
100 A Emergency Stop

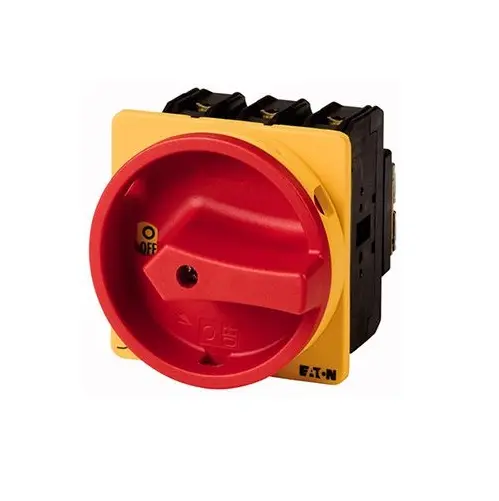

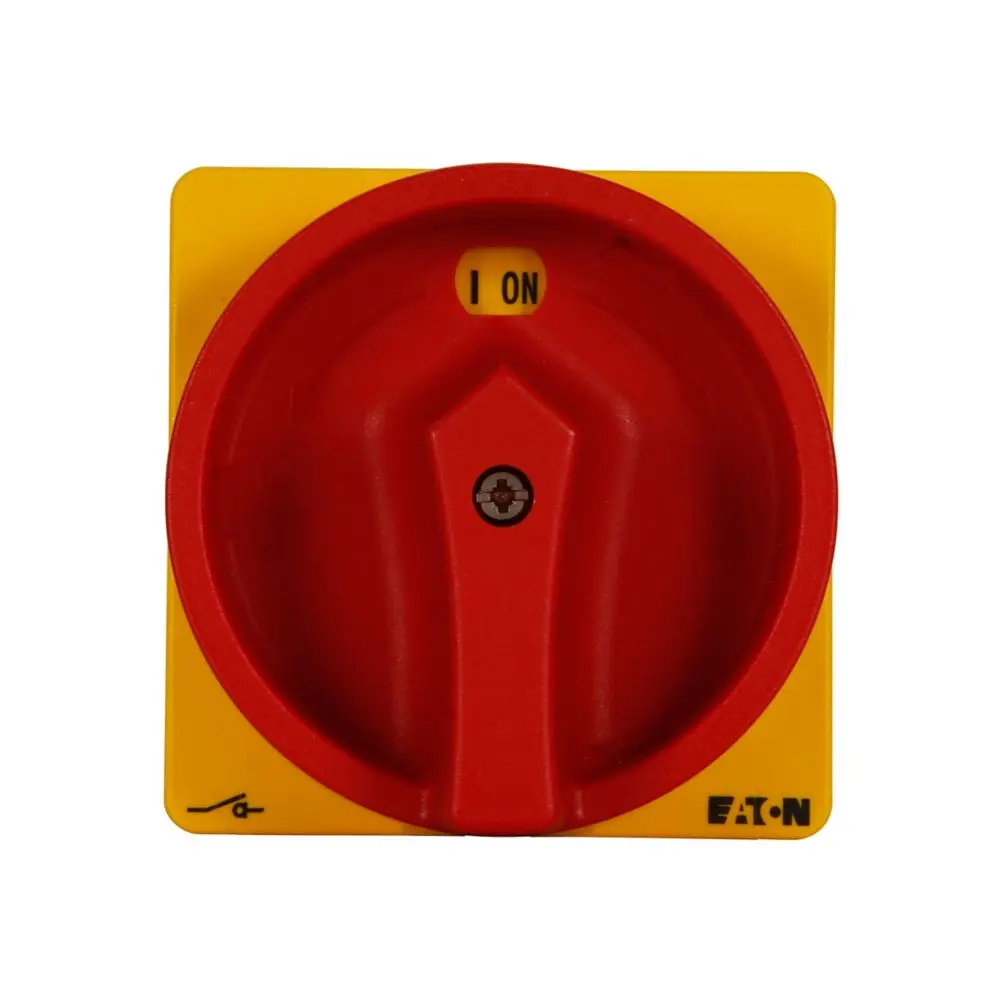

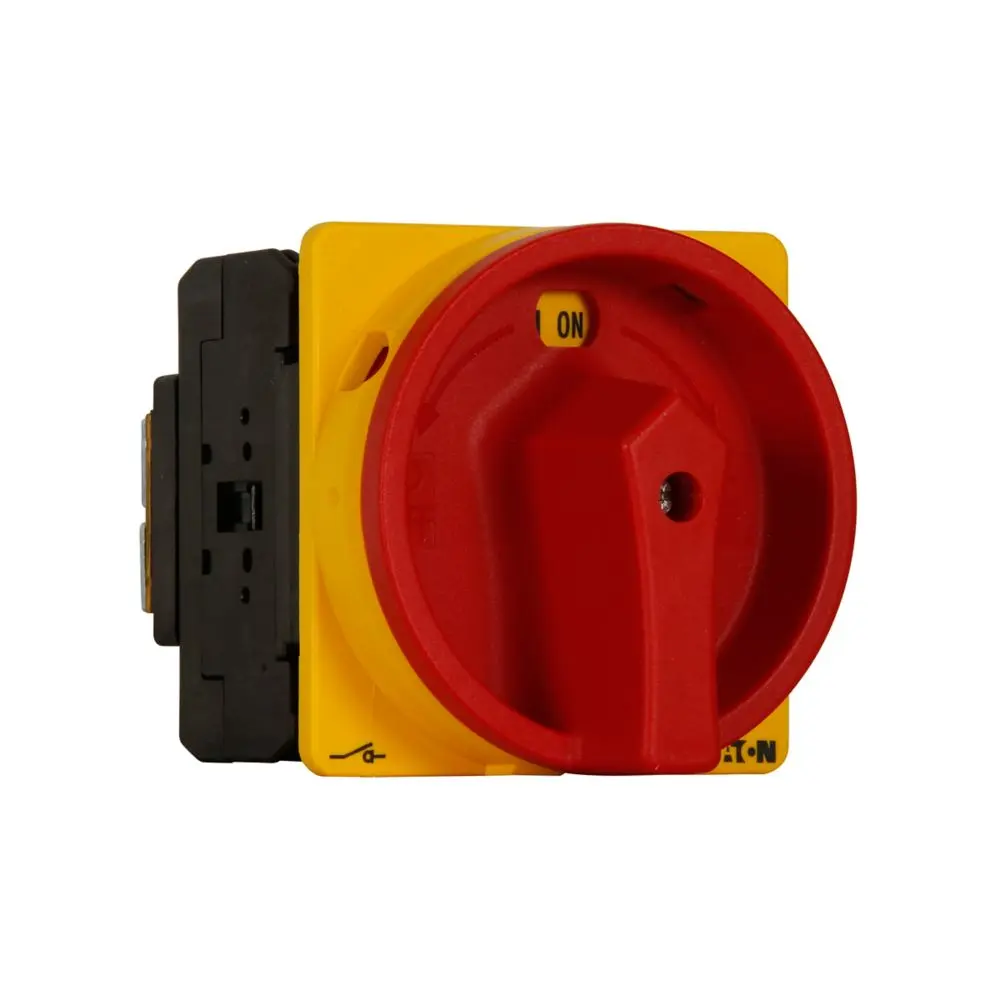

Eaton P3-100/EA/SVB Main Switch, 100 A, flush mounting, 3 pole, Emergency switching off function, with red rotary handle and yellow locking ring, lockable in the 0 (Off) position. Rated operational voltage 690 V AC, rated uninterrupted current 100 A, motor rating AC-23A 55 kW at 400 V, degree of protection IP65.
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Specification | Value |
|---|---|
| Manufacturer | Eaton |
| Model | P3-100/EA/SVB |
| Catalog Number | 074320 |
| Locking Facility | Lockable in the 0 (Off) position |
| Control Element | Red rotary handle |
| Climatic Proofing | Damp heat, constant, to IEC 60068-2-78 |
| Electrical Connection | Screw connection |
| Specification | Value |
|---|---|
| Number of Poles | 3 pole |
| Rated Operational Voltage | 690 V AC |
| Rated Uninterrupted Current | 100 A |
| Motor Rating AC-23A | 55 kW at 400 V |
| Degree of Protection | IP65 |
| Short-Circuit Rating | 4 kA |
| Mechanical Shock Resistance | 15 g |
| Operating Ambient Temperature | -25°C to +50°C |
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
