Eaton / Moeller Series
32A, 3P, main switch, STOP function, black lockable handle, IP65, UL/CSA/IEC

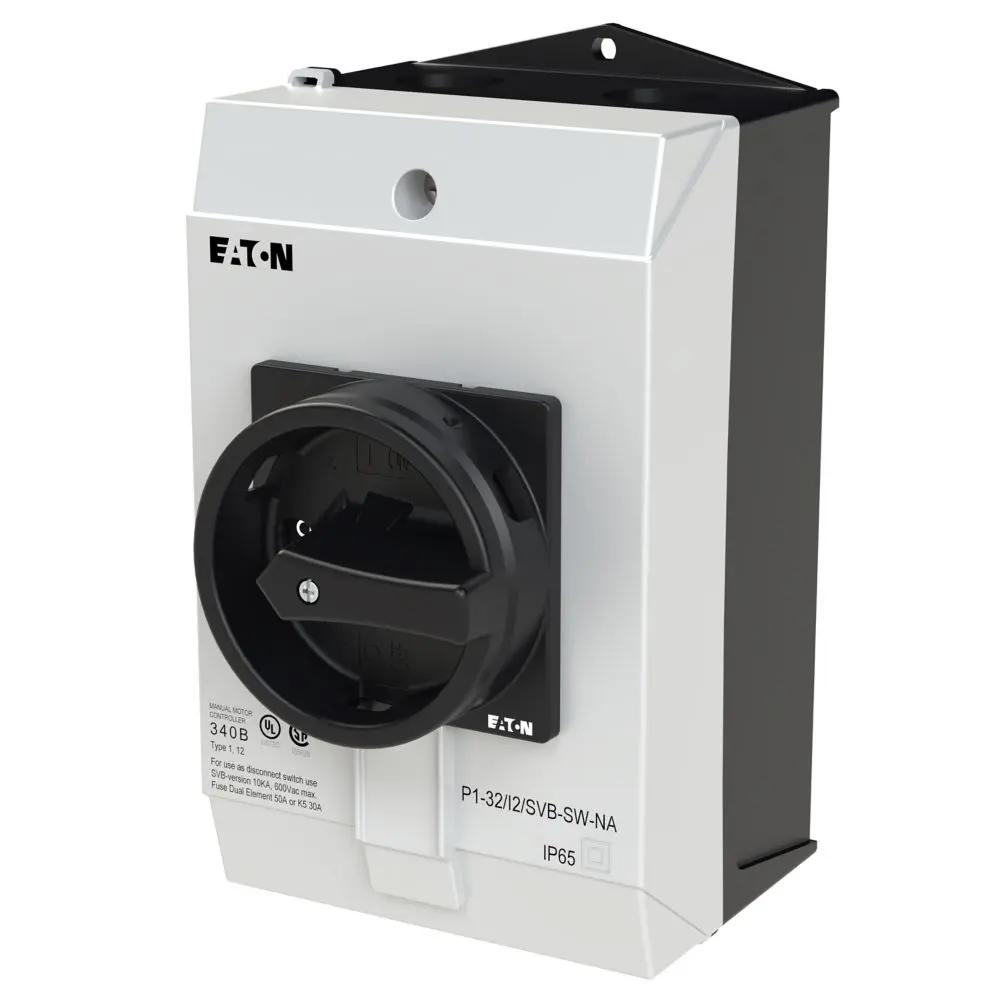

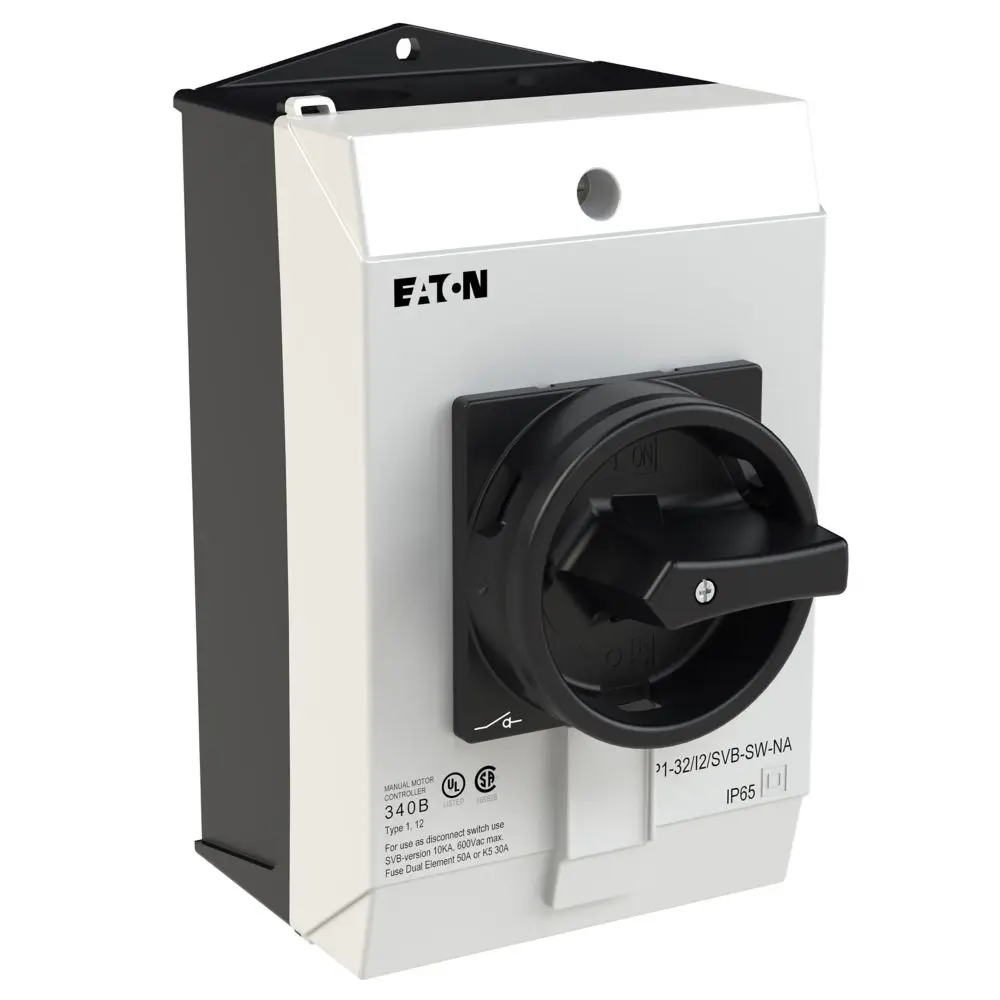

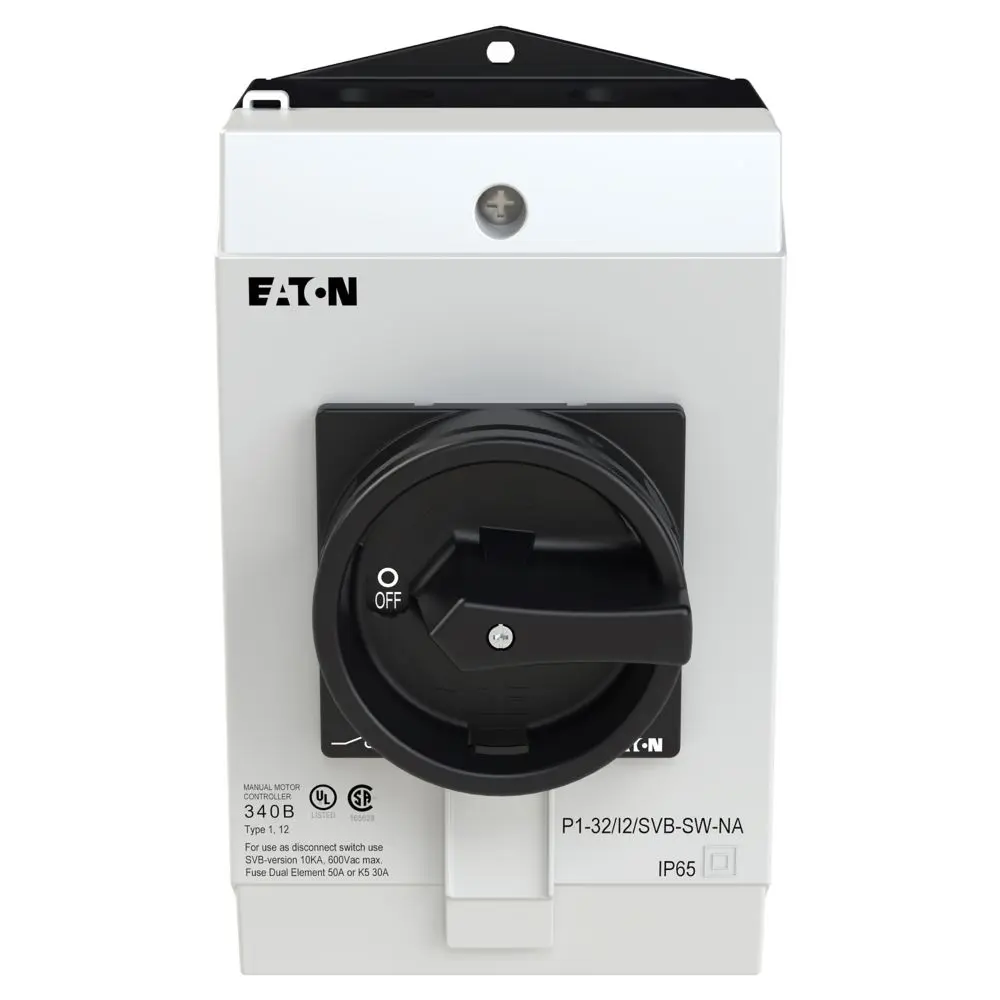

The Eaton Moeller P1-32/I2/SVB-SW-NA is a 3-pole, 32 A main switch (switch-disconnector) designed for surface mounting with a STOP function. It includes a black rotary handle with locking ring, lockable in the 0 (Off) position, and features finger-safe IP65 protection. Rated for 690 V AC operation and 6 kV impulse withstand voltage, it complies with IEC/EN 60947-3, IEC/EN 60204, VDE 0660, UL, and CSA standards. The switch supports AC-23A motor duties up to 15 kW @ 400/415 V and provides a short-circuit current rating (SCCR) of 10 kA with Class J 50 A fuses. Short-time withstand current Icw = 0.64 kA (1 s); conditional short-circuit current Iq = 80 kA. UL File E36332, CSA File 12528. Suitable for branch circuit isolation and motor disconnect applications.
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton |
|---|---|
| Model | P1-32/I2/SVB-SW-NA |
| Catalog No. | 255892 |
| Product Type | Main switch (switch-disconnector) |
| Function | STOP function |
| Design | Surface mounting |
| Operator | Black rotary handle with locking ring |
| Locking Facility | Lockable in 0 (Off) position (≤ 3 padlocks) |
| Poles | 3 |
| Degree of Protection | IP65 (front) / NEMA Type 1, 12 |
| Mounting Position | As required |
| Rated Operational Voltage (Ue) | 690 V AC |
|---|---|
| Rated Uninterrupted Current (Iu) | 32 A |
| Impulse Withstand Voltage (Uimp) | 6 kV |
| Overvoltage Category / Pollution Degree | III / 3 |
| AC-23A Motor Rating (50–60 Hz) | 7.5 kW @ 230 V · 15 kW @ 400/415 V · 18.5 kW @ 500 V · 15 kW @ 690 V |
| Rated Short-Time Withstand Current (Icw, 1 s) | 0.64 kA (640 A) |
| Conditional Short-Circuit Current (Iq) | 80 kA |
| SCCR (North America) | 10 kA with Class J 50 A fuse |
| Fuse (IEC) | gG/gL 50 A |
| Mechanical Endurance | 300 000 operations |
| Wiring (metric) | 1× 1.5–6 mm² or 2× 1.5–6 mm² (solid/stranded); 1× 1–4 mm² or 2× 1–4 mm² (ferruled) |
| Wiring (AWG) | 14 – 8 AWG |
| Terminal Screw / Torque | M4 / 1.6 Nm (14.1 lb-in) |
| Ambient Temperature (enclosed) | −25 °C to +40 °C |
| Standards / Certifications | IEC/EN 60947-3, IEC/EN 60204, VDE 0660, UL 60947-4-1, CSA C22.2 No. 60947-4-1-14, CE marked |
| UL File No. | E36332 (NLRV) |
| CSA File No. | 12528 (Class 3211-05) |
| Application | Suitable for branch circuits and motor disconnects |
