Eaton / Moeller Series
32A, 3P, on-off switch, red thumb grip with yellow front plate; surface mounting; emergency switching off; UL/CSA/IEC/VDE

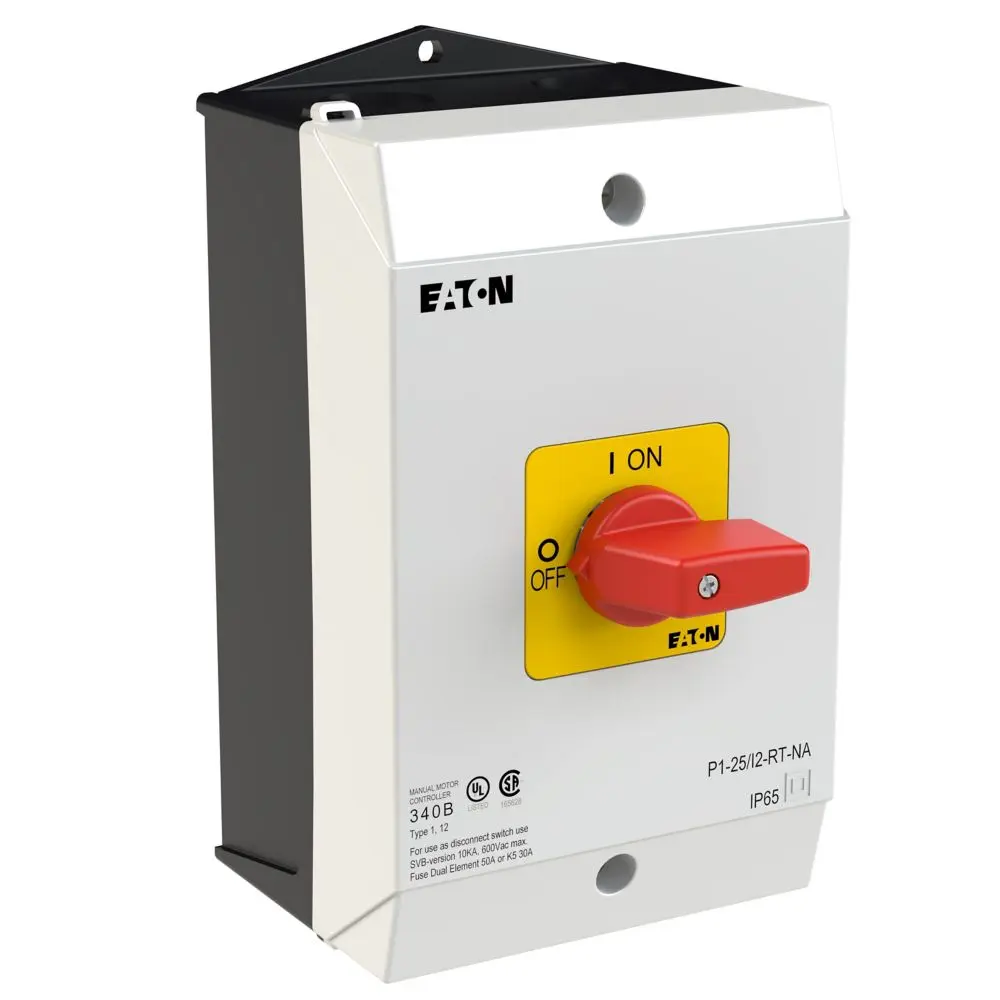

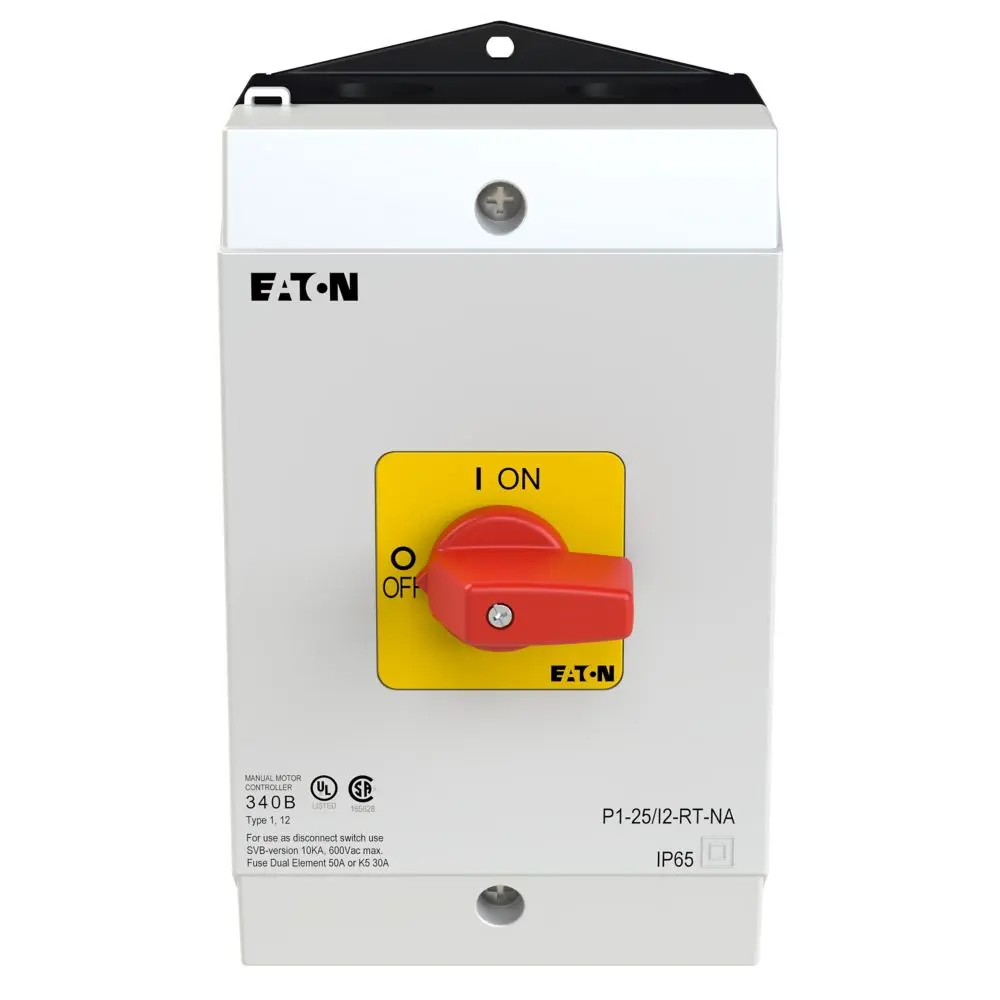

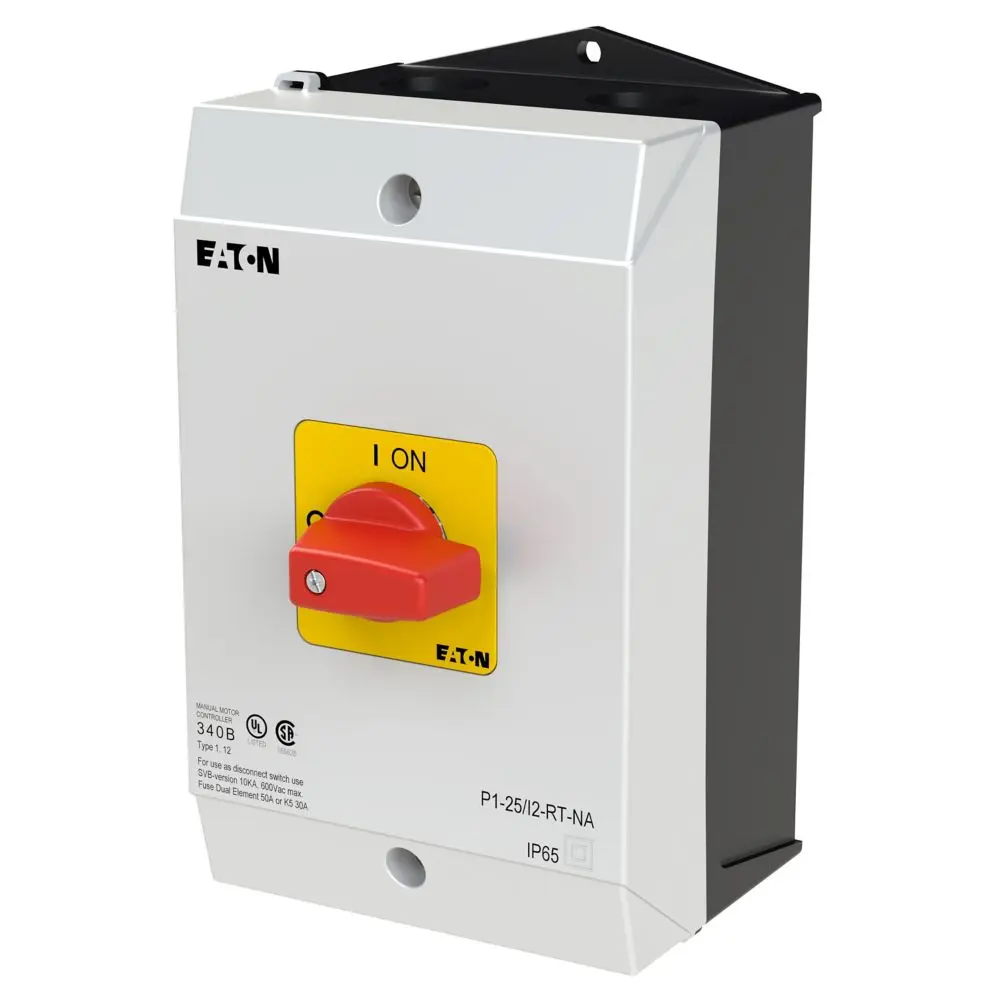

Eaton Moeller® series P1 On-Off switch P1-32/I2-RT-NA is a 32 A, 3-pole, surface-mounted switch-disconnector with a red thumb-grip actuator and yellow front plate for emergency switching off applications. Designed for industrial control and motor disconnect duties, it provides IP65 front protection and NEMA 12 rating. The unit offers AC-3 and AC-23A switching capability up to 15 kW at 400 V AC, and a rated uninterrupted current of 32 A. Built for safety and durability, it withstands short-circuit currents up to 80 kA (conditional) and meets UL, CSA, IEC/EN 60947-3, and VDE 0660 standards. Ideal for use in branch circuits and motor isolation systems where visible disconnection is required.
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller® |
|---|---|
| Series | P1 |
| Catalog Number | 255893 |
| Model | P1-32/I2-RT-NA |
| Product Type | On-off switch (emergency switching off function) |
| Amperage | 32 A |
| Poles | 3 |
| Auxiliary Contacts | None (user addable) |
| Operator | Red short thumb-grip with yellow front plate |
| Mounting Method | Surface mounting |
| Degree of Protection (Front) | IP65 |
| NEMA Rating | 12 |
| Mechanical Life | 300,000 operations |
| Operating Frequency | 1200 operations per hour |
| Safe Isolation | 440 V AC (EN 61140) |
| Shock Resistance | 15 g (IEC/EN 60068-2-27) |
| Operating Temperature Range | −25 °C to +40 °C (enclosed) |
| Climatic Proofing | Damp heat constant/cyclic (IEC 60068-2-78 / -2-30) |
| Housing Material | Plastic, gray |
| Dimensions (L × W × H) | 107 mm × 100 mm × 180 mm |
| Weight | 0.422 kg |
| Suitable For | Branch circuits; motor disconnect (UL/CSA); ground mounting |
| Rated Operational Voltage (AC, max) | 690 V |
|---|---|
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Uninterrupted Current (Iu) | 32 A |
| AC-21 (400 V) | Ie = 32 A |
| AC-23A (230 V) | Ie = 32 A / 7.5 kW |
| AC-23A (400 / 415 V) | Ie = 32 A / 15 kW |
| AC-23A (500 V) | Ie = 30 A / 18.5 kW |
| AC-23A (690 V) | Ie = 19.8 A / 15 kW |
| AC-3 (230 – 240 V) | Ie = 26.4 A / 7.5 kW |
| AC-3 (400 / 415 V) | Ie = 26.4 A / 13 kW |
| AC-3 (500 V) | Ie = 23.4 A / 18.5 kW |
| AC-3 (690 V) | Ie = 14.7 A / 15 kW |
| DC-23A (24 – 48 V) | Ie = 25 A (1–2 contacts in series) |
| DC-23A (120 V) | Ie = 12 A (3 contacts in series) |
| Rated Making Capacity (≤ 690 V) | 320 A |
| Rated Breaking Capacity (230 V) | 260 A |
| Rated Breaking Capacity (400 / 415 V) | 300 A |
| Rated Breaking Capacity (500 V) | 290 A |
| Rated Breaking Capacity (690 V) | 250 A |
| Short-Circuit Ratings | Conditional 80 kA (supply side); Basic SCCR 5 kA (110 A fuse); High-fault 10 kA (50 A Class J fuse); Icw = 0.64 kA (1 s) |
| Motor Ratings (UL) | 1 HP @ 120 V 1φ; 2 HP @ 200 V 1φ; 3 HP @ 240 V 1φ; 3 HP @ 200 V 3φ; 7.5 HP @ 240 V 3φ; 10 HP @ 480 V 3φ; 15 HP @ 600 V 3φ |
| Terminal Capacity (mm²) | 1×(1.5 – 6) / 2×(1.5 – 6) solid or stranded; 1×(1 – 4) / 2×(1 – 4) flex with ferrules |
| Terminal Capacity (AWG) | 14 – 8 AWG |
| Terminal Hardware | M4 screw terminals; 1.6 Nm (14.1 lb-in) |
| Environmental | −25 … +40 °C; Overvoltage Category III; Pollution Degree 3 |
| Ingress Protection / Enclosure | IP65 (front), NEMA 12 |
| Certifications | UL 60947-4-1 (E36332, NLRV); CSA (C22.2 No. 60947-4-1-14, File 012528); IEC/EN 60947-3; IEC/EN 60204; VDE 0660; CE |
