Eaton / Moeller Series
32A, 3P, on-off switch, black knob, surface mounting, IP65, UL/CSA/IEC

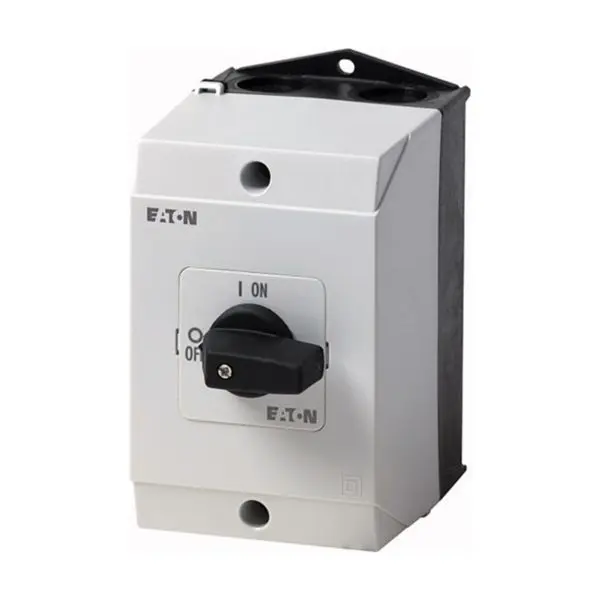

The Eaton Moeller® series P1-32/I2-NA is a 3-pole, 32 A on-off switch (switch-disconnector) designed for surface mounting. It features a black knob with front plate and provides IP65 protection on the front. Rated for 690 V AC operation and a 6 kV impulse withstand voltage, the switch complies with IEC/EN 60947-3, IEC/EN 60204, UL, CSA, and VDE 0660 standards. It supports AC-23A motor duties up to 15 kW at 400/415 V and can be fitted with optional auxiliary switch contacts or a neutral conductor. Compact and durable, this device provides reliable isolation and safe operation for industrial control and motor disconnect applications.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller® series |
|---|---|
| Model | P1-32/I2-NA |
| Catalog No. | 255889 |
| Product Type | On-Off switch (switch-disconnector) |
| Product Range | ON-OFF switches |
| Type Reference | P1 |
| Design | Surface mounting |
| Operator | Black knob with front plate |
| Poles | 3 |
| Locking Facility | Lockable in 0 (Off) position |
| Auxiliary / Neutral Option | Auxiliary contact or neutral conductor retrofittable |
| Degree of Protection | IP65 (front) |
| Mounting Position | As required |
| Rated Operational Voltage (Ue) | 690 V AC |
|---|---|
| Rated Uninterrupted Current (Iu) | 32 A |
| Rated Operational Power (AC-23A, 400/415 V) | 15 kW |
| Impulse Withstand Voltage (Uimp) | 6 kV |
| Overvoltage Category / Pollution Degree | III / 3 |
| AC-23A Motor Rating (50–60 Hz) | 7.5 kW @ 230 V · 15 kW @ 400/415 V · 18.5 kW @ 500 V · 15 kW @ 690 V |
| Rated Short-Time Withstand Current (Icw, 1 s) | 0.64 kA (640 A) |
| Conditional Short-Circuit Current (Iq) | 80 kA |
| SCCR (North America) | 10 kA with Class J 50 A fuse |
| Fuse (IEC) | gG/gL 50 A |
| Breaking Capacity (400/415 V) | 300 A (cos φ 0.65) |
| Safe Isolation to EN 61140 | 440 V AC between contacts |
| Mechanical Endurance | 300,000 operations |
| Wiring (metric) | 1× 1.5–6 mm² or 2× 1.5–6 mm² (solid/stranded); 1× 1–4 mm² or 2× 1–4 mm² (ferruled) |
| Wiring (AWG) | 14 – 8 AWG |
| Terminal Screw / Torque | M4 / 1.6 Nm (14.1 lb-in) |
| Ambient Temperature (Operation) | −25 °C to +40 °C |
| Shock Resistance | 15 g (IEC/EN 60068-2-27) |
| Housing Material | Thermoplastic (industrial grade) |
| Standards / Certifications | IEC/EN 60947-3, IEC/EN 60204, VDE 0660, UL 60947-4-1, CSA C22.2 No. 60947-4-1-14, CE marked |
| UL File No. | E36332 (NLRV) |
| CSA File No. | 12528 (Class 3211-05) |
| Application | Suitable for main switch or motor isolator use in control panels and machinery |
