Eaton / Moeller Series
32A, 3P, main switch, STOP function, black lockable handle, UL/CSA/IEC

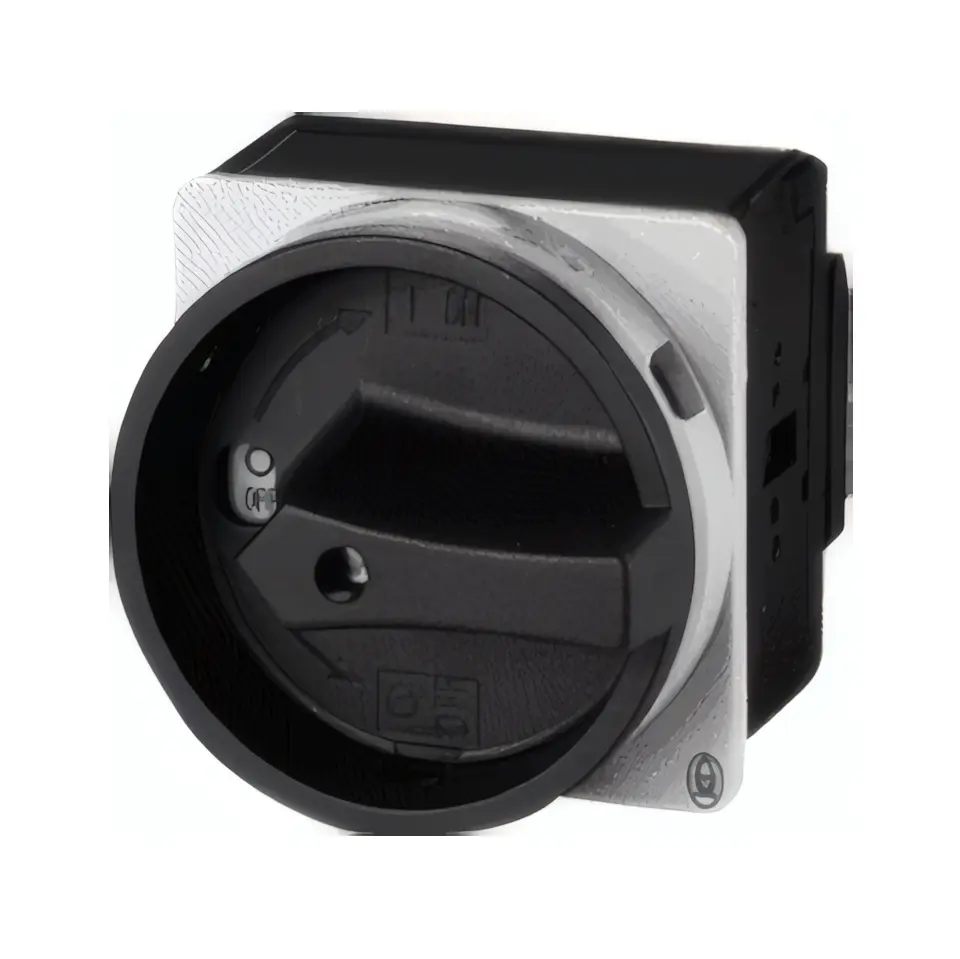

The Eaton Moeller series P1-32/EA/SVB-SW is a 3-pole, 32 A main switch (switch-disconnector) designed for flush mounting. It provides a STOP function and includes a black rotary handle with locking ring, lockable in the 0 (Off) position. Rated for 690 V AC with an impulse withstand voltage of 6 kV, this model complies with IEC/EN 60947-3, VDE 0660, IEC/EN 60204, UL, and CSA standards. It provides front-side IP65 and NEMA 1 protection and supports AC-23A motor duties up to 15 kW @ 400/415 V. Short-circuit ratings include Icw = 0.64 kA (1 s) and Iq = 80 kA. UL/CSA SCCR rated at 10 kA with Class J 50 A fuse. It offers high mechanical endurance of 300,000 operations, screw-type terminals (M4, 1.6 Nm), and supports wire sizes up to 6 mm² (AWG 14–8). Operating temperature range: −25 °C to +40 °C (enclosed). Suitable for branch circuits and as a motor disconnect.
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller® series |
|---|---|
| Model | P1-32/EA/SVB-SW |
| Catalog No. | 053111 |
| Product Type | Main switch (switch-disconnector) |
| Function | STOP function |
| Design | Flush mounting |
| Operator | Black rotary handle with locking ring |
| Locking Facility | Lockable in 0 (Off) position |
| Poles | 3 |
| Degree of Protection | IP65 (front) / NEMA 1 |
| Mounting Position | As required |
| Rated Operational Voltage (Ue) | 690 V AC |
|---|---|
| Rated Uninterrupted Current (Iu) | 32 A |
| Impulse Withstand Voltage (Uimp) | 6 kV |
| Overvoltage Category / Pollution Degree | III / 3 |
| AC-23A Motor Rating (50–60 Hz) | 7.5 kW @ 230 V · 15 kW @ 400/415 V · 18.5 kW @ 500 V · 15 kW @ 690 V |
| Rated Short-Time Withstand Current (Icw, 1 s) | 0.64 kA (640 A) |
| Conditional Short-Circuit Current (Iq) | 80 kA |
| SCCR (North America) | 5 kA (basic) / 10 kA with Class J 50 A fuse |
| Fuse (IEC) | gG/gL 50 A |
| Mechanical Endurance | 300,000 operations |
| Wiring (metric) | 1× 1–4 mm² or 2× 1–4 mm² (ferruled); 1× 1.5–6 mm² or 2× 1.5–6 mm² (solid/stranded) |
| Wiring (AWG) | 14 – 8 AWG |
| Terminal Screw / Torque | M4 / 1.6 Nm (14.1 lb-in) |
| Ambient Temperature (enclosed) | −25 °C to +40 °C |
| Standards / Certifications | IEC/EN 60947-3, IEC/EN 60204, VDE 0660, UL 60947-4-1, CSA C22.2 No. 60947-4-1-14, CE marked |
| UL File No. | E36332 (NLRV) |
| CSA File No. | 12528 (Class 3211-05) |
| Application | Suitable for branch circuits and motor disconnects |
