Eaton / Moeller Series

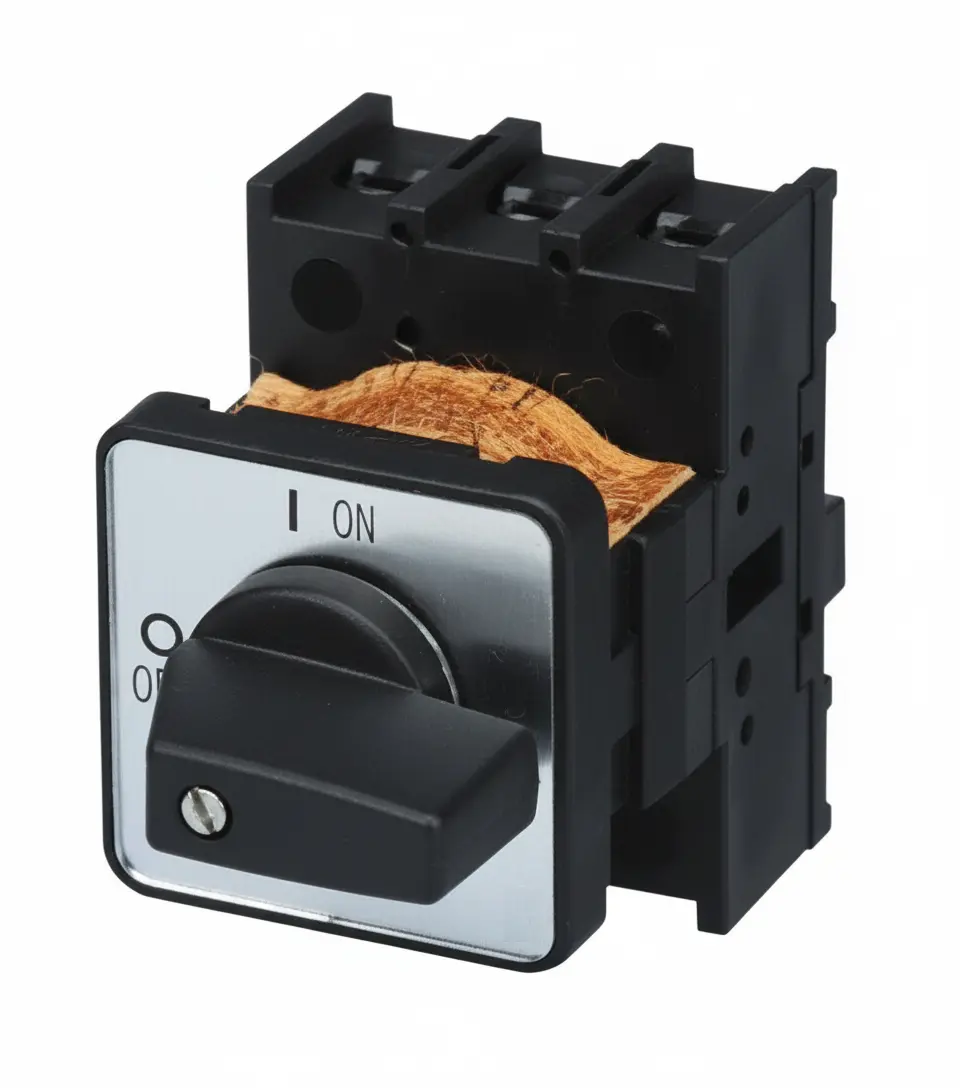

25A, 3P, on-off switch, black thumb grip with front plate; rear mounting; no auxiliaries, UL/CSA/IEC/VDE
Eaton Moeller® series P1 On-Off switch P1-25/Z is a 25 A, 3-pole, rear-mounted switch-disconnector featuring a black short thumb-grip actuator with front plate. It offers IP65 front protection and NEMA 12 rating, suitable for enclosed panel installations. The unit has no auxiliary contacts and provides safe isolation per EN 61140. Rated for 690 V AC operation, it supports AC-3 and AC-23A motor switching duties with short-circuit protection up to 50 kA. Designed for reliable industrial applications, it meets IEC/EN 60947-3, UL, CSA, and VDE standards.
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller® |
|---|---|
| Series | P1 |
| Catalog Number | 057708 |
| Model | P1-25/Z |
| Product Type | On-off switch (switch-disconnector) |
| Amperage | 25 A |
| Poles | 3 |
| Auxiliary Contacts | None |
| Operator | Black short thumb-grip with front plate |
| Mounting Method | Rear mounting |
| Mounting Position | As required |
| Degree of Protection (Front) | IP65 |
| NEMA Rating | 12 |
| Mechanical Life | 300,000 operations |
| Operating Frequency | 1200 operations per hour |
| Safe Isolation | 440 V AC (EN 61140) |
| Shock Resistance | 15 g (IEC/EN 60068-2-27) |
| Operating Temperature Range | −25 °C to +50 °C (open); −25 °C to +40 °C (enclosed) |
| Climatic Proofing | Damp heat (IEC 60068-2-78, -2-30) |
| Dimensions (L × W × H) | Not specified |
| Weight | Not specified |
| Suitable For | Rear-mount applications; general industrial use |
| Rated Operational Voltage (AC, max) | 690 V |
|---|---|
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Uninterrupted Current (Iu) | 25 A |
| AC-21 (440 V) | Ie = 25 A |
| AC-23A (230 V) | Ie = 25 A |
| AC-23A (400/415 V) | Ie = 25 A |
| AC-23A (500 V) | Ie = 17.4 A |
| AC-23A (690 V) | Ie = 12.6 A |
| AC-3 (230 V) | Ie = 19.6 A |
| AC-3 (400/415 V) | Ie = 15.2 A |
| AC-3 (500 V) | Ie = 12.1 A |
| AC-3 (690 V) | Ie = 8.8 A |
| DC-1 (Load-break, L/R=1 ms) | Ie = 25 A, 60 V per contact pair |
| DC-23A (24–48 V) | Ie = 25 A (1–2 contacts in series) |
| DC-23A (120 V) | Ie = 12 A (3 contacts in series) |
| Rated Making Capacity (≤ 690 V) | 240 A |
| Rated Breaking Capacity (230 V) | 190 A |
| Rated Breaking Capacity (400/415 V) | 150 A |
| Rated Breaking Capacity (500 V) | 170 A |
| Rated Breaking Capacity (690 V) | 150 A |
| Short-Circuit Ratings | Conditional 50 kA; Basic SCCR 5 kA (110 A fuse); High-fault 10 kA (50 A Class J fuse); Icw 0.64 kA (1 s) |
| Motor Ratings (50–60 Hz) | 5.5 kW @ 230 V; 7.5 kW @ 400/415 V; 7.5 kW @ 500–690 V |
| Terminal Capacity | 1×(1.5–6) mm² solid/stranded; 1×(1–4) mm² flex w/ ferrule; 2×(1.5–6) mm² solid/stranded; 2×(1–4) mm² flex w/ ferrule; 14–8 AWG |
| Terminal Hardware | M4 screw terminals; 1.6 Nm (14.1 lb-in) |
| Environmental | −25 … +50 °C; Overvoltage Category III; Pollution Degree 3 |
| Ingress Protection / Enclosure | IP65 (front), NEMA 12 |
| Certifications | UL, CSA, IEC/EN 60947-3, IEC/EN 60204, VDE 0660 |
