Eaton / Moeller Series

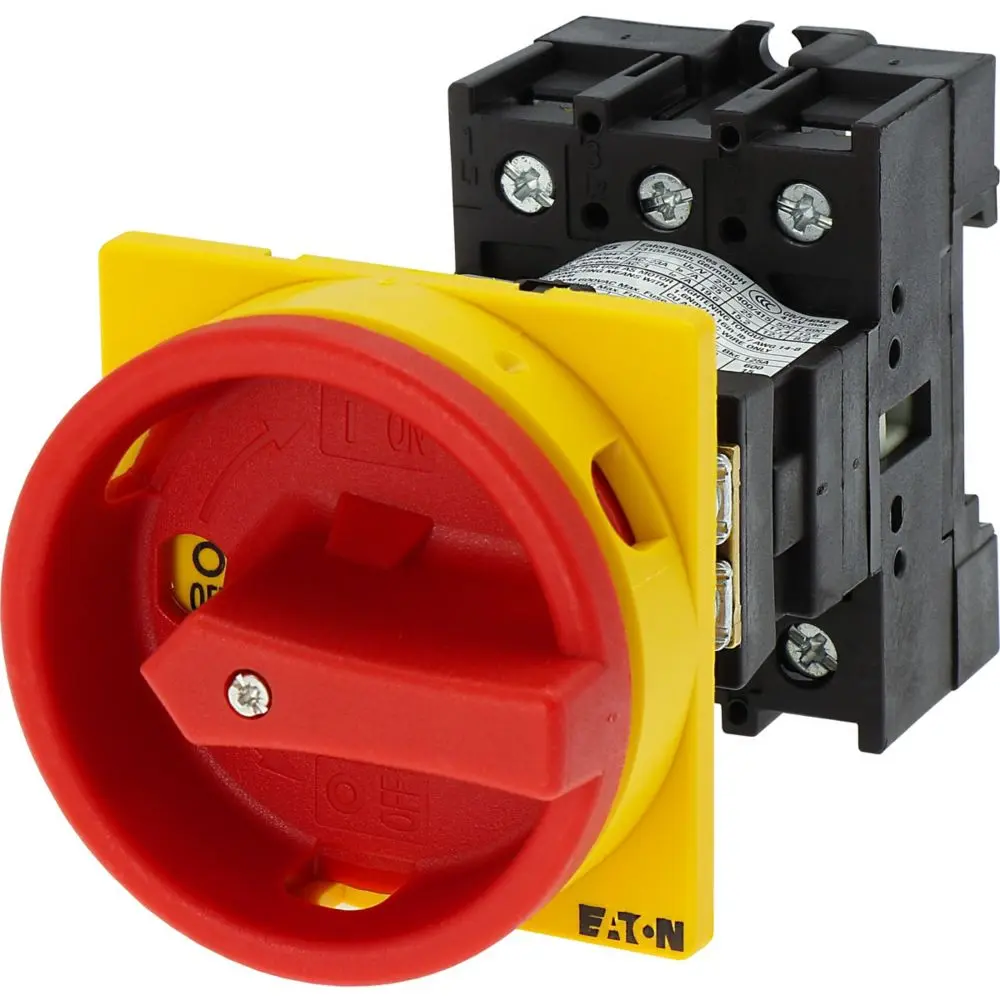

25A, 3P, main/emergency disconnect switch, rear mounting, red rotary handle with yellow locking ring, CE/UL/CSA/IEC
The Eaton Moeller P1-25/V/SVB is a 25 A, 3-pole main and emergency disconnect switch designed for rear mounting. Featuring a red rotary handle with a yellow locking ring, it provides clear visual indication and can be locked in the OFF (0) position for safety. Engineered for reliable isolation and emergency switching, the switch supports rated operational voltages up to 690 V AC and current up to 25 A. It delivers robust performance with a mechanical lifespan of 300,000 operations and IP65/NEMA 12 front protection. Certified to CE, UL, CSA, VDE, and IEC/EN 60947 standards, the P1-25/V/SVB is ideal for motor disconnect and branch circuit applications in industrial environments.
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller |
|---|---|
| Series | P1 |
| Model Code | P1-25/V/SVB |
| Catalog Number | 055335 |
| Product Type | Main / Emergency Disconnect Switch |
| Mounting Method | Rear Mounting |
| Number of Poles | 3 |
| Amperage | 25 A |
| Actuator Type | Door-coupling rotary handle |
| Actuator Color | Red with yellow locking ring |
| Locking Feature | Lockable in 0 (OFF) position |
| Degree of Protection (Front) | IP65 / NEMA 12 |
| Mechanical Lifespan | 300,000 operations |
| Operating Frequency | 1200 operations/h |
| Ambient Temperature Range | −25 °C to +50 °C (enclosed max +40 °C) |
| Pollution Degree | 3 |
| Overvoltage Category | III |
| Housing Material | Plastic |
| Weight | 0.217 kg |
| Dimensions (H × W × D) | 65 × 65 × 131 mm |
| Rated Operational Voltage (Ue) | 690 V AC max |
|---|---|
| Rated Insulation Voltage (Ui) | 690 V AC |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Operational Current (Ie) | 25 A (AC-21 / AC-23A at 400 V) |
| Rated Operational Power (AC-23A @ 400 V) | 13 kW |
| Rated Operational Power (AC-3 @ 400 V) | 7.5 kW |
| Rated Short-Time Withstand Current (Icw) | 640 A for 1 s |
| Conditional Short-Circuit Current (Iq) | 50 kA |
| Short-Circuit Protection | 25 A gG/gL Fuse |
| Rated Breaking Capacity (400 V) | 150 A (cos φ to IEC 60947-3) |
| Rated Making Capacity (up to 690 V) | 240 A (IEC 60947-3) |
| Safe Isolation (EN 61140) | 440 V AC between contacts |
| Terminal Type | Screw connection (M4) |
| Terminal Capacity | 1 × (1–6 mm²) solid/stranded or 14–8 AWG |
| Tightening Torque | 1.6 Nm (14.1 lb-in) |
| Shock Resistance | 15 g (IEC/EN 60068-2-27) |
| Climatic Proofing | Damp heat cyclic and constant (IEC 60068-2-30/78) |
| Certifications | CE, UL E36332, CSA, VDE 0660, IEC/EN 60947-3/4-1, IEC/EN 60204 |
