Eaton / Moeller Series
25A, 3P, on-off switch, emergency stop with red thumb grip and yellow front plate, IEC/UL/CSA/VDE/CE
The Eaton Moeller® P1-25/IVS-RT is a 25A, 3-pole rotary switch designed for service distribution board mounting and equipped with an emergency switching-off function. Featuring a red thumb grip and yellow front plate, this switch ensures safe isolation and reliable performance for branch circuits and motor disconnect applications. It supports up to 690V AC operating voltage and offers rated operational power up to 13 kW at 400 V (AC-23A). Certified to UL 60947-4-1, CSA, IEC/EN 60947-3, and VDE 0660 standards, the P1-25/IVS-RT provides mechanical durability of 300,000 operations and includes screw-type terminal connections with M4 screws.
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton |
|---|---|
| Series | Moeller® Series P1 |
| Catalog Number | 013140 |
| Model Code | P1-25/IVS-RT |
| Product Type | On-Off Switch |
| Function | Emergency switching off |
| Amperage Rating | 25 A |
| Number of Poles | 3 Pole |
| Mounting Method | Service distribution board |
| Actuator Type | Short thumb-grip |
| Actuator Color | Red with yellow front plate |
| Operating Frequency | 1200 operations/hour |
| Lifespan (Mechanical) | 300,000 operations |

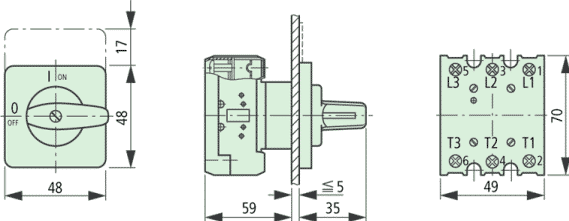

| Dimensions (L × W × H) | 91 mm × 54 mm × 70 mm |
| Weight | 0.153 kg |
| Rated Operational Voltage (Ue) | 690 V AC max |
|---|---|
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Short-Time Withstand Current (Icw) | 640 A for 1 s |
| Rated Conditional Short-Circuit Current (Iq) | 50 kA |
| Rated Operational Power (AC-23A, 400 V) | 13 kW |
| Rated Operational Current (AC-21, 400 V) | 25 A |
| Safe Isolation | 440 V AC to EN 61140 |
| Degree of Protection (Front) | IP30 / NEMA Other |
| Pollution Degree | 3 |
| Ambient Temperature Range | –25 °C to +50 °C |
| Mounting Position | As required |
| Connection Type | Screw terminal, M4 |
| Tightening Torque | 1.6 Nm (14.1 lb-in) |
| Housing Material | Plastic |
| Certifications | UL 60947-4-1, CSA C22.2 No. 60947-4-1-14, IEC/EN 60947-3, VDE 0660, CE |
