Eaton / Moeller Series
200A, 3P, breaker, thermal-magnetic trip, motor protection, IEC

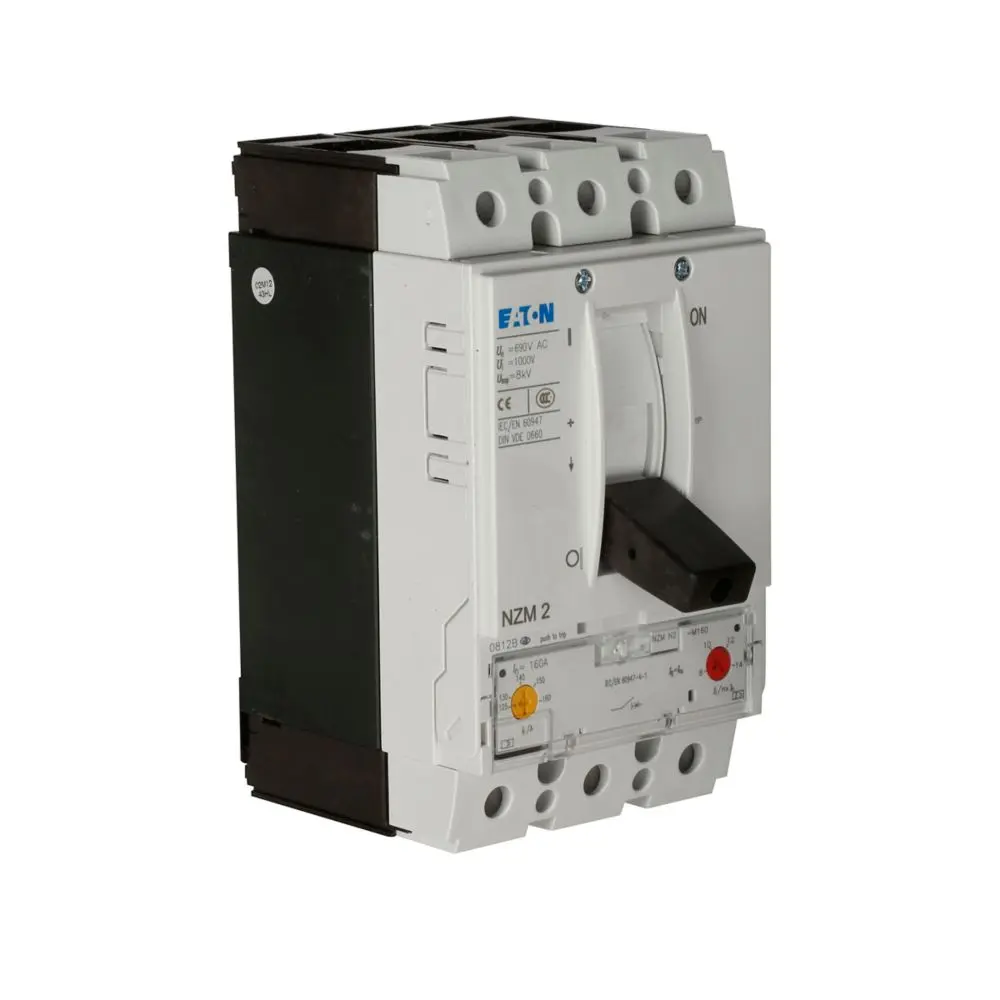

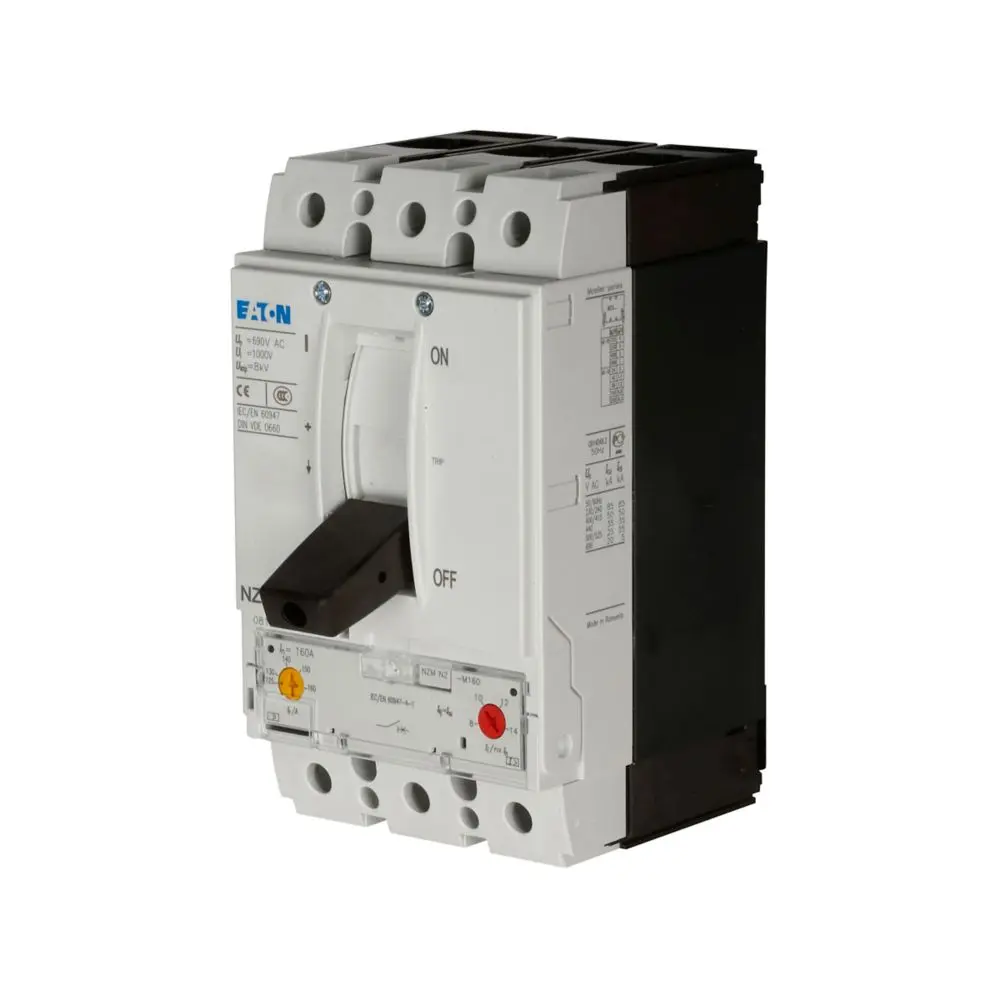

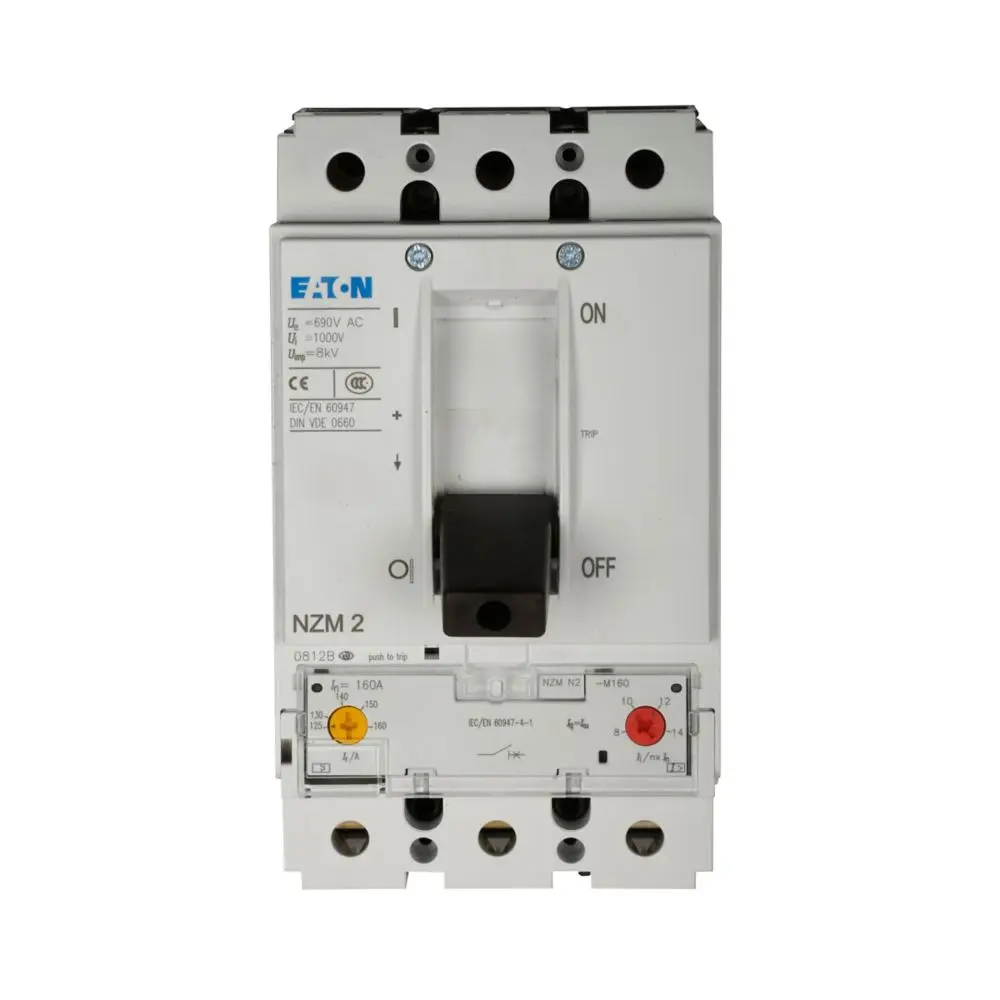

The Eaton NZMN2-M160 is a three-pole molded case circuit breaker designed for motor protection applications. It features a thermal-magnetic trip unit (T268) with a trip range of 1600–2800A (delayed) and an overload setting range of 160–200A. Rated for 200A, it supports up to 690 V AC and 750 V DC operations with a short-circuit interrupt capacity of 50 kAIC. Compatible with rocker lever or motor drive accessories, this NZM2-frame device is ideal for protecting motors up to 110 kW at 400 V and 55 kW at 230 V.
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton |
|---|---|
| Model | NZMN2-M160 |
| Series | NZM2 |
| Product Type | Motor Protection Circuit Breaker |
| Amperage | 200A |
| Poles | 3 |
| Trip Type | Thermal-Magnetic (T268) |
| Operator | Rocker Lever / Motor Drive |
| Frame Size | NZM2 |
| Voltage Rating | 690 V AC / 750 V DC |
|---|---|
| Rated Operational Current | 110 kW @ 400 V AC, 55 kW @ 230 V AC |
| Trip Rating | 1600–2800A (Delayed) |
| Overload Setting Range | 160–200A |
| Interrupting Capacity | 50 kAIC |
| Short-Circuit Breaking Capacity | 50 kAIC |
| Connection Type | Screw Terminals |
| Compliance | IEC |

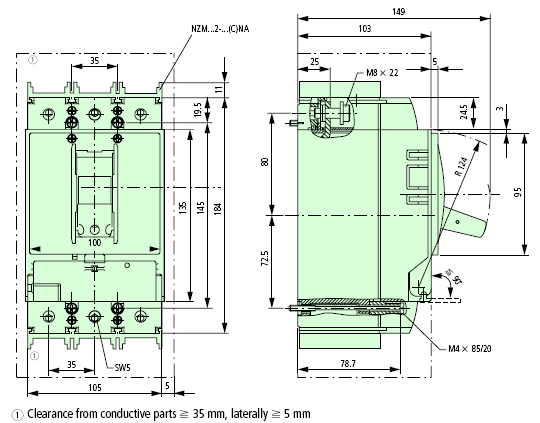

| Product Dimensions (L × W × H) | 1.378 × 1.378 × 1.378 in |
| Product Weight | 5.126 lb |
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
