Eaton / Moeller Series
100A, 4P, breaker, electronic trip, IEC

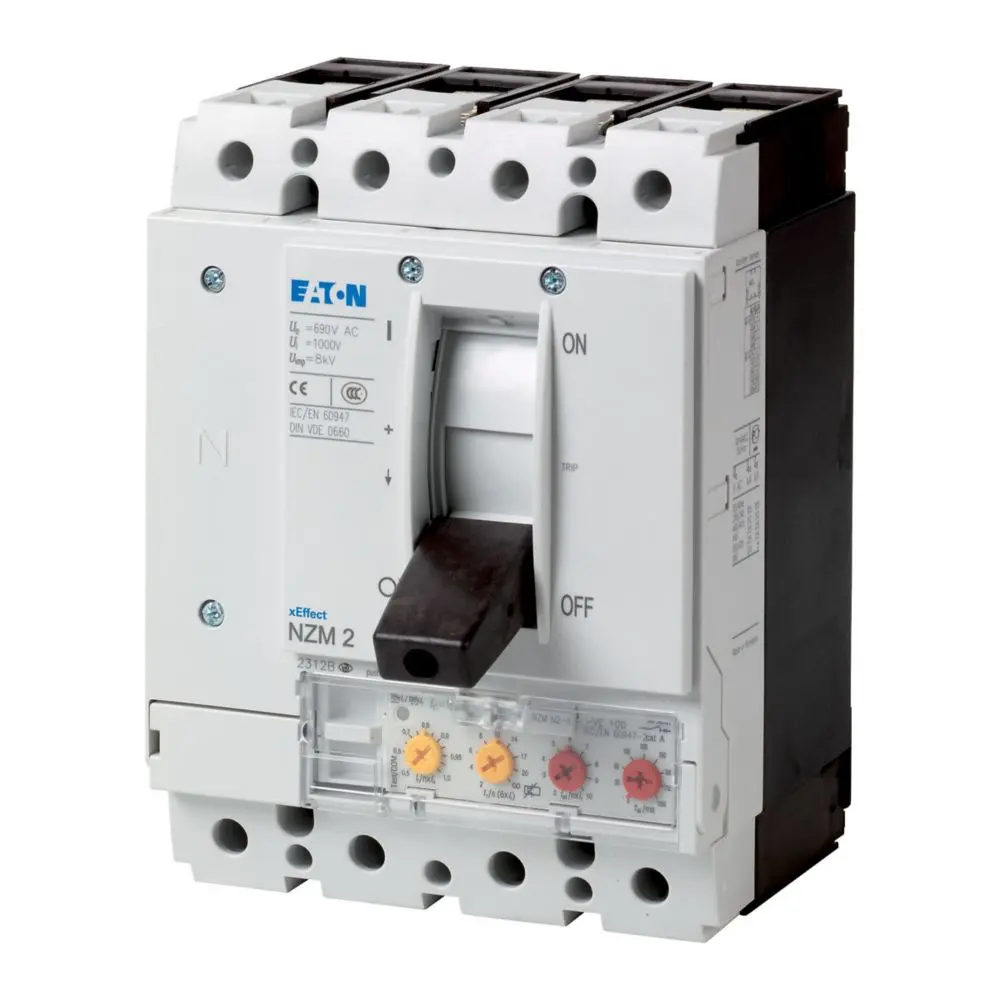

The Eaton NZMN2-4-VE100 is a 4-pole molded case circuit breaker from the Moeller NZM2 series, designed for advanced system, generator, and cable protection. It features an electronic trip unit with adjustable overload and short-circuit protection, rated for 100A operation. This breaker operates at up to 690 V AC and offers high short-circuit breaking capacities up to 85 kA at 230 V. Built with a robust NZM2 frame, it supports both fixed and DIN rail mounting, includes finger-safe screw terminals, and complies with IEC/EN 60947-2 standards.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton |
|---|---|
| Model | NZMN2-4-VE100 |
| Catalog Number | 265933 |
| Series | Moeller NZM2 |
| Product Type | Molded Case Circuit Breaker |
| Amperage | 100 A |
| Poles | Four-pole |
| Trip Type | Electronic |
| Frame | NZM2 |
| Overload Setting Range | 50–100 A |
| Connection | Screw terminal (Box/Tunnel optional) |
| Accessory | Rocker lever |
| Voltage Rating | 690 V AC |
|---|---|
| Insulation Voltage (Ui) | 1000 V AC |
| Impulse Withstand Voltage (Uimp) | 8 kV (main), 6 kV (aux) |
| Interrupting Capacity | 85 kA @ 230 V, 50 kA @ 415 V, 5 kA @ 690 V (IEC) |
| Circuit Protection Class | System, cable, selectivity, generator |
| Certifications | IEC/EN 60947-2, RoHS |
| Ingress Protection | IP20 / IP40 / IP66 (with accessories) |
| Ambient Operating Temp. | -25 °C to +70 °C |
| Storage Temp. | -40 °C to +70 °C |
| Mechanical Life | 20,000 operations |
| Electrical Life | 7,500 ops @ 690 V AC-1 |
| Heat Dissipation | 8.25 W |
| Mounting Method | Fixed / DIN rail optional |
| Weight | 3.157 kg |
| Dimensions (HxWxD) | 184 × 140 × 149 mm |
