Eaton / Moeller Series
15A, 3P, breaker, fixed thermal-magnetic, IEC/UL/CSA

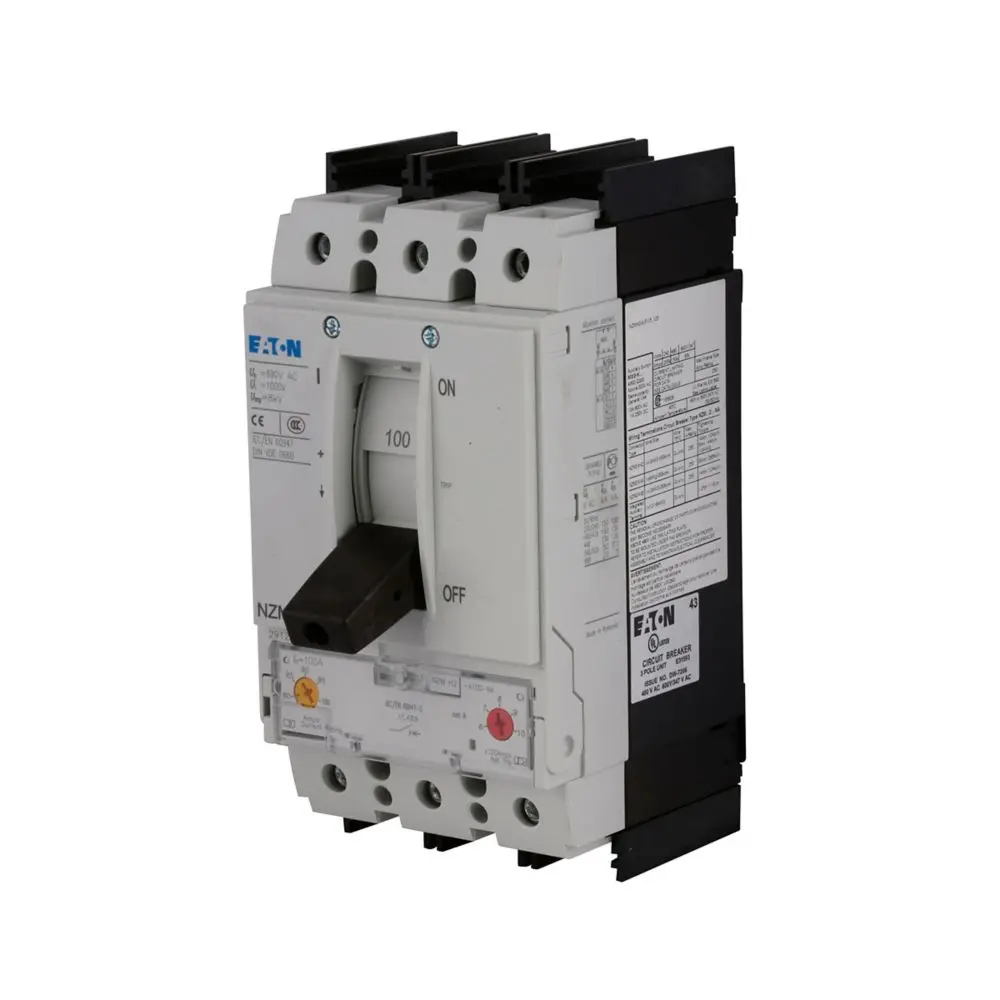

The Eaton NZMN1-AF15-NA is a 15A, 3-pole molded case circuit breaker (MCCB) designed for reliable circuit protection in commercial and industrial applications. It features a fixed thermal-magnetic trip unit providing both overload and short-circuit protection, with a thermal setting at 15A and a magnetic trip at 350A. The breaker supports a rated voltage of up to 600V AC and offers high interrupting capacity: 85kA at 240V, 35kA at 480V, and 25kA at 600V. The NZMN1-AF15-NA is built with a robust 160AF frame, features a toggle operation mode, and utilizes a cage clamp/box connection. It complies with IEC/EN 60947, VDE0660, UL489, and CSA standards.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton |
|---|---|
| Model | NZMN1-AF15-NA |
| Series | NZM1-NA |
| Product Type | Moulded Case Circuit Breaker (MCCB) |
| Amperage | 15A |
| Poles | 3 Pole(s) |
| Trip Type | Thermal-Magnetic (Fixed) |
| Operator | Toggle |
| Frame Size | 160 AF |
| Order Code | 281564 |
| Manufacturer Product Status | Commercialized |
| Rated Voltage (AC) | 600 V |
|---|---|
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Impulse Voltage (Uimp) | 6 kV |
| Interrupting Capacity | 85kA (240V AC), 35kA (480V AC), 25kA (600V AC) |
| Protection Functions | Thermal (Overload), Magnetic (Short-Circuit) |
| Overload Protection Setting | Fixed at 15A |
| Short-Circuit Pickup | Fixed at 350A |
| Connection Type | Cage clamp / box (for bare cable) |
| Network Frequency | 60 Hz |
| Electrical Durability | 20,000 operations (with load) |
| Degree of Pollution | 3 |
| Certifications | IEC/EN 60947, VDE0660, UL489, CSA C22.2 No.5-09 |
